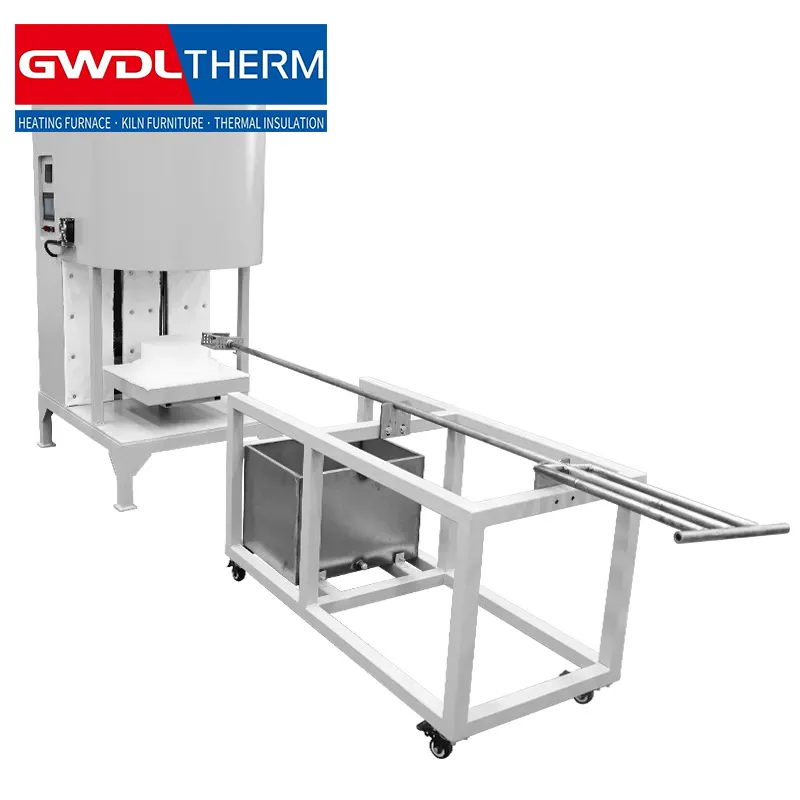

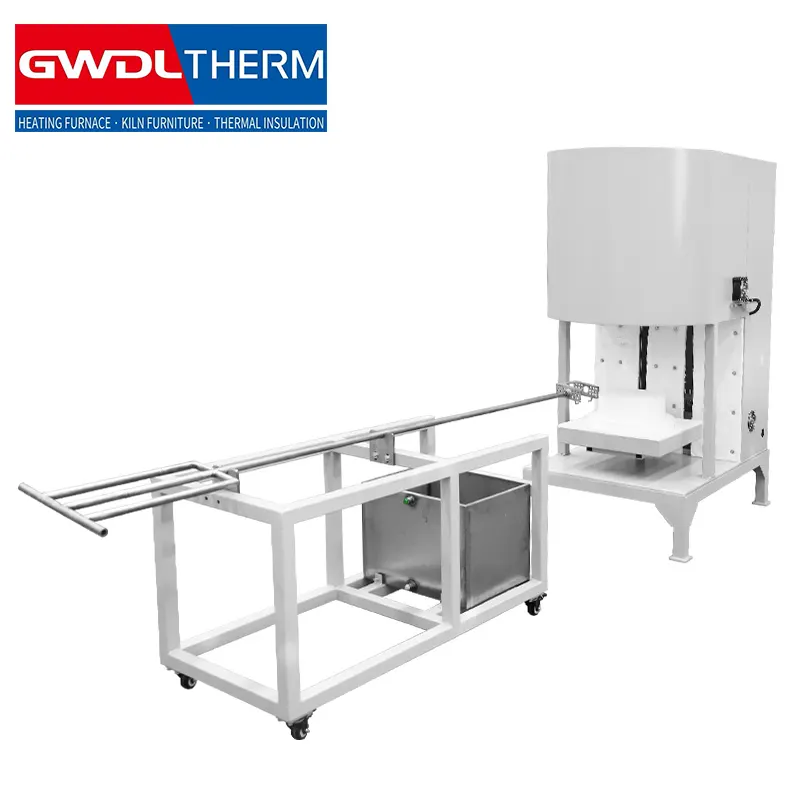

1700°C Small Lift-Hearth Furnace with Console

describe

The 1700°C compact lift-hearth electric furnace with integrated control console delivers precise high-temperature processing, rapid heating, and convenient operation for sintering, calcination, and advanced material research.

Product Features

Furnace Body Structure

The furnace adopts an advanced double-layer air-cooled body structure designed to enhance operational safety, thermal efficiency, and equipment durability. Strategically positioned air-guiding baffles create a continuous cooling airflow throughout the furnace shell, ensuring efficient heat dissipation during high-temperature operation.
The circulating cooling air effectively removes excess heat from critical electrical connection points and conductive tabs of the heating elements before being discharged from the furnace body. This optimized cooling process significantly reduces the risk of high-temperature oxidation, helping maintain stable electrical performance and extending the service life of key heating components.
In addition to protecting internal components, the air-cooled structure lowers the external surface temperature of the furnace, creating a safer and more comfortable working environment for operators. The efficient thermal management system also improves equipment reliability, minimizes maintenance requirements, and supports long-term stable operation. This design makes the furnace particularly suitable for demanding laboratory research, material development, sintering, and industrial heat treatment applications requiring continuous high-temperature performance.

Protect

The furnace is equipped with an integrated modular control system designed to deliver high-precision temperature regulation and exceptional operational reliability. The advanced control architecture improves response speed and control accuracy, ensuring stable thermal performance throughout the entire heating process.
A dual-loop control and protection design continuously monitors critical operating parameters and automatically adjusts system output to maintain optimal performance. This intelligent system effectively prevents temperature overshoot and undershoot, ensuring accurate process execution and improved product consistency.
Comprehensive protection functions include thermocouple break detection, phase-loss protection, overvoltage protection, overcurrent protection, overtemperature protection, current feedback monitoring, and soft-start protection. These safety mechanisms help safeguard heating elements, electrical components, and furnace structures from unexpected operating conditions.
By combining precise control with multi-layer safety protection, the system enhances process stability, reduces equipment downtime, extends component service life, and ensures safe operation in demanding laboratory and industrial high-temperature applications. The integrated modular design also simplifies maintenance and improves long-term operational efficiency.

control

The furnace adopts an advanced SCR closed-loop power control system that supports both phase-shift and zero-crossing triggering methods, enabling continuous and precise adjustment of voltage, current, and power output. The system can operate in constant-voltage, constant-current, or constant-power modes, providing flexible control for a wide range of high-temperature processing applications.
A dual-loop regulation architecture is utilized, with the current loop serving as the inner control loop and the voltage loop functioning as the outer control loop. This intelligent design allows the system to respond rapidly to load fluctuations, ensuring stable and accurate power delivery throughout the heating process.
When sudden load changes occur or current demand exceeds the preset limit, the controller automatically restricts the output current within the rated operating range. Simultaneously, the voltage loop participates in dynamic regulation to maintain stable operating conditions and prevent excessive electrical stress on critical components.
This protection mechanism effectively safeguards heating elements from overcurrent and overvoltage damage, extending service life and improving overall system reliability. By combining high-speed response, precise regulation, and comprehensive electrical protection, the control system delivers exceptional heating accuracy, enhanced process stability, reduced maintenance requirements, and safe long-term operation for demanding laboratory and industrial thermal applications.

Configuration List

Serial Number	project	name	Classification						factory	Remark
Serial Number	project	name	1200 degrees	1400 degrees	1600 degrees	1700 degrees	1800 degrees	1900 degrees	factory	Remark
1	shell	Double-layer shell	●	●	●	●	●	●	Juxing Kiln
2	heating element	electric heater	High-temperature alloy resistance wire	silicon carbide rods	silicon molybdenum rod	1800 type silicon molybdenum rod	1850 type silicon molybdenum rod	1900 type silicon molybdenum rod	Juxing Kiln
3	Electrical control section	Temperature controller	858P	858P	858P	858P	858P	858P	Xiamen Yudian
4		thermocouple	K	S	B	B	B	B+ fiber	Taisho/Guangming
5		Voltmeter	●	●	●	●	●	●	Chint
6		ammeter	●	●	●	●	●	●	Chint
7		SCR power regulator	●	●	●	●	●	●	Juxing Kiln
8		contactor	●	●	●	●	●	●	Chint/Delixi
9		circuit breaker	●	●	●	●	●	●	Chint/Delixi
10		Button	●	●	●	●	●	●	Chint/Delixi
11		buzzer	●	●	●	●	●	●	Chint/Delixi
12		Fast melting	●	●	●	●	●	●	Mingrong
13		transformer	○	○	●	●	●	●	Juxing Kiln
14	Refractory and heat-insulating furnace	Ceramic fiberboard/module	1260	1500	1700	1800	1850	Zirconia fiber 2100	Juxing Kiln
15		Insulating bricks at the furnace opening (inner door)	○	●	●	●	●	●	Juxing Kiln
16		Sintering plate	Quartz ceramics	Quartz ceramics	Corundum Mullite	Corundum Mullite	Corundum Mullite	Zirconia fiber 2100	Juxing Kiln

Application Areas

Advanced Ceramic Processing

Ideal for sintering structural ceramics, electronic ceramics, zirconia products, alumina components, and other high-performance ceramic materials requiring temperatures up to 1700°C.

Material Research & Development

Widely used in universities, laboratories, and research institutes for crystal growth, rare earth materials, refractory materials, catalyst development, and new energy material studies.

High-Temperature Heat Treatment

Suitable for powder metallurgy, metal annealing, special alloy processing, electrode material preparation, and precision thermal treatments requiring accurate temperature control and uniform heating.

Why Choose Us

Precise temperature control with stable high-temp performance
Intelligent energy-saving design with long service life
Customizable solutions with professional technical support

FAQ

Q1: What is the maximum operating temperature of this furnace?

A: The furnace supports a maximum temperature of 1700°C, ensuring stable high-temperature performance for advanced material processing and research applications.

Q2: What applications is this lift-hearth furnace suitable for?

A: It is widely used in ceramic sintering, powder metallurgy, crystal growth, rare earth materials, and high-temperature laboratory experiments.

Q3: Does the furnace include intelligent temperature control?

A: Yes, it is equipped with an integrated control console featuring precise programmable temperature control for accurate heating curves.

Q4: What advantages does the lift-hearth structure provide?

A: The lift-hearth design ensures safe loading/unloading, excellent temperature uniformity, and improved operational efficiency during high-temperature processes.
