The GWDL-1000KQGA Tilting Rotary Tube Furnace is designed with a rotating and tilting furnace tube, three independent temperature zones, and an adjustable heating rate. It features a quartz glass furnace tube, adjustable rotation speed, adjustable inclination angle, and programmable temperature control.
以下根据你上传的《倾斜回转管式炉 GWDL-1000KQG 技术资料》整理为可直接提供给国外客户的全英文技术规格书（Technical Specifications）。保留原文件中的型号、数值、单位及技术信息，不额外添加技术参数；对原文中未完整显示的内容，不擅自补充。
1000度倾斜旋转管式炉 VOC尾气净化炉 技术指标 .docx

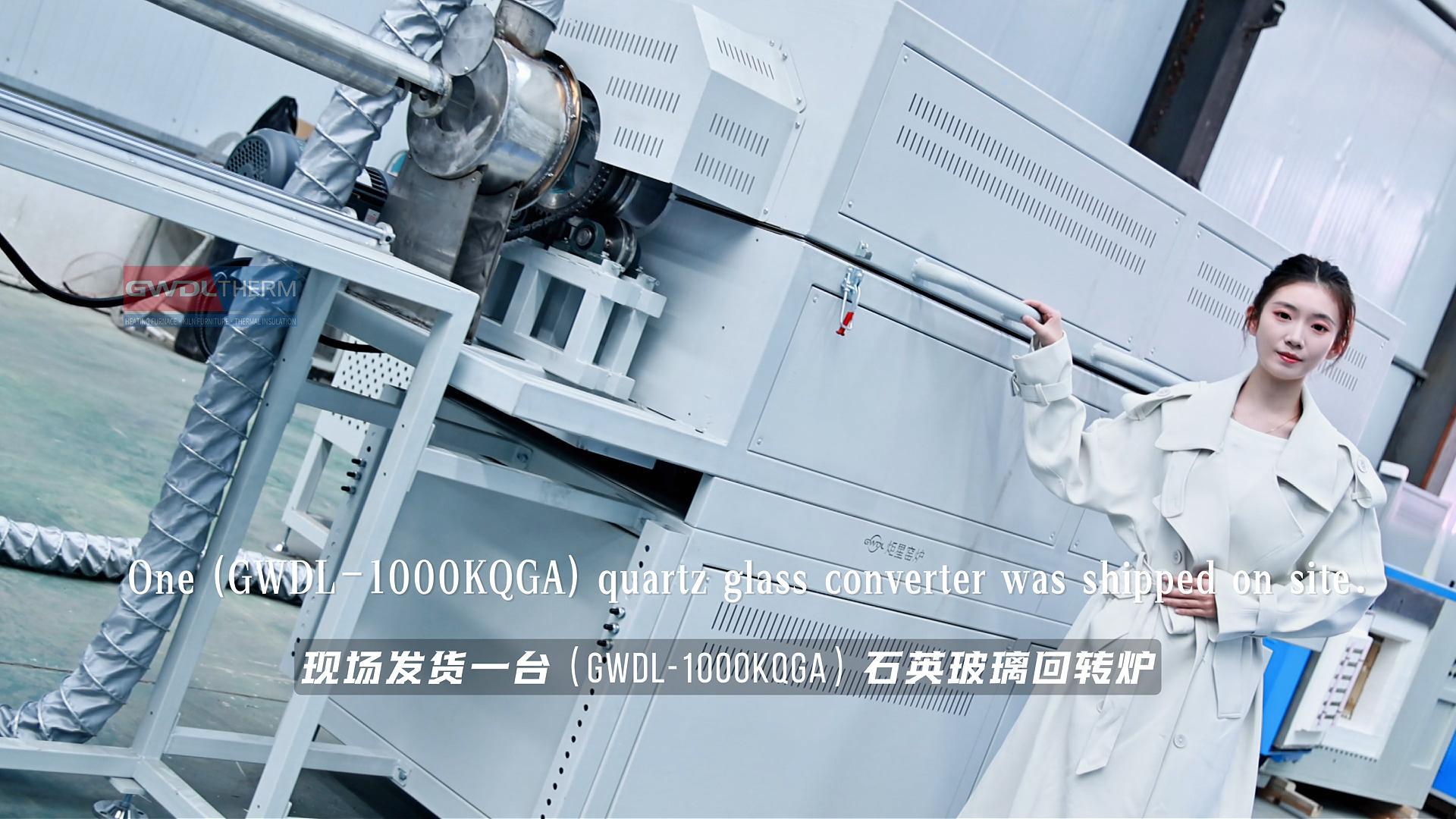

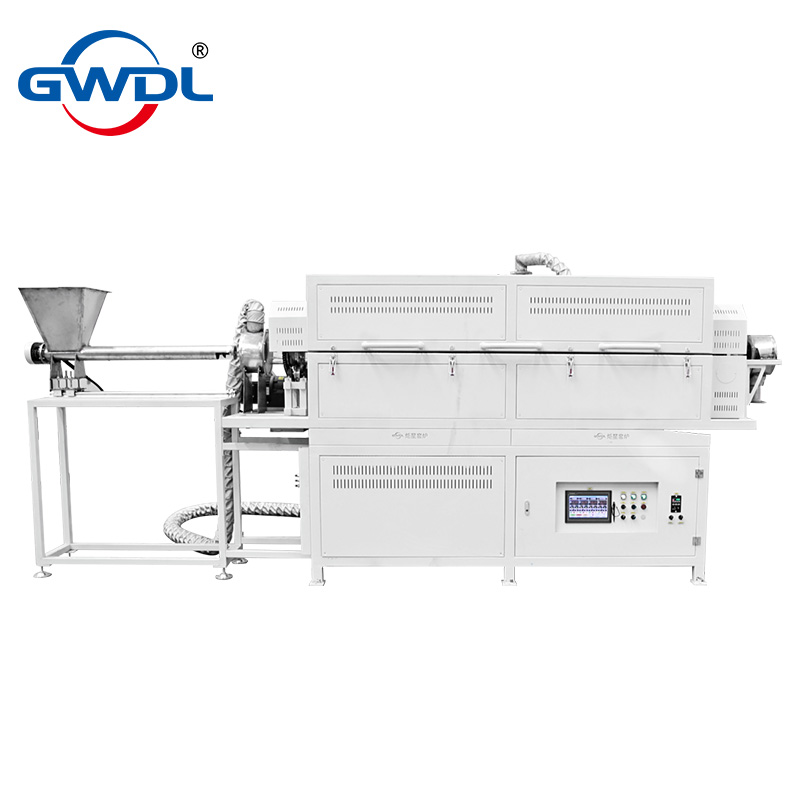

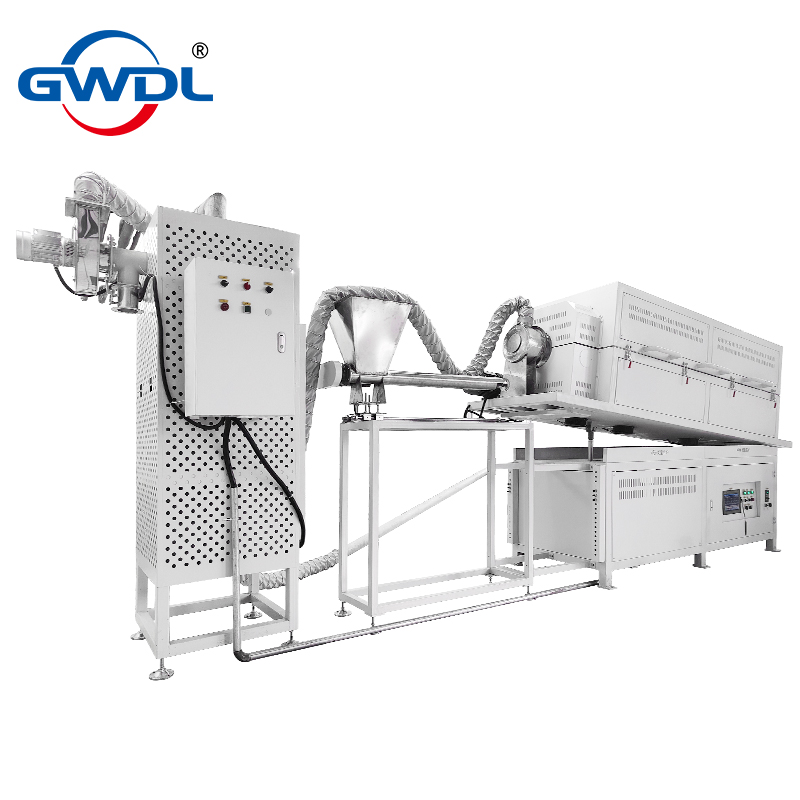

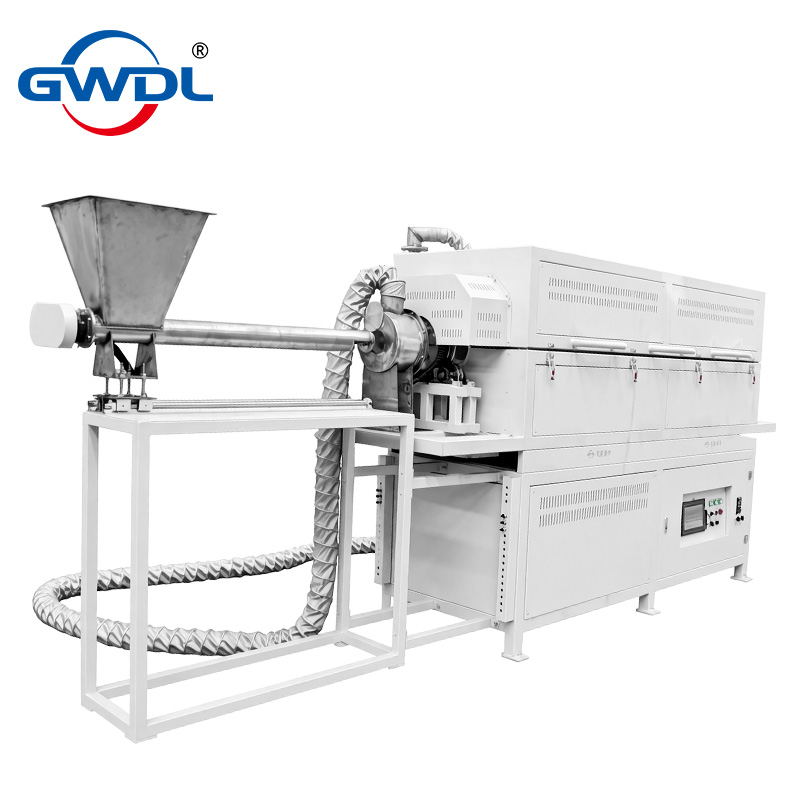

Technical Specifications | Model: GWDL-1000KQGA
| Item | Technical Specifications |
|---|---|
| Equipment Model | GWDL-1000KQGA |
| Equipment Type | Tilting Rotary Tube Furnace |
| Power Supply | AC 380 V |
| Rated Power | 60 kW |
| Maximum Operating Temperature | 1000°C |
| Continuous Operating Temperature | 1000°C |
| Temperature Control Range | 80–1200°C |
| Heating Zone Length | 2000 mm |
| Number of Temperature Zones | 3 independent temperature zones, each with independent temperature control |
| Furnace Tube Structure | Ø150 mm at both ends, Ø400 mm in the middle section, heating zone length of 2000 mm |
| Furnace Tube Material | Quartz glass tube, 10 mm thick |
| Heating Elements | High-temperature resistance wire, arranged above and below the furnace tube |
| Feeding Method | Batch feeding |
| Feeding System | 1 |
| Furnace Tube Rotation Speed | 1–15 r/min, adjustable |
| Furnace Tube Inclination Angle | 1–15°, adjustable |
| Protective Gas Flowmeters | 2 float flowmeters |
| Temperature Sensor | Type K thermocouple, temperature measurement range: 0–1320°C |
| Temperature Control Accuracy | ±1°C |
| Furnace Temperature Uniformity | ±8°C (depending on furnace chamber dimensions) |
| Heating Rate | Maximum: 20°C/min; minimum: 1°C/h, adjustable (non-linear heating) |
| Exhaust Gas Incinerator Treatment Capacity | 40 m³/h |
The furnace body is manufactured using CNC machine tools and undergoes polishing, grinding, acid pickling, phosphating, powder coating, and high-temperature baking. It features a two-tone design and a modern, attractive appearance.
The furnace body offers the following properties:
The electric furnace adopts an air-cooled, double-layer furnace body structure. Air-guiding partitions ensure that cooling air circulates throughout the furnace shell. The cooling air then passes over the conductive plates of the heating elements before being discharged from the furnace body.
This design helps prevent high-temperature oxidation of the conductive plates of the heating elements and maintains a suitable working environment.
The furnace lining is made of vacuum-formed, high-purity lightweight alumina material.
Lightweight hollow-sphere alumina boards are used in areas prone to contact during material loading and unloading, including the furnace opening and furnace bottom.
The refractory materials feature:
The equipment uses an integrated modular control unit with accurate control precision. Dual-loop control and dual-loop protection are incorporated.
The protection functions include:
The system uses closed-loop thyristor module triggering with phase-shift triggering control. The output voltage, current, or power can be continuously adjusted.
The system supports constant-voltage, constant-current, or constant-power operation.
The current loop serves as the inner loop, while the voltage loop serves as the outer loop. When a sudden load is applied or the load current exceeds the current limit, the output current of the voltage regulator is limited to the rated current range.
The voltage loop also participates in regulation to maintain stable output current and voltage within the available control margin.
This control method helps protect the heating elements against excessive current and voltage impacts, ensuring safe and reliable operation and control accuracy.
The system displays the following parameters:
The equipment uses an intelligent temperature controller with multiple control methods, including standard PID, artificial intelligence adjustment (APID), and MPT.
The controller features self-tuning and self-learning functions, with control characteristics designed to minimize overshoot and undershoot.
It supports 30-segment program control and allows heating and cooling at arbitrary rates.
Programmable and operational commands include:
The program can be modified at any time during program-controlled operation.
An artificial intelligence control algorithm with curve-fitting capability provides smooth temperature profile control.
The system supports 50-segment program control with the following configurations:
| Temperature Profile Configuration | Number of Segments |
|---|---|
| One temperature profile | 50 segments |
| Two temperature profiles | 28 segments per profile |
| Three temperature profiles | 15 segments per profile |
| Five temperature profiles | 9 segments per profile |
Multiple temperature profiles can be entered simultaneously and selected for use as required.
The electric furnace is covered by a one-year free warranty.
Heating elements are excluded from the warranty. Heating elements that suffer natural damage within three months will be replaced free of charge.
Company Name: Luoyang Ju Xing Kiln Co., Ltd.
Address: No. 1, Xingye 1st Road, Science and Technology Industrial Park, Jianxi District, Luoyang City, Henan Province, China
Contact Numbers: 13271526781 / 0379-69936789
Email: thermo@gwdl.com
Websites:
