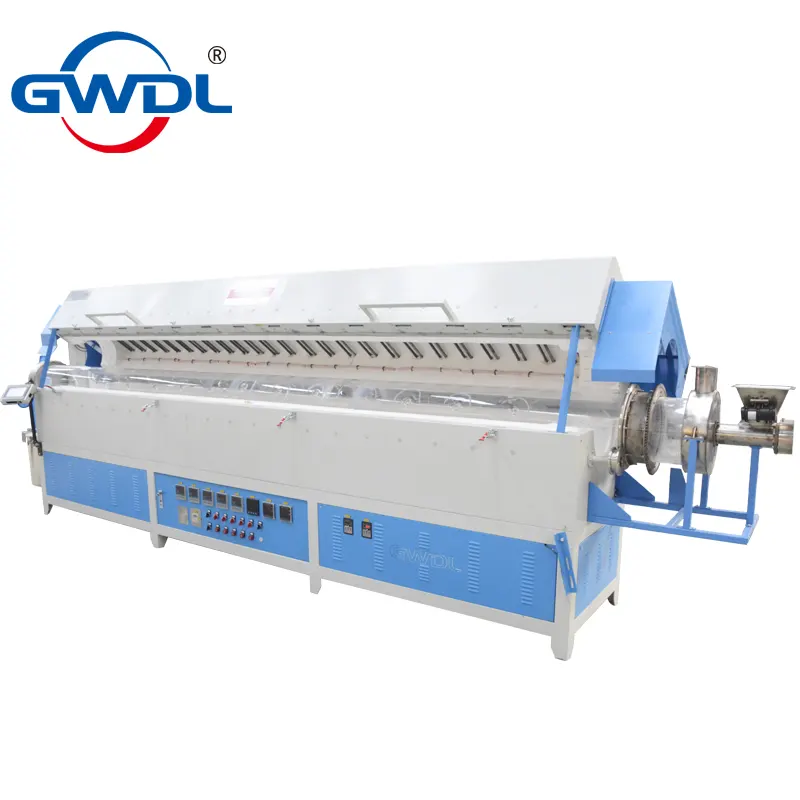

Dust-Free Heating Design The furnace adopts silicon carbide heating rods protected by quartz glass tubes, ensuring that the heating elements are completely isolated from the material flow.

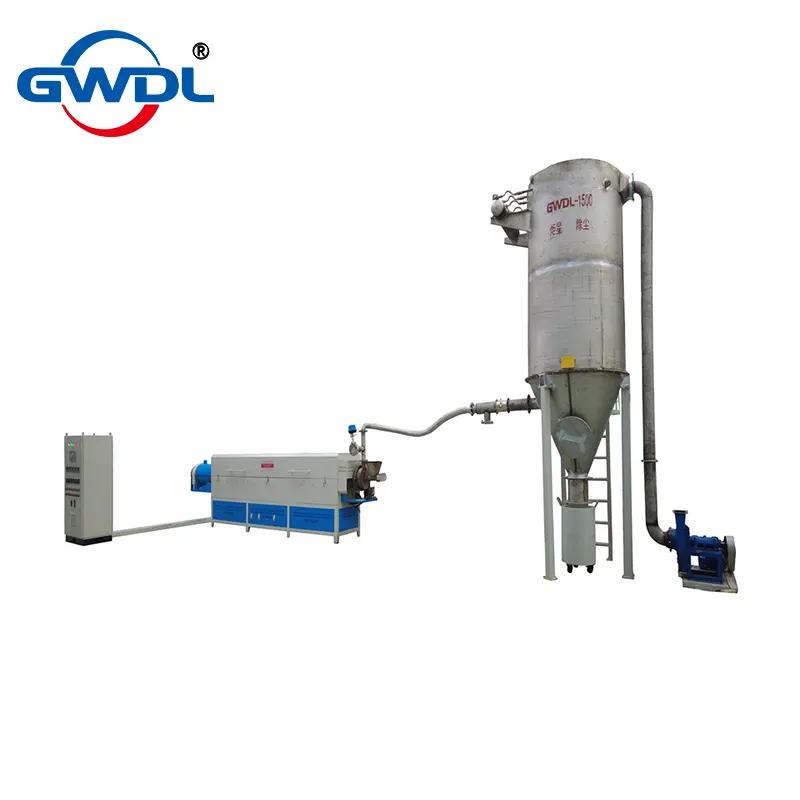

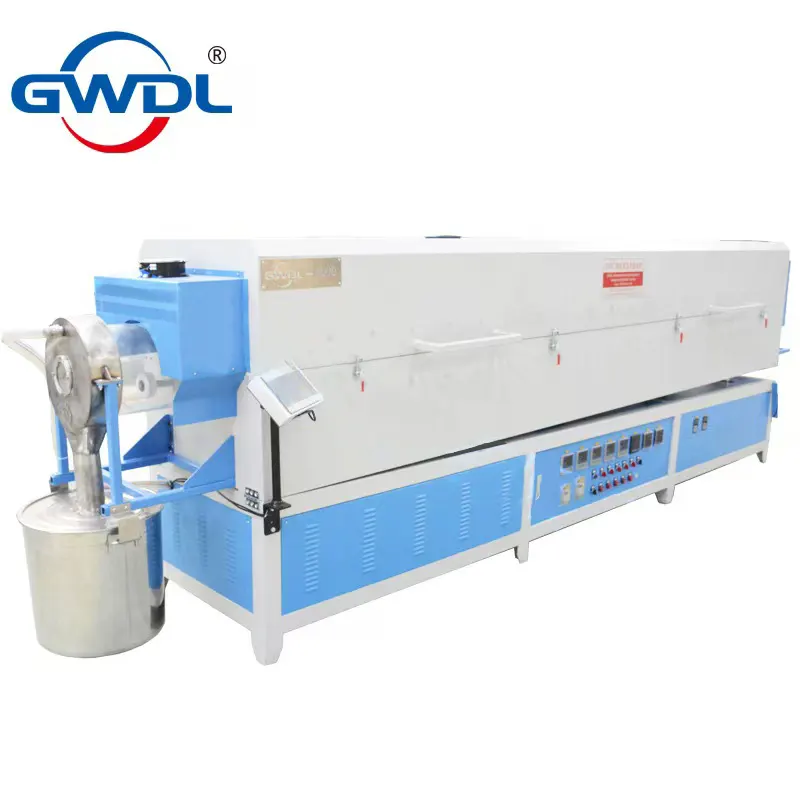

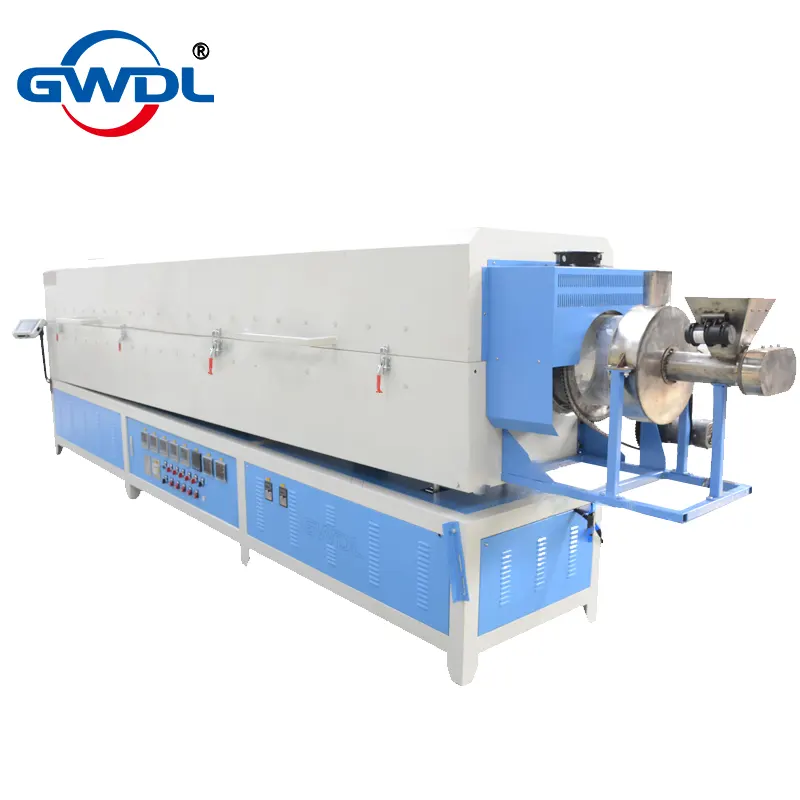

The high-purity powder rotary calcination furnace is designed for continuous calcination and sintering of ceramic, metallurgical, electronic, glass, chemical, refractory, and new material powders. The system adopts a split design of control unit and furnace chamber, ensuring stable operation and ease of maintenance.
The furnace is built with vacuum-formed alumina fiber lightweight insulation board and high-temperature silicon carbide heating elements, offering long service life and high thermal efficiency. It features a touch-screen intelligent control panel with programmable temperature curves, automatic heating/cooling, anti-interference protection, and an outer shell temperature below 45℃ for operator safety.
This rotary kiln is widely applied in ceramics, metallurgy, electronics, glass, chemicals, machinery, refractories, and advanced material R&D.
| Item | Parameter |
|---|---|
| Model | GWDL-1150SSR |
| Power supply | 3-phase, 5-wire, 380V AC |
| Dimensions | 5000 × 1000 × 1550 mm |
| Max. temperature | 1250℃ |
| Continuous working temp. | 1150℃ |
| Control range | 80–1250℃ |
| Thermocouple | K-type (0–1320℃) |
| Heating elements | Silicon carbide rods (protected by quartz tube) |
| Heating position | Upper & lower furnace tube |
| Temperature accuracy | ±1℃ |
| Control zones | 3 independent (Left / Center / Right) |
| Heating rate | 1℃/h to 30℃/min adjustable |

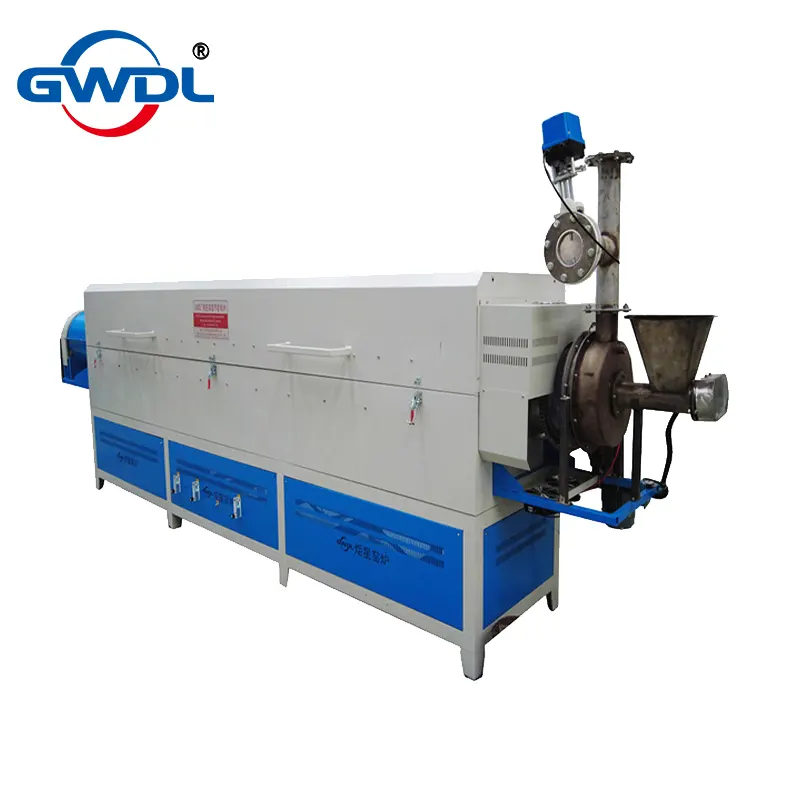

| Feeding system | 316L stainless steel screw feeder, 50L hopper |
| Discharging system | 500mm cooling device, outlet temp. ≤80℃ |
| Tilt angle | 10° |
| Rotation speed | 1–5 r/min adjustable |
| Refractory material | High-purity alumina lightweight material |
| Insulation | Alumina ceramic fiber blocks |
| Furnace cooling | Air-cooled structure with circulation |
| Outer shell temp. | ≤45℃ |
| Safety protection | Over-temp, over-current, over-voltage, phase loss, surge, overshoot |
| Control mode | Closed-loop SCR, constant voltage / current / power |
| Display | Temp., segment, time, power, voltage, current |
| Program capacity | Up to 50 segments, multi-curve supported |
| Lifespan | Button switches >100,000 times with LED indicators |
