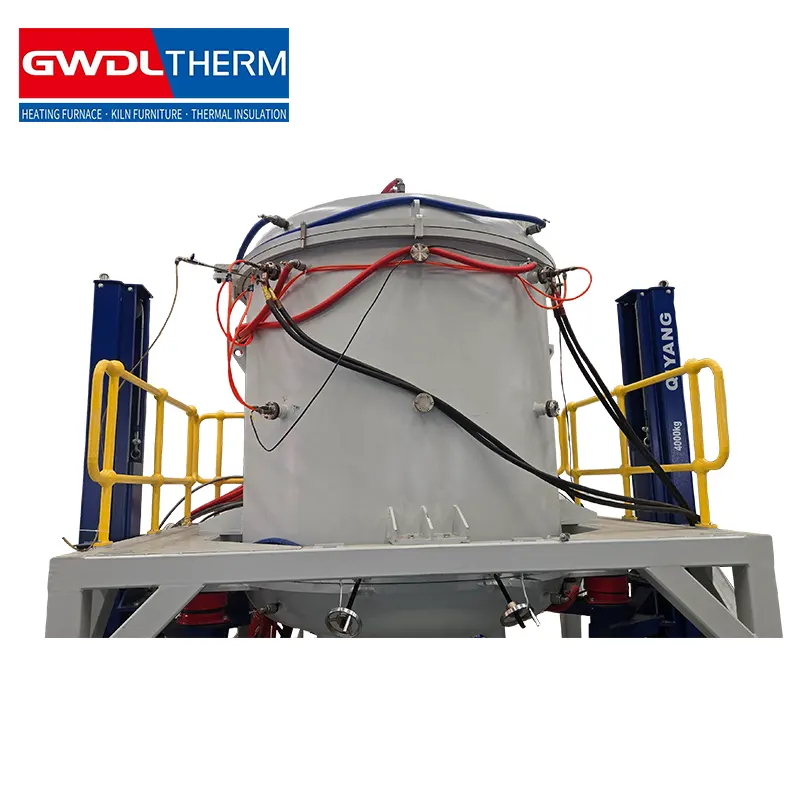

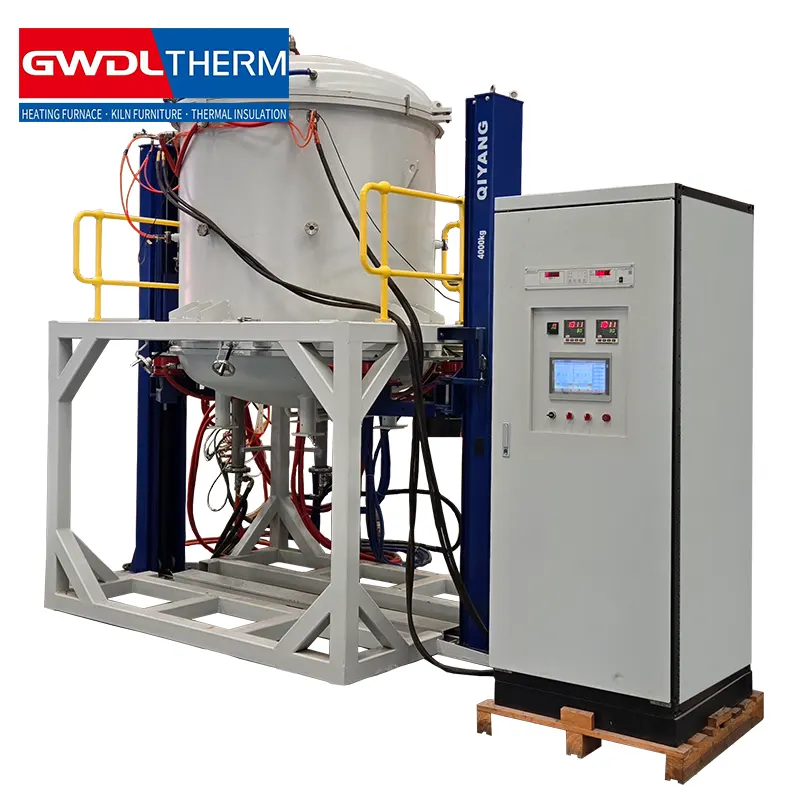

1800°C VSF Vacuum Annealing Furnace for High-Temperature Heat Treatment

name

Specifications and Models

Furnace dimensions (length, width, height) in mm

External dimensions (mm)

Voltage ACV

power kW

weight (kg)

Vacuum atmosphere box furnace

GWL-ZQLB/200/150/150

200×150×150

700×650×1500

380

5

360

GWL-ZQLB/300/200/200

300×200×200

800×750×1550

380

12

520

GWL-ZQLB/400/200/200

400×200×200

900×750×1550

380

13

550

GWL-ZQLB/500/300/200

500×300×200

1000×850×1550

380

15

620

GWL-ZQLB500/300/300

500×300×300

1000×850×1650

380

18

750

GWL-ZQLB/600/400/400

600×400×400

1150×1000×1800

380

twenty four

900

GWL-ZQLB/800/500/500

800×500×500

1700×1700×1900

380

35

1150

GWL-ZQLB/1000/700/600

1000×700×600

1700×1500×2000

380

55

1800

Note:

1. Special furnace chamber dimensions can be customized according to customer requirements (delivery time 17-30 days)!

2. Dimensions are in millimeters (mm). The dimensions shown are for reference only and the actual dimensions shipped from the factory shall prevail.
