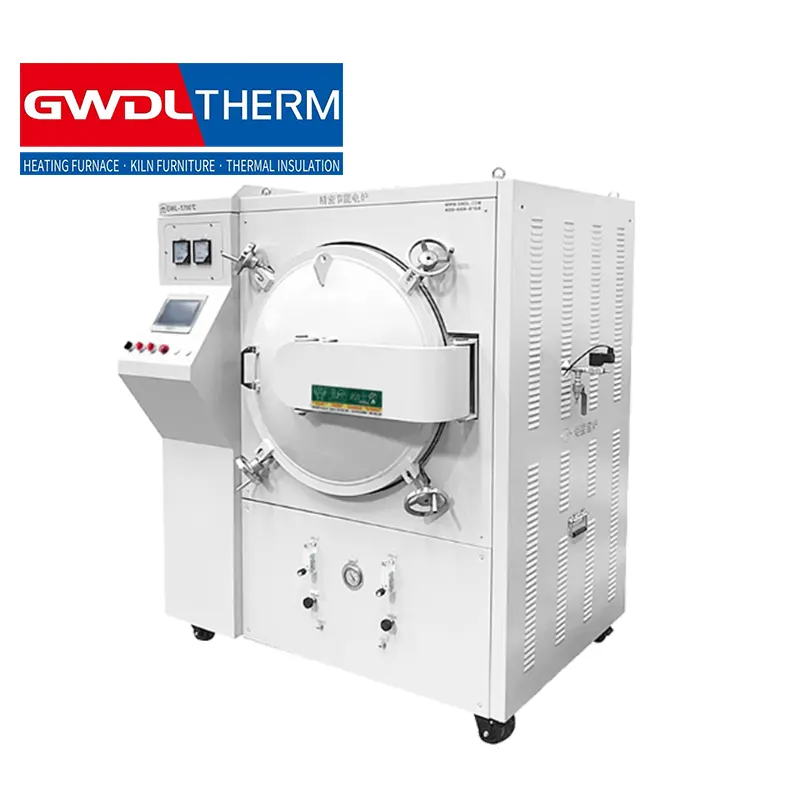

The 2100°C vacuum atmosphere furnace is designed for ultra-high temperature processing under controlled vacuum or gas conditions. Suitable for advanced materials, ceramics, and research applications.
temperature project | 2100℃ |
model | GWDL-2100VAF |
Common temperature | 2100 degrees |
High temperature working condition | When the temperature is above 1600 degrees, the pressure inside the furnace is kept at 100-1000 Pa by controlling the argon flow rate to prevent the heating element and high-temperature reflector from evaporating! |
Voltage AC | 380V |
Design power | 18KW |
Furnace chamber dimensions (mm) | Depth × Width × Height: 300 × 160 × 160 (Effective thermal field) |
Temperature control accuracy | ±1℃ (integrated circuit control, no overshoot) |
The control range is | 50 to 2100 degrees |
