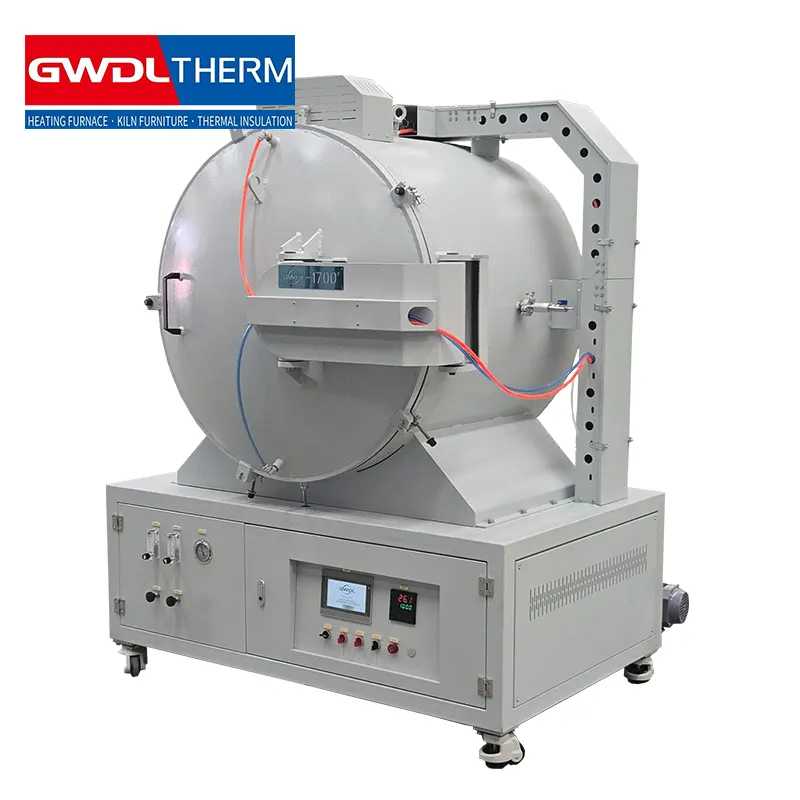

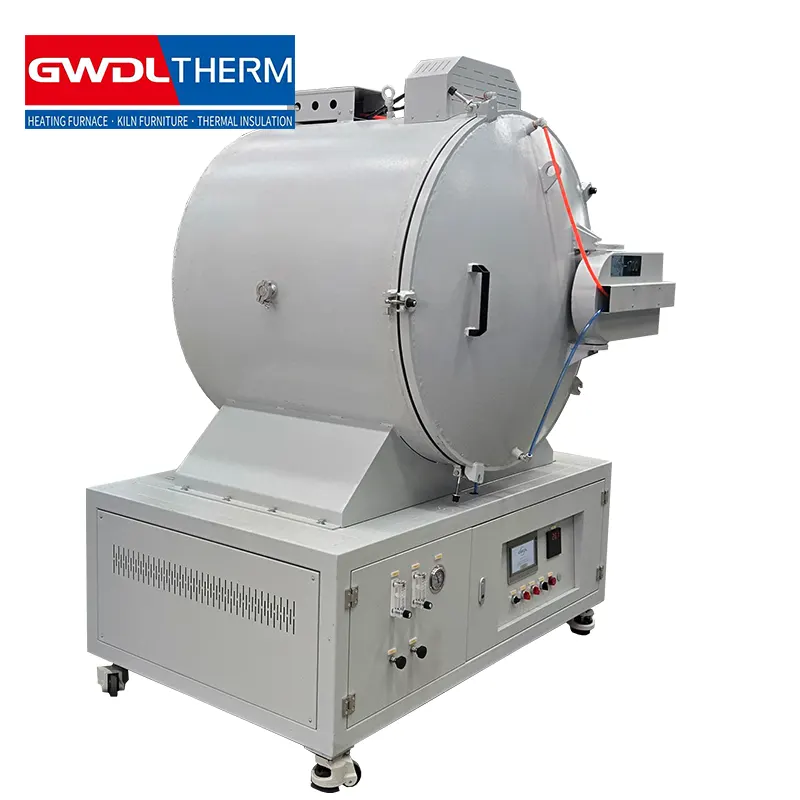

1700°C VSF Vacuum Atmosphere Sintering Furnace for Advanced Materials

name

Specifications and Models

Furnace dimensions (length, width, height) in mm

External dimensions (mm)

Voltage ACV

power kW

weight (kg)

Vacuum atmosphere box furnace

GWL-ZQLB/200/150/150

200×150×150

700×650×1500

380

5

360

GWL-ZQLB/300/200/200

300×200×200

800×750×1550

380

12

520

GWL-ZQLB/400/200/200

400×200×200

900×750×1550

380

13

550

GWL-ZQLB/500/300/200

500×300×200

1000×850×1550

380

15

620

GWL-ZQLB500/300/300

500×300×300

1000×850×1650

380

18

750

GWL-ZQLB/600/400/400

600×400×400

1150×1000×1800

380

twenty four

900

GWL-ZQLB/800/500/500

800×500×500

1700×1700×1900

380

35

1150

GWL-ZQLB/1000/700/600

1000×700×600

1700×1500×2000

380

55

1800

Note:

1. Special furnace chamber dimensions can be customized according to customer requirements (delivery time 17-30 days)!

2. Dimensions are in millimeters (mm). The dimensions shown are for reference only and the actual dimensions shipped from the factory shall prevail.
