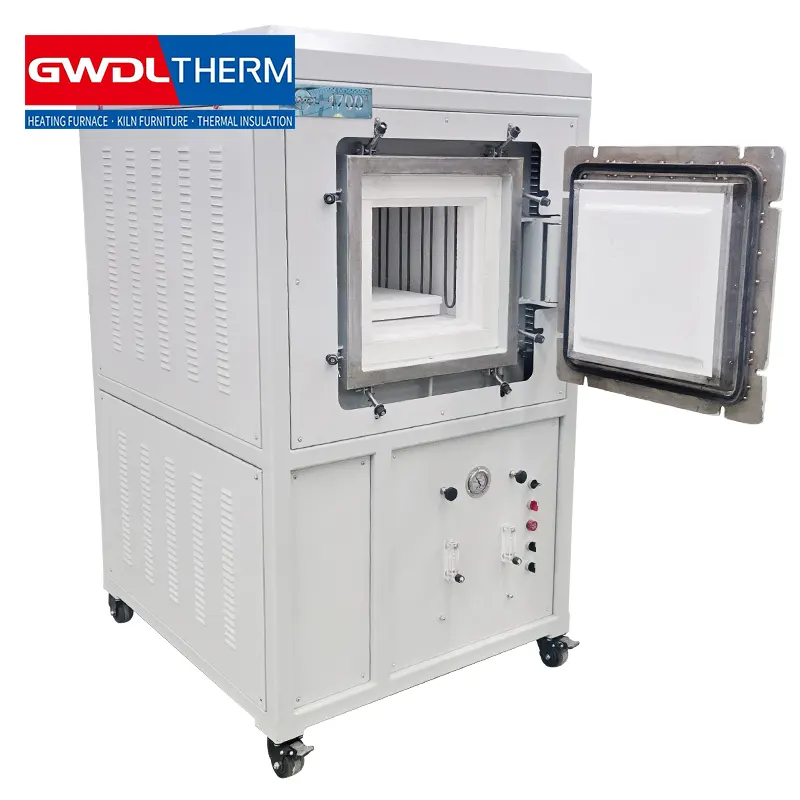

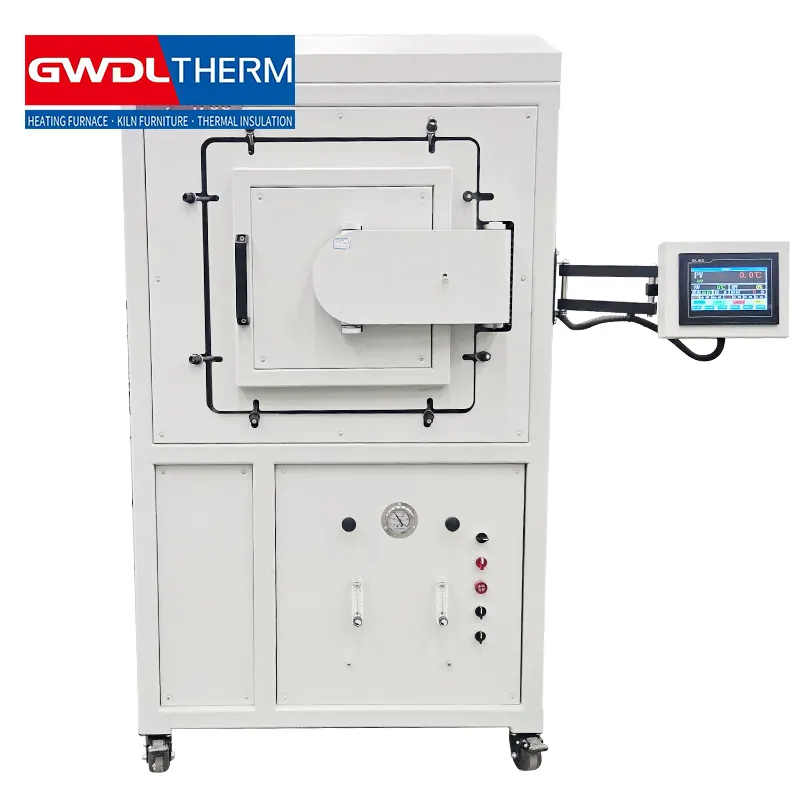

1700°C Vacuum Atmosphere Box Furnace

AC power：380V

Maximum operating temperature：1750 degrees

Long-term operating temperature：1700 degrees

The control range is：50 to 1700 degrees

Temperature sensing element：Thermocouple type B, temperature range 0-1820 degrees Celsius

Temperature control accuracy：±1 degree (integrated circuit control, no overshoot)

Download PDF

name	Specifications and Models	Furnace dimensions (length, width, height) in mm	External dimensions (mm)	Voltage ACV	power kW
Vacuum atmosphere box furnace	GWL-1700ZQLB/800/500/500	800×500×500	1700×1700×1900	380	35
Vacuum atmosphere box furnace	Trace oxygen analyzer	PPM	0-500PPM
Note:	1. Special models of furnace chamber dimensions can be customized according to customer requirements (delivery time 17-30 days)! 2. Dimensions are in millimeters (mm). The dimensions shown are for reference only; the actual dimensions shipped from the factory shall prevail.
