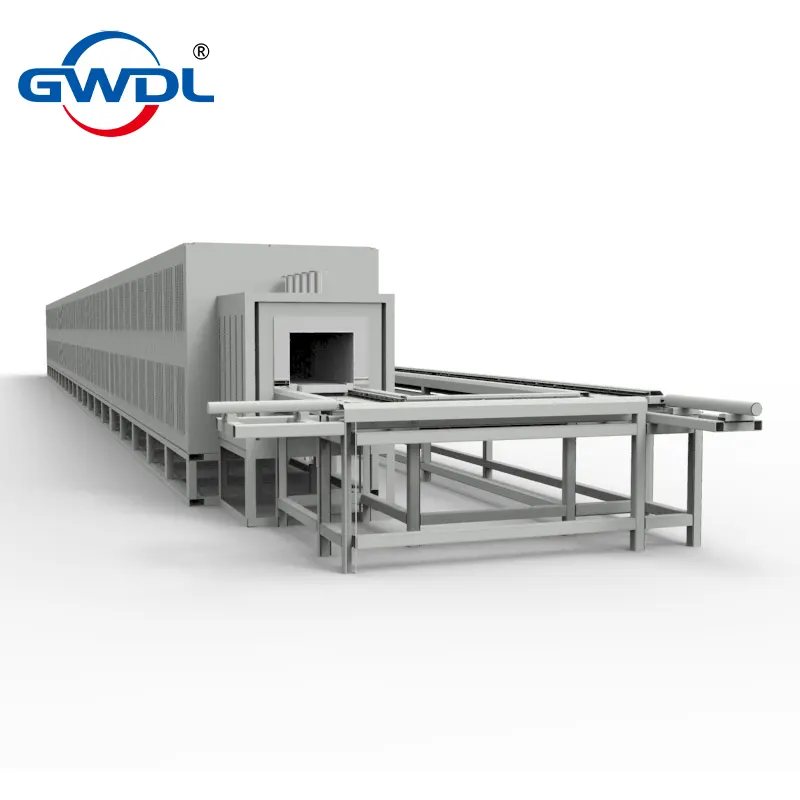

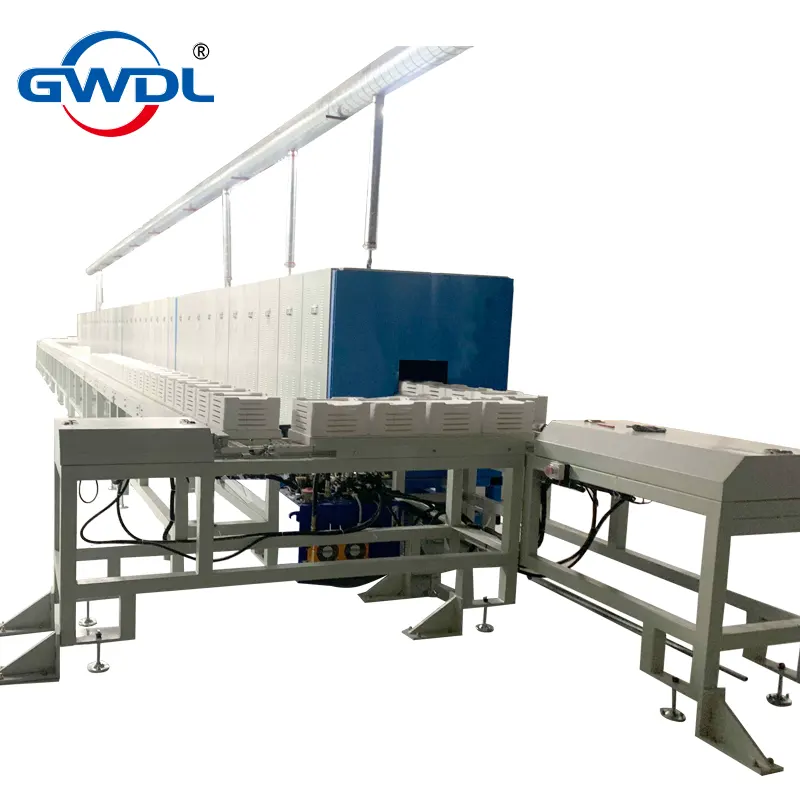

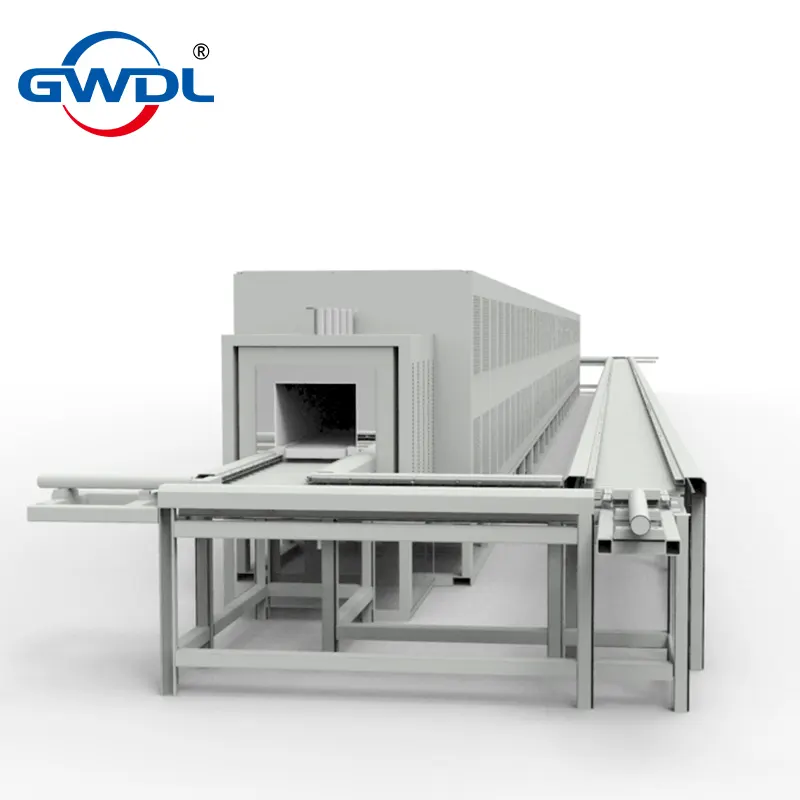

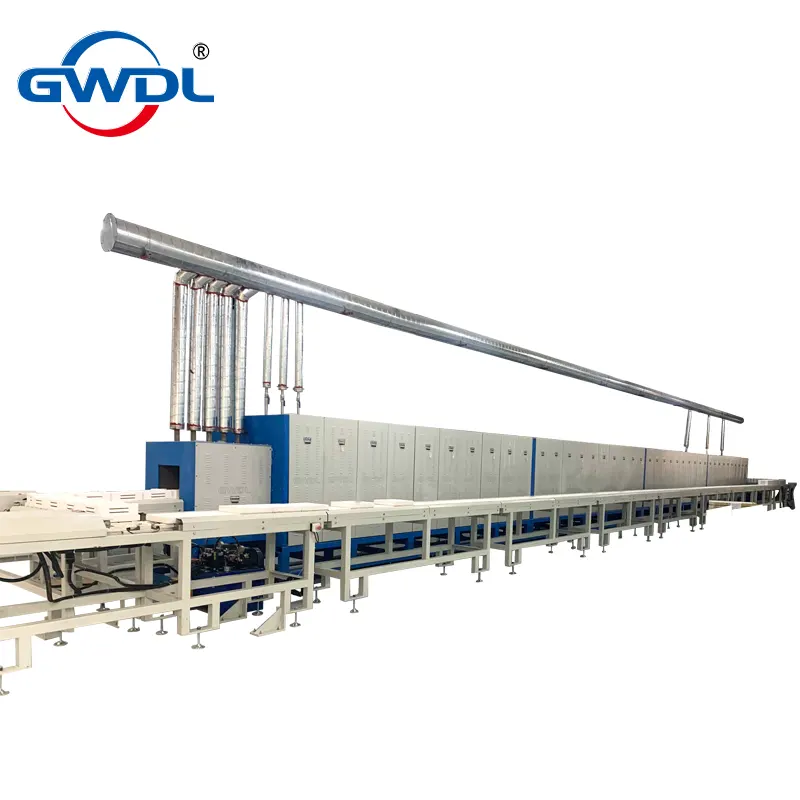

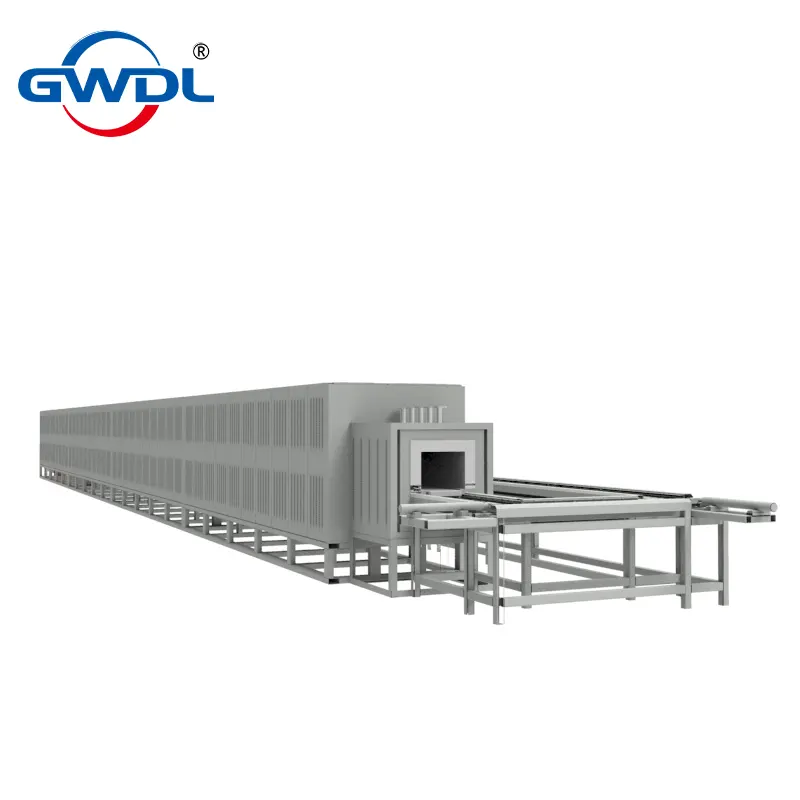

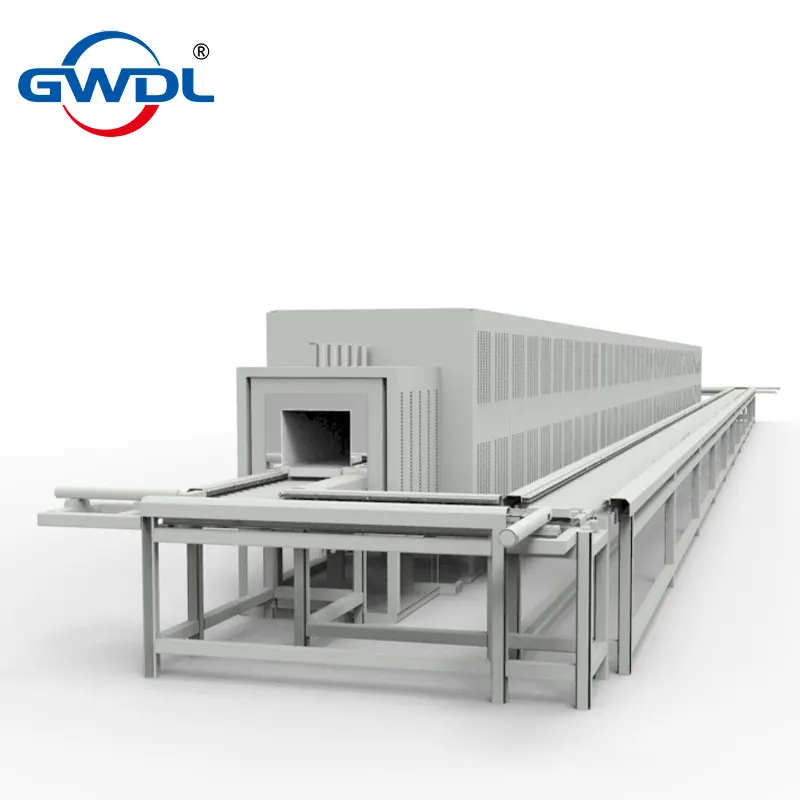

24m Continuous Pusher Plate Sintering Furnace for Ceramic Materials

This 24-meter pusher plate sintering furnace is specially designed for the continuous high-temperature sintering of porous ceramic materials, such as those used in electronic cigarettes. Featuring a 1500℃ maximum temperature, 14 precise heating zones, and a hydraulic-driven pusher system, the furnace ensures stable temperature uniformity and efficient automation. It supports long-duration sintering cycles with fine-tuned thermal control and high material throughput.

Features Overview

• Multi-Zone Precision Heating: 14 independently controlled temperature zones using imported PID instruments and SCR modules provide exact thermal curves for complex sintering processes.
• 1500℃ Max Temperature: Capable of advanced sintering operations including multi-stage heating and holding phases.
• Hydraulic Pusher Plate System: Hydraulic cylinder-driven feed rate adjustment (400–1200 mm/h) with max thrust ≤10T and fast feed speeds up to 2000 mm/min ensures stable continuous feeding.
• Robust Thermal Insulation: Multi-layer refractory insulation structure combining high alumina brick, mullite bricks, foam bricks, and alumina fiber boards.
• Exhaust & Inlet Systems: Equipped with 8 ceramic exhaust chimneys and 6 forced air intake assemblies with dust filtration and adjustable flow.
• Advanced Control System: Siemens PLC + touchscreen control panel enables real-time monitoring, 50-segment temperature curve programming, historical data storage, and remote communication.
• Safety Design: Built-in alarms for over-temperature, tray misalignment, travel overrun, and thermocouple failure.
• Modular Assembly: Furnace is divided into 8 segments for modular transport, installation, and thermal expansion independence.

Technical Specifications
