Designed for fire assay processes, these clay crucibles and ash dishes offer high-temperature resistance, stable performance, and reliable results in precious metal analysis.

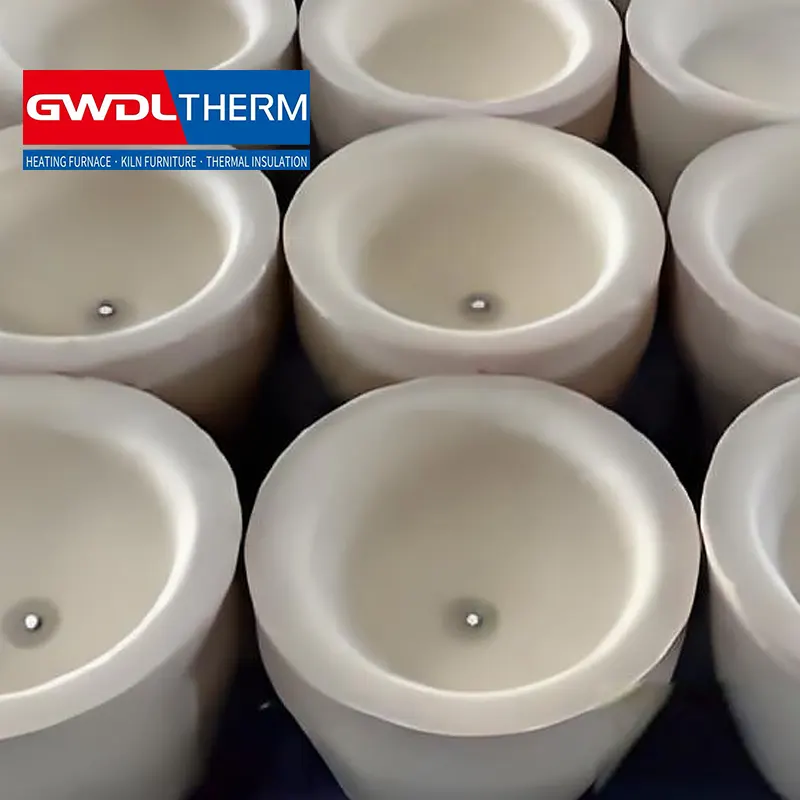

Composition and technical parameters of magnesia ash dish
| model | Trademark H1 - mm | Top outer diameter D2 - mm | Bottom diameter D2' - mm | Top inner diameter D3' - mm | Darken H1' - mm | Upper edge high layer H2' - mm | Media box | Cardboard boxes / pallets |
| 2X | 17 | twenty four | 19 | 18 | 8 | 4.5 | 1008 | 54 |
| 3 | 20 | 26 | 20 | twenty three | 5.5 | 8 | 500 | 54 |
| 4A | twenty two | 27 | 20 | twenty four | 6 | 7.5 | 500 | 54 |
| 4 | twenty two | 29 | twenty three | twenty four | 6 | 8 | 486 | 54 |
| 5 | 26 | 35 | 26 | 27 | 8 | 6.5 | 324 | 75 |
| 6A-26 | 26 | 40 | 30 | 31.2 | 11.8 | 6 | 300 | 60 |
| 6A-29 | 29 | 40 | 30 | 31.2 | 11.8 | 9 | 240 | 75 |
| 7A | 32 | 40 | 30 | 31.2 | 11.8 | 12 | 200 | 75 |
| 300 | 48 | |||||||
| 7AST(X) | 35 | 40 | 30 | 31.2 | 11.8 | 15 | 200 | 75 |
| 300 | 48 | |||||||
| 7AS-15 | 32 | 40 | 30 | 32 | 15 | 12 | 300 | 48 |
| 8 | 27.1 | 44.3 | 34.6 | 34.2 | 8.5 | 9 | 240 | 48 |
| 8A | 35 | 45 | 37 | 38 | 13 | 13 | 200 | 50 |
| 8AM | 35 | 45 | 37 | 33 | 12 | 15 | 200 | 48 |
| 8S | 40 | 44 | 34 | 38 | 14 | 13 | 200 | 48 |
| 9 | 30 | 51 | 43 | 40 | 11 | 5 | 120 | 75 |
| 9A | 34 | 60 | 49.7 | 52.6 | 11.5 | 14 | 120 | 75 |
| 10 | 30.2 | 56.8 | 48.8 | 47.8 | 14.8 | 10 | 80 | 75 |
| 11 | 70 | 110 | 88 | 80 | twenty four | 14 | 12 | 75 |
| Straight tube 40 | 32 | 40 | 40 | - | - | - | 200 | 60 |

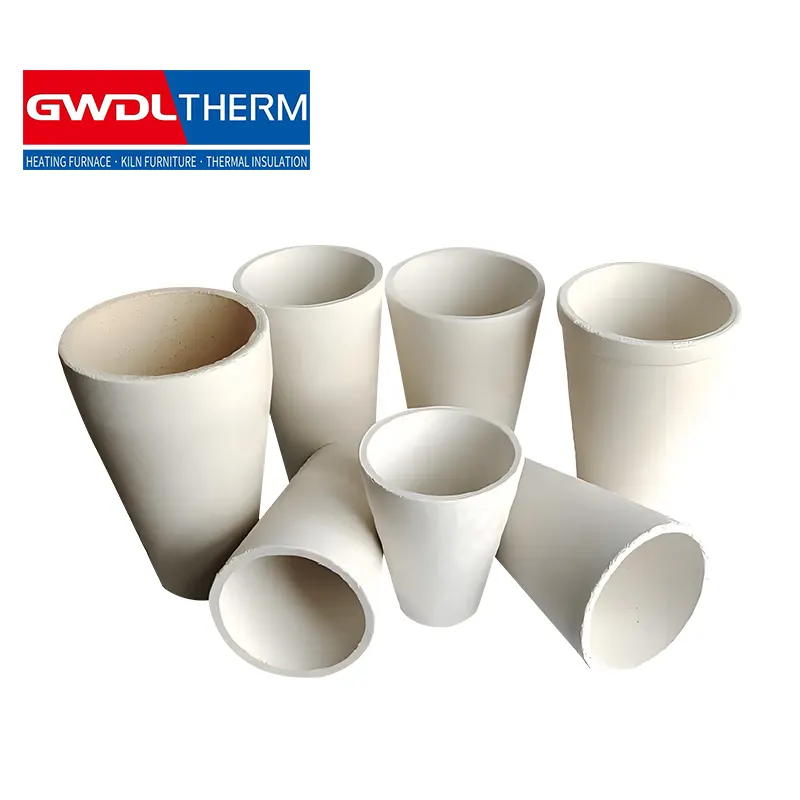

Specifications and parameters of fire assay crucible
| model | Top outer diameter (mm) | Bottom diameter (mm) | Height (mm) | One / wooden box | Wooden crate / small cabinet |
| GWDL 30 | 85 | 56 | 105 | 2574 | 20 |
| GWDL 40 | 90 | 56 | 135 | 2000 | 20 |
| GWDL50 | 105 | 56 | 150 | 1530 | 20 |
| GWDL55 | 90 | 56 | 155 | 1500 | 20 |
| GWDL65 | 105 | 56 | 165 | 1400 | 20 |
| GWDL75L | 120 | 75 | 160 | 1000 | 20 |
| GWDL75S | 110 | 60 | 200 | 840 | 20 |
| GWDL75I | 125 | 61 | 210 | 672 | 20 |
| GWDL C 1 | 105 | 56 | 130 | 880 | 20 |
| GWDL C 2 | 110 | 70 | 130 | 880 | 20 |
| GWDL0355 | 95 | 56 | 140 | 40 | - |
