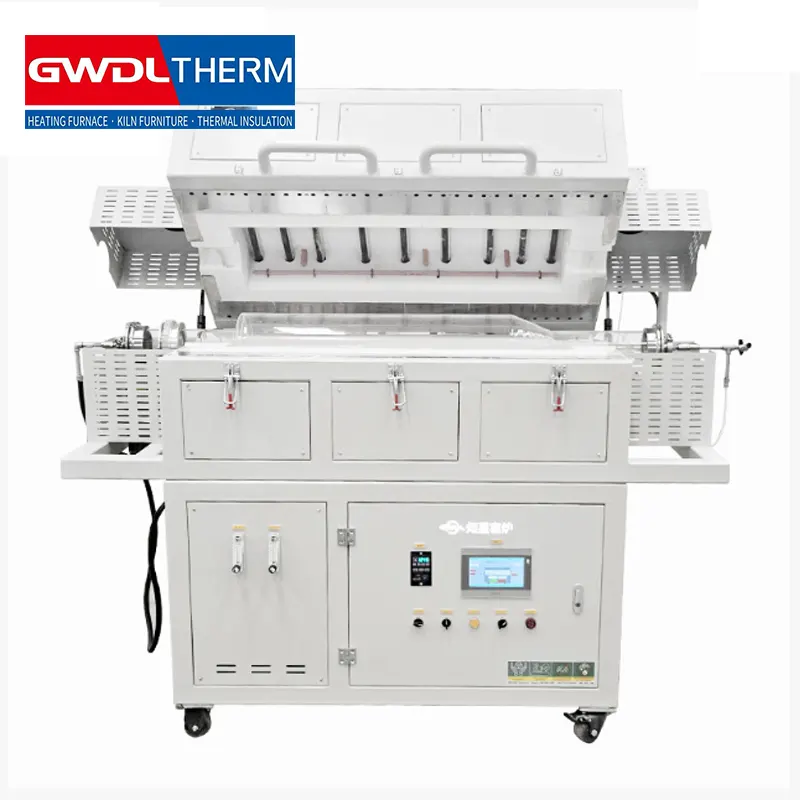

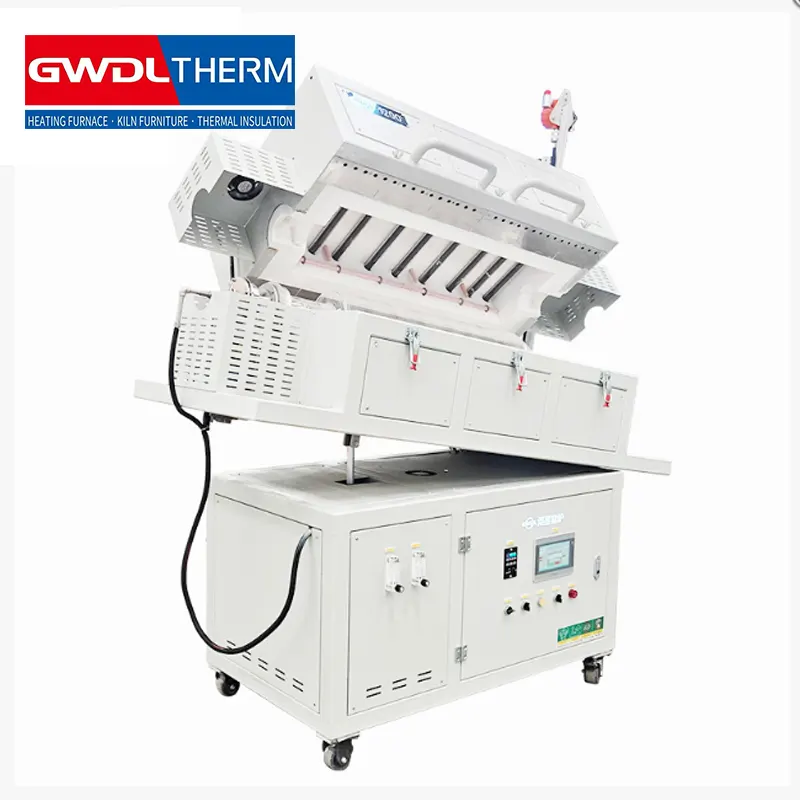

1200°C Tilting Rotary Tube Electric Furnace

List of main components of Juxing kiln
Serial Number	project	name	Classification						factory	Remark
Serial Number	project	name	1200 degrees	1400 degrees	1600 degrees	1700 degrees	1800 degrees	1900 degrees	factory	Remark
1	shell	Double-layer shell	●	●	●	●	●	●	Juxing Kiln
2	heating element	electric heater	High-temperature alloy resistance wire	silicon carbide rods	silicon molybdenum rod	1800 type silicon molybdenum rod	1850 type silicon molybdenum rod	1900 type silicon molybdenum rod	Juxing Kiln
3	Electrical control section	Temperature controller	858P	858P	858P	858P	858P	858P	Xiamen Yudian
4		thermocouple	K	S	B	B	B	B+ fiber	Taisho/Bright
5		Voltmeter	●	●	●	●	●	●	Chint
6		ammeter	●	●	●	●	●	●	Chint
7		SCR power regulator	●	●	●	●	●	●	Juxing Kiln
8		contactor	●	●	●	●	●	●	Chint/Delixi
9		circuit breaker	●	●	●	●	●	●	Chint/Delixi
10		Button	●	●	●	●	●	●	Chint/Delixi
11		buzzer	●	●	●	●	●	●	Chint/Delixi
12		Fast melting	●	●	●	●	●	●	Mingrong
13		transformer	○	○	●	●	●	●	Juxing Kiln
14	Refractory and heat-insulating furnace	Ceramic fiberboard/module	1260	1500	1700	1800	1850	Zirconia fiber 2100	Juxing Kiln
15		Insulating bricks at the furnace opening (inner door)	○	●	●	●	●	●	Juxing Kiln
16		Sintering plate	Quartz ceramics	Quartz ceramics	Corundum Mullite	Corundum Mullite	Corundum Mullite	Zirconia fiber 2100	Juxing Kiln

1200°C Tilting Rotary Tube Electric Furnace for Material Processing
