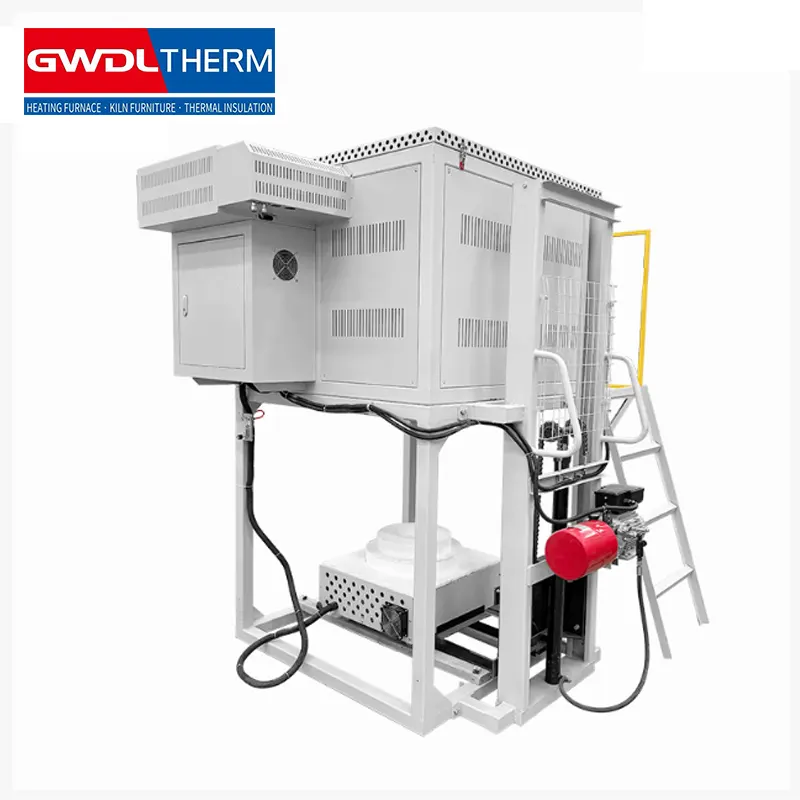

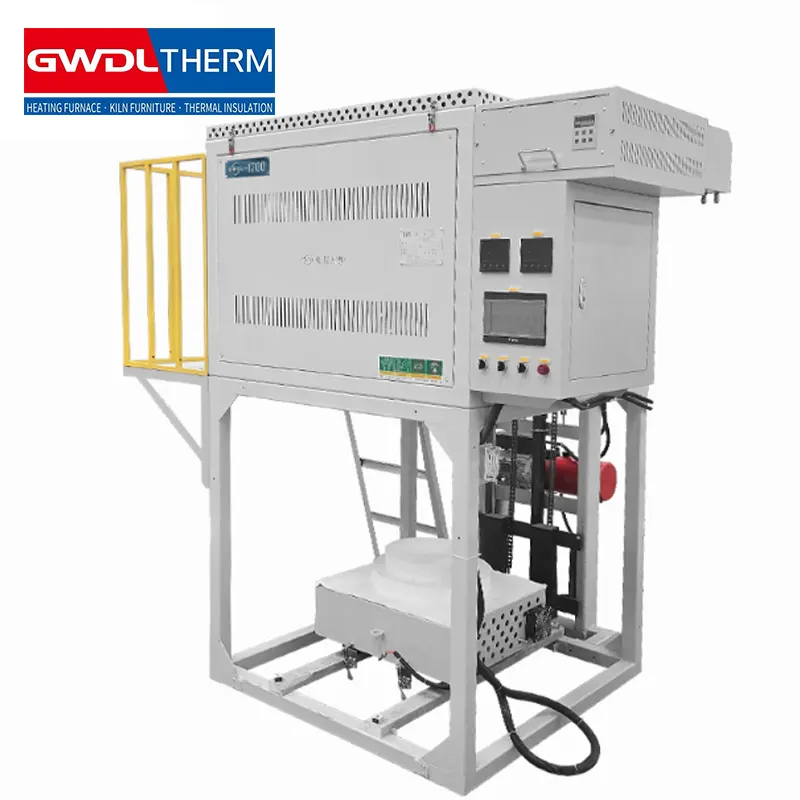

1700°C High-Temperature Melting Furnace with Mechanical Lifting System

Melting furnace model and specifications

name

Specifications and Models

Crucible material (standard configuration)

External dimensions (mm)

Crucible volume (L)

power kW

weight (kg)

1200°C

box-type electric furnace

GWDL-1200R-A-1.6L

High-purity fused silica ceramics

L=1120, W=800, H=1370

1.6L

6

180

GWDL-1200R-A-3L

High-purity fused silica ceramics

L=1120, W=800, H=1370

3L

10

220

GWDL-1200R-A-5L

High-purity fused silica ceramics

L=1120, W=800, H=1370

5L

12

240

GWDL-1200R2-A-10L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

10L

15

300

GWDL-1200R2-A-17L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

17L

18

450

GWDL-1200R2-A-50L

High-purity fused silica ceramics

custom made

50L

45

700

GWDL-1200R2-A-70L

High-purity fused silica ceramics

custom made

70L

60

900

1400°C

box-type electric furnace

GWDL-1400R-A-1.6L

High-purity fused silica ceramics

L=1120, W=800, H=1370

1.6L

8

200

GWDL-1400R-A-3L

High-purity fused silica ceramics

L=1120, W=800, H=1370

3L

10

240

GWDL-1400R-A-5L

High-purity fused silica ceramics

L=1120, W=800, H=1370

5L

12

260

GWDL-1400R2-A-10L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

10L

18

330

GWDL-1400R2-A-17L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

17L

twenty four

470

GWDL-1400R2-A-50L

High-purity fused silica ceramics

custom made

50L

55

750

GWDL-1400R2-A-70L

High-purity fused silica ceramics

custom made

70L

75

950

1600°C

box-type electric furnace

GWDL-1600R-A-1.6L

High-purity fused silica ceramics

L=1120, W=800, H=1370

1.6L

8

200

GWDL-1600R-A-3L

High-purity fused silica ceramics

L=1120, W=800, H=1370

3L

10

240

GWDL-1600R-A-5L

High-purity fused silica ceramics

L=1120, W=800, H=1370

5L

12

260

GWDL-1600R2-A-10L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

10L

18

330

GWDL-1600R2-A-17L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

17L

twenty four

470

GWDL-1600R2-A-50L

High-purity fused silica ceramics

custom made

50L

55

750

GWDL-1600R2-A-70L

High-purity fused silica ceramics

custom made

70L

75

950

1700°C

box-type electric furnace

GWDL-1700R-A-1.6L

High-purity fused silica ceramics

L=1120, W=800, H=1370

1.6L

10

200

GWDL-1700R-A-3L

High-purity fused silica ceramics

L=1120, W=800, H=1370

3L

12

240

GWDL-1700R-A-5L

High-purity fused silica ceramics

L=1120, W=800, H=1370

5L

15

260

GWDL-1700R2-A-10L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

10L

30

330

GWDL-1700R2-A-17L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

17L

45

470

GWDL-1700R2-A-50L

High-purity fused silica ceramics

custom made

50L

55

750

GWDL-1700R2-A-70L

High-purity fused silica ceramics

custom made

70L

75

950

1800°C

box-type electric furnace

GWDL-1800R-A-1.6L

High-purity fused silica ceramics

L=1120, W=800, H=1370

1.6L

12

300

GWDL-1800R-A-3L

High-purity fused silica ceramics

L=1120, W=800, H=1370

3L

15

340

GWDL-1800R-A-5L

High-purity fused silica ceramics

L=1120, W=800, H=1370

5L

18

360

GWDL-1800R2-A-10L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

10L

36

430

GWDL-1800R2-A-17L

High-purity fused silica ceramics

L=1825, W=1825, H=2100

17L

50

570

GWDL-1800R2-A-50L

High-purity fused silica ceramics

custom made

50L

65

850

GWDL-1800R2-A-70L

High-purity fused silica ceramics

custom made

70L

85

1150

Note:

1. All models listed above are in stock. Custom furnace dimensions for special models can be made to order (delivery time 7-10 days)! Custom sizes will incur a 20% surcharge for a single unit, a 10% surcharge for 3-5 units, and no surcharge for 6 units or more.

2. Dimensions are in millimeters (mm). The dimensions shown are for reference only; the actual dimensions shall prevail.
