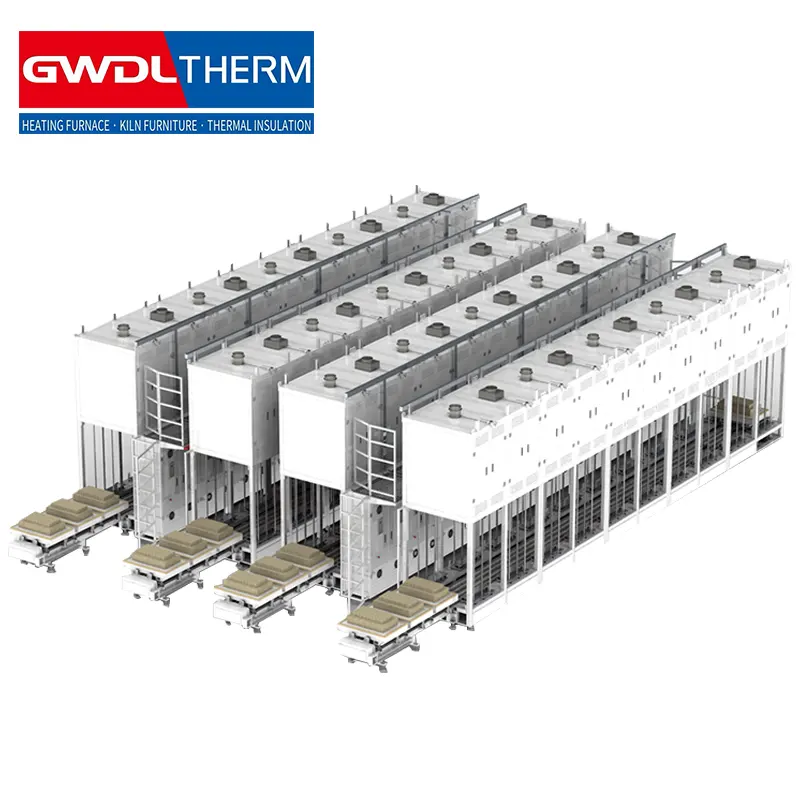

The 900°C multi-station fuel cell stack sintering furnace is designed for efficient batch processing with precise temperature control and uniform heating performance.
Luoyang Juxing Electric Kiln Co., Ltd. (GWDLTHERM) has officially launched its new 1400°C Fuel Cell Gel Removal and Sintering Integrated Furnace, a high-precision thermal processing system designed for fuel cell stack manufacturing, ceramic material processing, and advanced energy applications.
With the rapid development of fuel cell technologies, manufacturers require efficient and stable thermal equipment capable of integrating multiple processes. GWDLTHERM’s new integrated furnace combines gel removal, high-temperature sintering, intelligent temperature control, and multi-station loading technology to provide a complete thermal processing solution for fuel cell production lines.
The 1400°C Fuel Cell Gel Removal and Sintering Integrated Furnace is specially designed for fuel cell stack processing, integrating binder removal, drying, and high-temperature sintering functions into one advanced thermal system.
The equipment adopts the GWL-SS1000C series high-temperature precision lifting furnace structure, featuring a separated design between the furnace chamber and control system. This configuration improves equipment stability, reduces thermal impact on electrical components, and provides convenient maintenance.
The furnace lining uses vacuum-formed high-purity alumina fiber lightweight board, providing excellent insulation performance, low heat storage capacity, rapid heating response, and energy-saving operation.
The heating system uses high-temperature alloy resistance wire heating elements, ensuring reliable performance and uniform heating during continuous production.
This furnace is developed specifically for fuel cell manufacturing processes, combining gel removal and high-temperature sintering in a single system.
Advantages include:
The integrated design helps manufacturers optimize production flow and improve product quality.

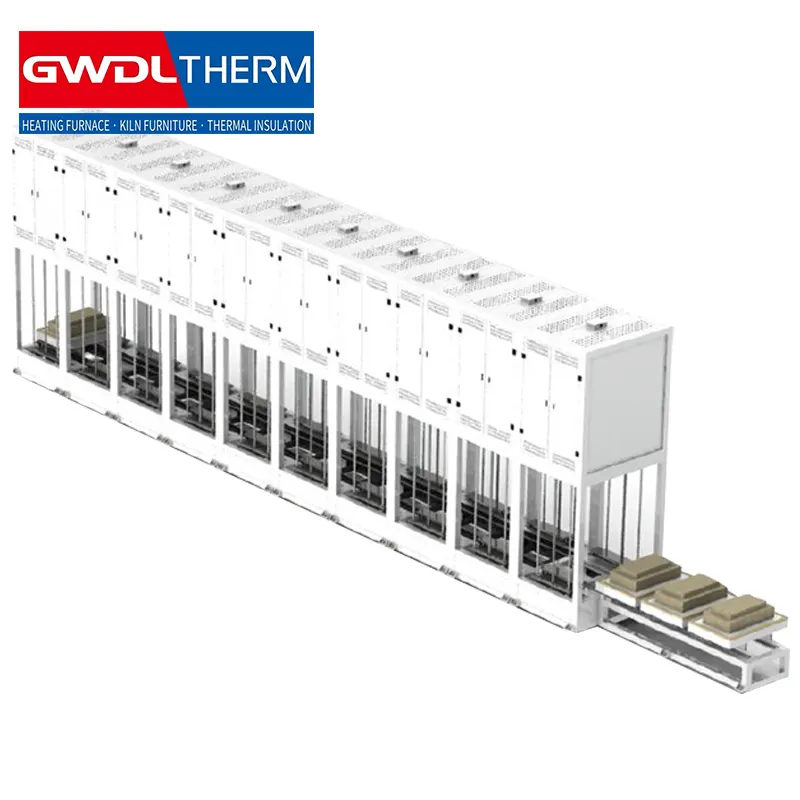

The furnace adopts a multi-station configuration suitable for industrial-scale fuel cell production.
Main features:
The loading system supports manual transfer from the electric furnace to the cleanroom, providing flexible production integration.
The furnace is equipped with an intelligent touchscreen temperature control system, supporting programmable thermal processes.
Control functions include:
The optimized heating structure provides excellent temperature uniformity:
Temperature Uniformity: ±3~5°C
ensuring stable and repeatable fuel cell processing results.
The furnace adopts a durable material structure:
The platform supports a maximum loading capacity of:
300 kg per platform
The furnace shell temperature remains:
≤45°C
during operation, improving workplace safety and operating comfort.
| Parameter | Specification |
|---|---|
| Product Name | 1400°C Fuel Cell Gel Removal and Sintering Integrated Furnace |
| Furnace Series | GWDLtherm-SS1000C |
| Furnace Type | High-Temperature Precision Lifting Furnace |
| Furnace Structure | Separate Furnace Chamber and Control System |
| Furnace Chamber Dimensions (L×W×H) | 740×700×600 mm |
| Tooling Dimensions | 300×500×600 mm (Two Fixtures) |
| Working Configuration | 12 Units in Two Rows |
| Charging Platform Quantity | 12 Platforms |
| Heating Element | High-Temperature Alloy Resistance Wire |
| Insulation Material | Vacuum-Formed High-Purity Alumina Fiber Lightweight Board |
| Rated Voltage | 380V AC |
| Furnace Power | 30 kW |
| Furnace Weight | 950 kg |
| Loading Trolley | Additional Set |
| Trolley Capacity | 6 Units |
| Conveyor Line Distance | 10 m |
| Maximum Load Capacity | 300 kg / Platform |
| Temperature Uniformity | ±3~5°C |
| Inner Pressure Plate Material | 310S Stainless Steel |
| Outer Shell Material | 304 Stainless Steel |
| Furnace Shell Temperature | ≤45°C |
Used for fuel cell stack gel removal, binder burnout, drying, and high-temperature sintering processes.
Suitable for advanced ceramic materials, electrolyte materials, electrode materials, and functional components.
Designed for integration with clean manufacturing environments requiring stable thermal processing.
Applied in universities and research centers for fuel cell technology development and material experiments.
Integrated Thermal Processing Solution
Combines gel removal and sintering processes to improve production efficiency.
Industrial Multi-Station Design
Supports large-scale fuel cell manufacturing requirements.
Customized Furnace Engineering
GWDLTHERM provides professional thermal equipment design and complete production solutions.
