The 1300°C GDC sintering furnace is designed for fuel cell material processing, providing precise temperature control and uniform heating for reliable sintering.
Luoyang Juxing Electric Kiln Co., Ltd. (GWDLTHERM) has officially launched its new 1300°C Fuel Cell GDC Sintering Furnace, a specialized high-temperature sintering system developed for fuel cell materials, ceramic electrolytes, and advanced material manufacturing applications.
Designed to meet the increasing demand for high-performance fuel cell components, this furnace provides precise temperature control, efficient heating performance, and stable sintering conditions for GDC (Gadolinium Doped Ceria) materials and other advanced ceramic products.
The new furnace integrates high-temperature silicon carbide rod heating technology, intelligent programmable control, and a high-purity alumina fiber insulation structure, providing a reliable thermal processing solution for universities, research institutes, and industrial production facilities.
The 1300°C Fuel Cell GDC Sintering Furnace is designed specifically for high-temperature sintering processes requiring excellent temperature stability and repeatability.

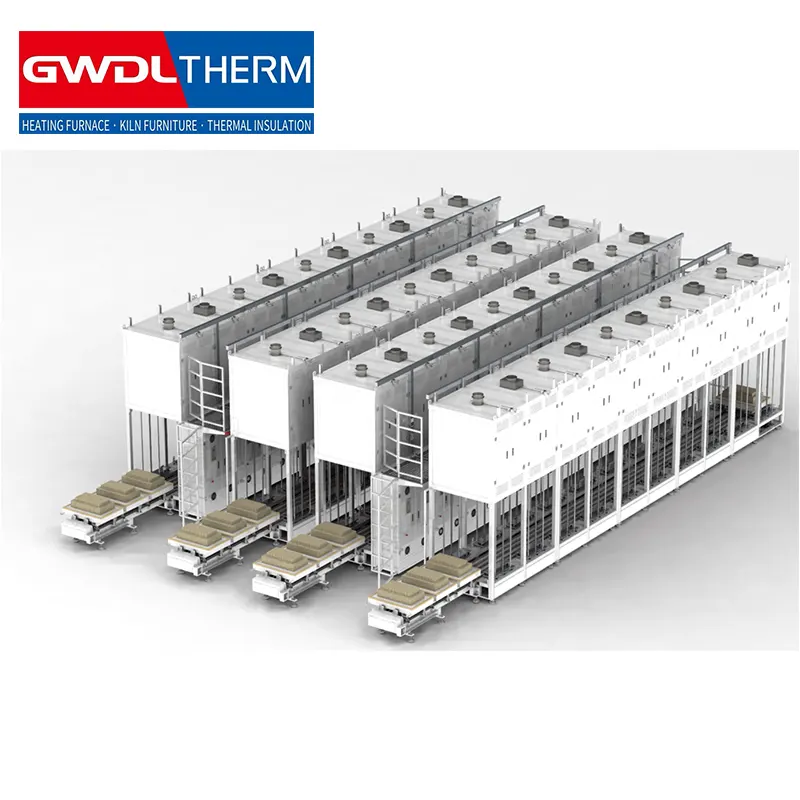

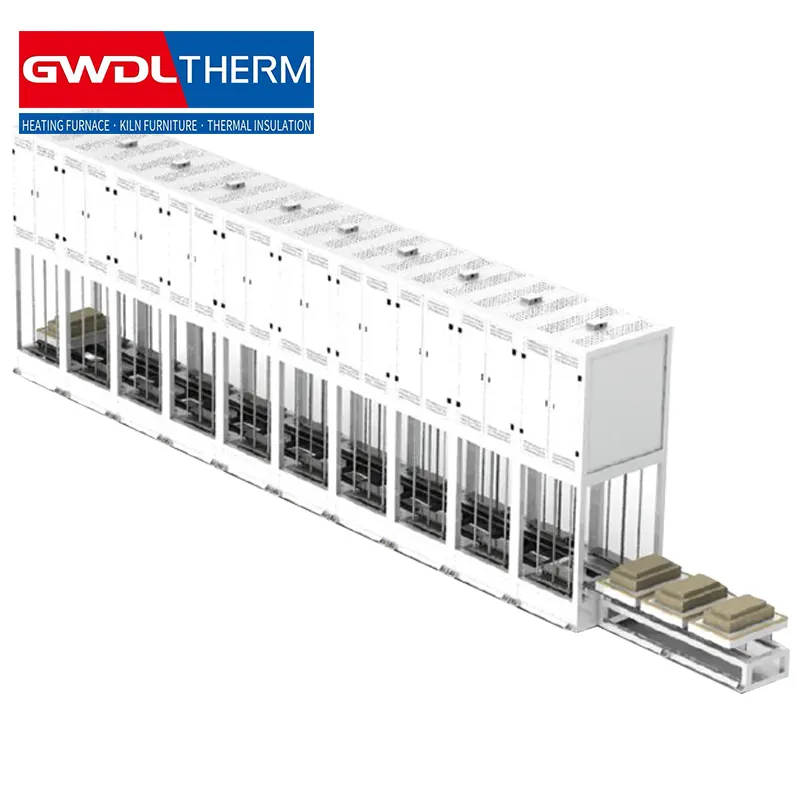

The equipment adopts a separated design, with the furnace chamber and control system installed independently. This structure improves operation convenience, reduces heat influence on electrical components, and provides a safer working environment.
The furnace lining uses vacuum-formed high-purity alumina fiber lightweight board, offering excellent thermal insulation performance, low heat storage capacity, and fast heating response.
High-temperature silicon carbide rods are used as heating elements, ensuring efficient heat generation, oxidation resistance, and long service life during continuous operation.
The furnace is developed for GDC electrolyte materials and fuel cell-related ceramic components, providing stable high-temperature conditions for sintering, melting, analysis, and material preparation.
It is suitable for:
The furnace is equipped with a touchscreen control system and intelligent temperature regulator, supporting fully automatic heating and cooling programs.
Main control functions include:
The intelligent control system improves process repeatability and ensures consistent sintering quality.
The furnace chamber uses high-purity alumina fiber lightweight insulation material, providing:
The maximum furnace shell temperature is ≤45°C, improving operator safety and maintaining a better working environment.
The system can be equipped with a dedicated tail gas purification furnace with a treatment capacity of:
80 m³/h
The purification system helps process exhaust gases generated during sintering, supporting cleaner operation and environmental protection requirements.
The furnace is designed to meet industrial production requirements with:
Material loading options:
The system supports continuous production requirements without pressure sintering or protective atmosphere requirements.
| Parameter | Specification |
|---|---|
| Product Name | 1300°C Fuel Cell GDC Sintering Furnace |
| Furnace Model | GWDLtherm-1000SS |
| Furnace Type | Lifting Electric Furnace |
| Furnace Chamber Size | 700×325×800 mm |
| Sagger Size | 200×200×30 mm |
| Maximum Temperature | 1300°C |
| Heating Element | Silicon Carbide Rod |
| Insulation Material | Vacuum-Formed High-Purity Alumina Fiber Board |
| Control System | Touchscreen Intelligent Temperature Controller |
| Voltage | 380V AC |
| Furnace Power | 36 kW |
| Furnace Weight | 850 kg |
| Tail Gas Furnace Capacity | 80 m³/h |
| Tail Gas Furnace Power | 16 kW |
| Tail Gas Furnace Weight | 320 kg |
| Furnace Shell Temperature | ≤45°C |
Used for GDC electrolyte sintering, fuel cell ceramic components, and advanced energy material development.
Suitable for electronic ceramics, functional ceramics, glass materials, and precision ceramic processing.
Applied in laboratories for material analysis, high-temperature experiments, and new material research.
Used for sintering, melting, and thermal treatment of special materials, metals, and non-metal materials.
Designed for Fuel Cell Materials
Optimized for GDC sintering and advanced ceramic thermal processing.
Stable High-Temperature Performance
Silicon carbide heating elements and precision control ensure reliable operation.
Customized Industrial Solutions
GWDLTHERM provides professional furnace design and complete thermal processing solutions.
