The 1300°C cathode sintering furnace is specially designed for fuel cell electrode materials, delivering accurate temperature control and uniform heating.

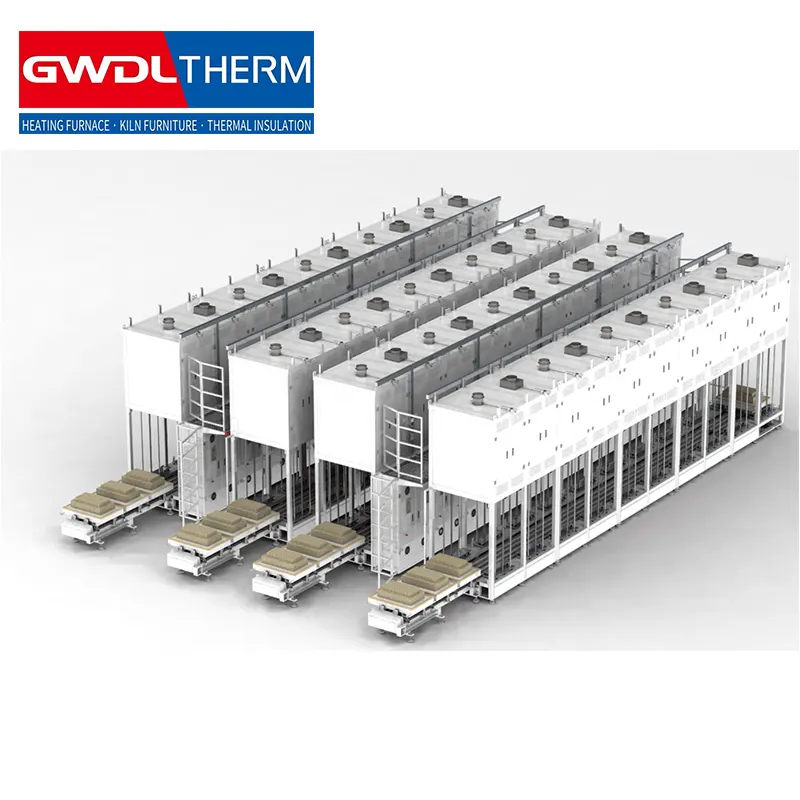

Luoyang Juxing Electric Kiln Co., Ltd. (GWDLTHERM) has officially launched its new 1300°C Fuel Cell Cathode Sintering Furnace, a specialized high-temperature sintering system developed for fuel cell cathode materials, ceramic components, and advanced energy material research.
With the rapid development of fuel cell technology and new energy industries, high-performance cathode materials require precise thermal processing conditions to achieve stable structure and excellent electrochemical performance. GWDLTHERM’s new cathode sintering furnace integrates advanced silicon carbide heating technology, intelligent temperature control, and high-efficiency insulation design to provide a reliable solution for laboratory research and industrial production.
The 1300°C Fuel Cell Cathode Sintering Furnace is designed for high-temperature sintering applications requiring excellent temperature stability, uniform heating, and repeatable processing performance.

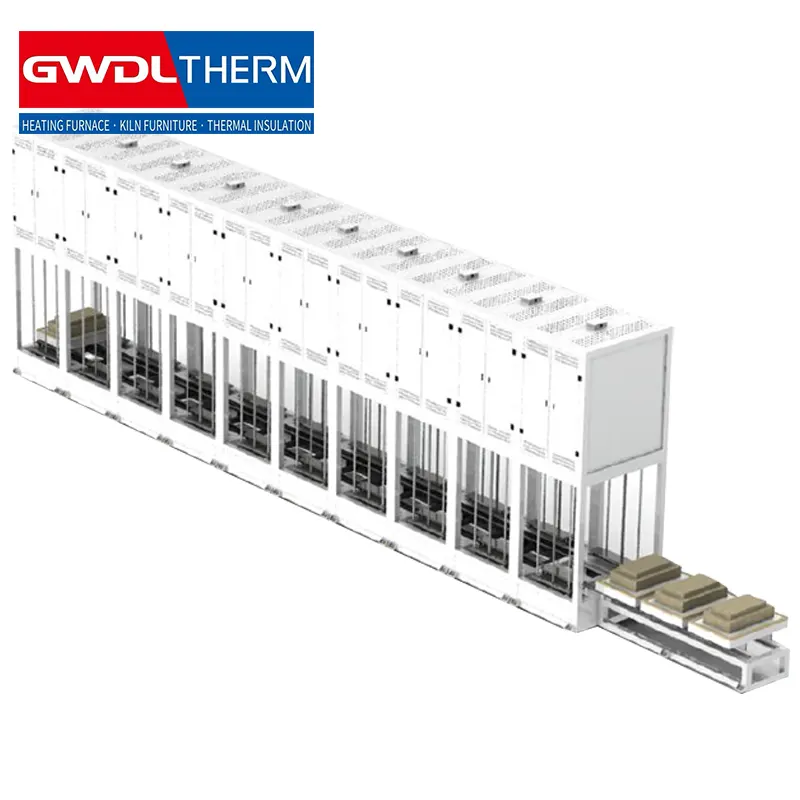

The furnace adopts a separated structure design, with the furnace chamber and control system installed independently. This configuration improves operational safety, reduces heat impact on electrical components, and provides a convenient working environment.
The furnace lining uses vacuum-formed high-purity alumina fiber lightweight board, providing excellent insulation performance, low heat storage, rapid heating response, and reduced energy consumption.
High-temperature silicon carbide rods are used as heating elements, ensuring efficient heating, long service life, and stable operation during continuous high-temperature processing.
The furnace is specially developed for cathode material preparation and high-temperature ceramic sintering processes.
It is suitable for:
The optimized heating system provides stable thermal conditions to improve material consistency and processing reliability.
The furnace is equipped with a touchscreen control panel and intelligent temperature controller, supporting fully automatic heating and cooling programs.
The control system provides:
The intelligent control system improves process repeatability and ensures accurate thermal treatment results.
The furnace chamber adopts high-performance alumina fiber insulation material, offering:
The maximum furnace shell temperature is ≤45°C, significantly improving operator safety and the surrounding working environment.
The furnace is designed to meet both research and industrial production requirements.
Main production advantages:
The equipment can be configured with an electric glue drain hole and tail gas purification system according to customer process requirements.
| Parameter | Specification |
|---|---|
| Product Name | 1300°C Fuel Cell Cathode Sintering Furnace |
| Furnace Type | Lifting Electric Furnace |
| Model | GWDLtherm-1000SS |
| Maximum Temperature | 1300°C |
| Furnace Chamber Dimensions (L×W×H) | 700×325×800 mm |
| Sagger Dimensions | 200×200×30 mm |
| Firing Plate Dimensions | 170×170×3 mm |
| Heating Element | High-Temperature Silicon Carbide Rod |
| Insulation Material | Vacuum-Formed High-Purity Alumina Fiber Lightweight Board |
| Control System | Intelligent Programmable Temperature Controller |
| Control Interface | Touchscreen + Computer Monitoring Interface |
| Rated Voltage | 380V AC |
| Furnace Power | 36 kW |
| Furnace Weight | 850 kg |
| Furnace Shell Temperature | ≤45°C |
| Pressure Requirement | No Pressure Required During Sintering |
| Atmosphere Requirement | No Atmosphere Required |
| Tail Gas Purification Furnace Capacity | 80 m³/h |
| Tail Gas Purification Furnace Power | 16 kW |
| Tail Gas Purification Furnace Weight | 320 kg |
| Production Capacity | Up to 100,000 Pieces/Year |
Used for cathode material sintering, ceramic component preparation, and fuel cell material research.
Suitable for electronic ceramics, functional materials, refractory materials, and precision ceramic production.
Applied in laboratories for material analysis, high-temperature experiments, and new material development.
Used for thermal treatment, material synthesis, melting analysis, and special material processing.
Specialized Fuel Cell Processing Solution
Designed for cathode sintering and advanced energy material applications.
Stable High-Temperature Performance
Silicon carbide heating elements ensure efficient and reliable thermal processing.
Customized Thermal Equipment Manufacturer
GWDLTHERM provides professional furnace design, manufacturing, and complete thermal solutions.
Luoyang Juxing Electric Kiln Co., Ltd. (GWDLTHERM) is a professional manufacturer specializing in high-temperature electric furnaces, vacuum furnaces, atmosphere furnaces, industrial kilns, and customized thermal processing equipment.
With expertise in thermal engineering, intelligent control systems, and advanced furnace manufacturing, GWDLTHERM provides reliable solutions for fuel cells, new energy materials, ceramics, electronics, aerospace, metallurgy, and scientific research industries worldwide.
