The 1100°C automatic pusher plate furnace is designed for fuel cell and battery material sintering, offering precise control and continuous production efficiency.
Luoyang Juxing Electric Kiln Co., Ltd. (GWDLTHERM) has officially launched its new 1200°C Fully Automatic Pusher Plate Sintering Furnace, a continuous thermal processing system specially developed for fuel cell materials, battery materials, and advanced ceramic production.
With the rapid growth of new energy industries, manufacturers require efficient, stable, and automated sintering equipment to improve production capacity and product consistency. GWDLTHERM’s new pusher plate furnace integrates automatic feeding, intelligent temperature control, water cooling technology, and continuous sintering operation to provide a reliable solution for large-scale battery material processing.
The GWDL1100°C Fully Automatic Pusher Plate Sintering Electric Furnace is a continuous sintering system designed mainly for battery materials and fuel cell-related materials.
The furnace consists of:

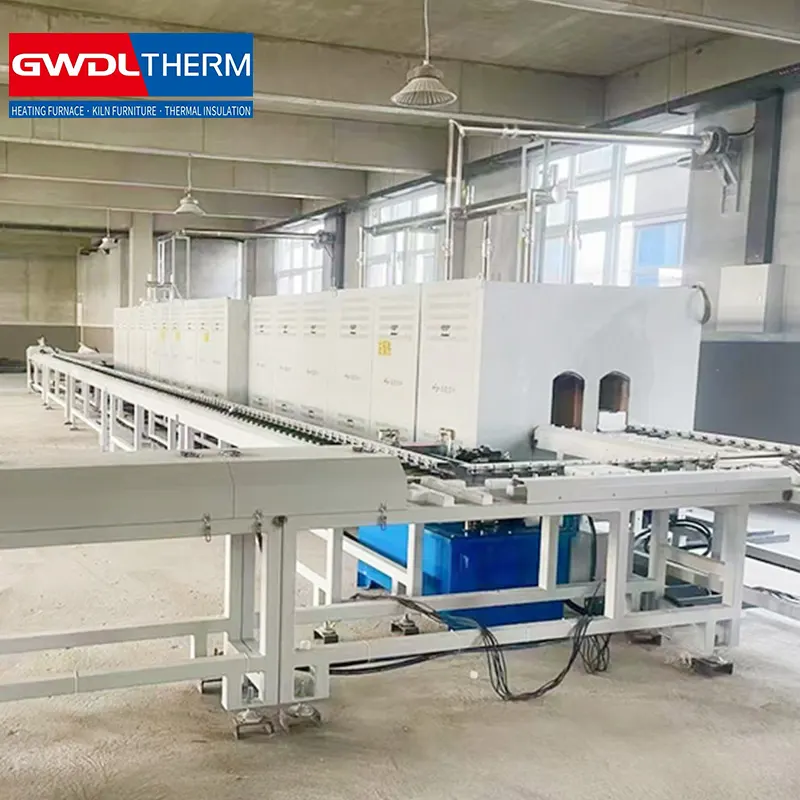

The continuous pusher plate structure enables stable material transportation and high production efficiency, making it suitable for industrial-scale sintering processes requiring long-term operation.
The system adopts resistance wire and silicon carbide rod heating technology, providing uniform heating performance and reliable high-temperature operation.

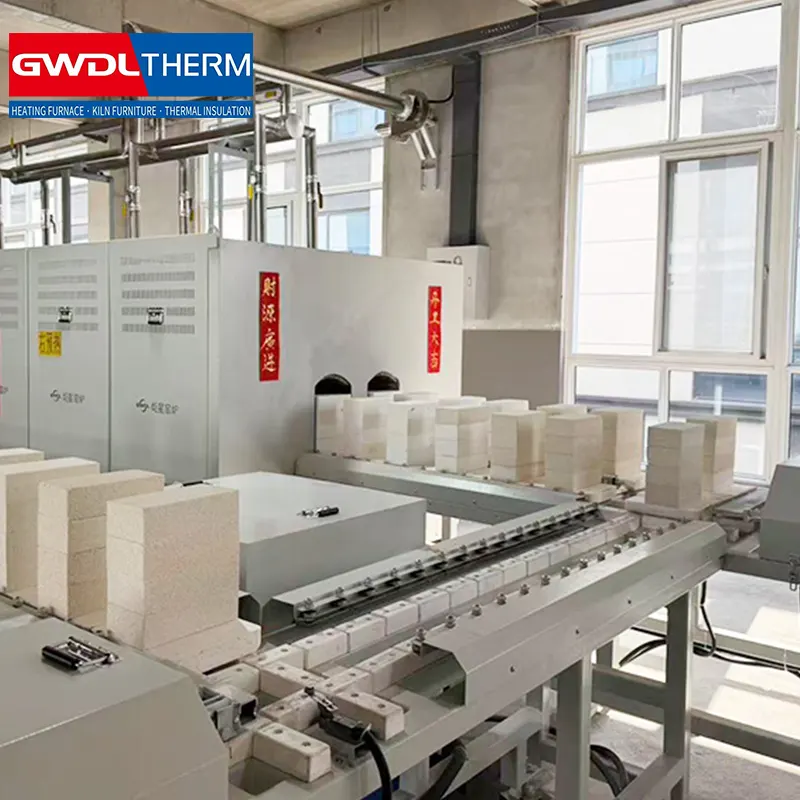

The furnace adopts an automatic pusher plate structure, enabling continuous loading, sintering, and unloading operations.
Production advantages:
The automated production mode significantly improves efficiency and reduces manual operation requirements.

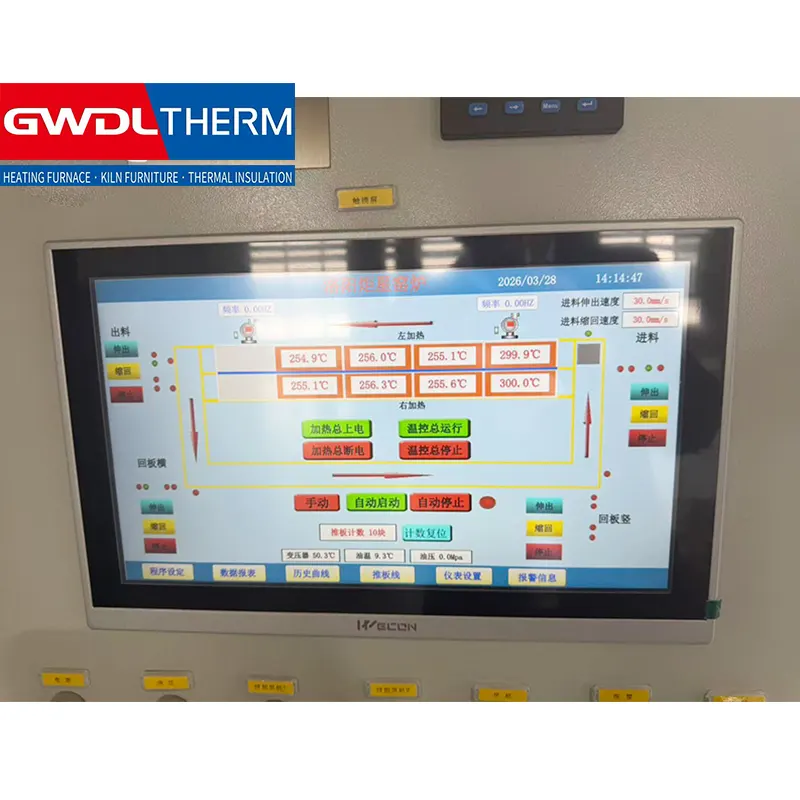

The furnace is equipped with an intelligent automatic temperature control system for precise thermal management.
Main functions include:
The intelligent control system improves sintering consistency and ensures reliable product quality during continuous production.
The furnace uses a combined heating system:
Heating Elements: Resistance Wire + Silicon Carbide Rod
Maximum operating temperature:
1200°C
Normal working temperature:
1150°C
The optimized heating structure provides stable temperature distribution in the high-temperature sintering zone, ensuring uniform material processing.
The integrated automatic feeding system improves production continuity and reduces labor intensity.
The furnace is equipped with:
Outlet temperature:
<60°C
The cooling system improves equipment safety and supports continuous production operation.
The furnace is designed for high-volume production environments.
Main features:
The modular structure allows integration into automated production lines.
| Parameter | Specification |
|---|---|
| Product Name | 1200°C Fully Automatic Pusher Plate Sintering Furnace |
| Model Series | GWDLtherm1100°C Pusher Plate Furnace |
| Application | Fuel Cell and Battery Material Sintering |
| Furnace Type | Continuous Pusher Plate Sintering Furnace |
| Maximum Operating Temperature | 1200°C |
| Normal Operating Temperature | 1150°C |
| Furnace Dimensions (L×W×H) | 15456×2300×2000 mm |
| Furnace Footprint | 21×4.5×2 m |
| Temperature Control Cabinet Size | 3.2×0.8×2.1 m |
| Effective Loading Opening | 400×300 mm |
| Furnace Chamber Dimensions | 440×350 mm |
| High Temperature Sintering Zone Length | Approx. 1000 mm |
| Product Size | 170×170×3 mm |

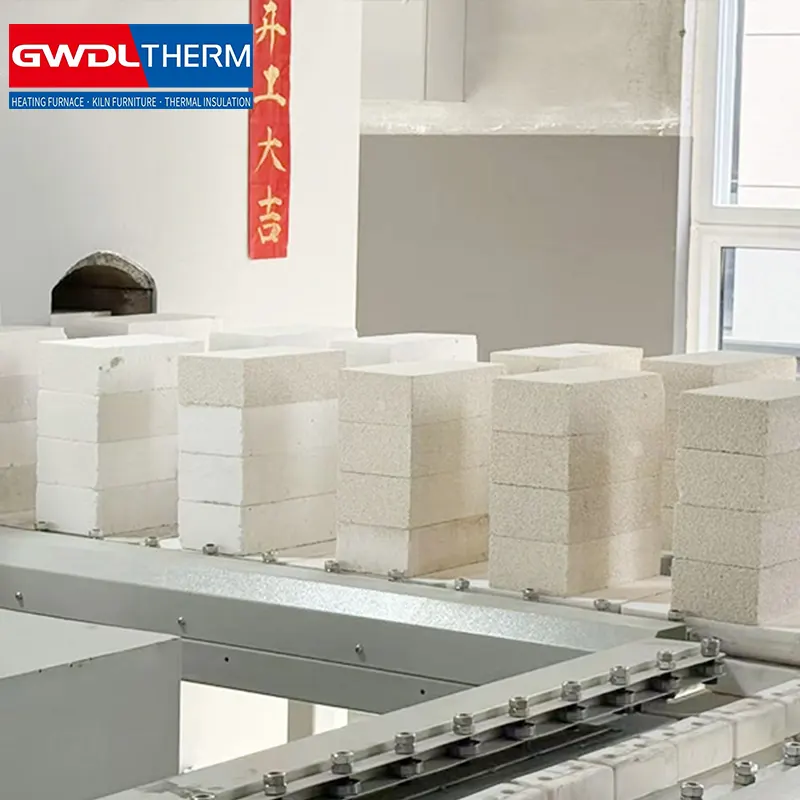

| Pusher Plate Size | 400×400×50 mm |
| Pusher Plate Material | Corundum-Mullite |
| Products per Pusher Plate | 96 pcs |
| Production Capacity | 600,000 pcs/year |
| Daily Output | 2,000 pcs/day |
| Hourly Output | Approx. 83 pcs/hour |
| Pushing Speed | Designed 6.67 mm/min |
| Heating Element | Resistance Wire + Silicon Carbide Rod |
| Rated Power Supply | Three-phase Five-wire 380V 50Hz |
| Designed Power | 120 kW |
| Furnace Atmosphere | Air |
| Furnace Pressure | Atmospheric Pressure |
| Air Supply | 1-3 Nm³/h |
| Air Pressure | 0.3-0.5 MPa |
| Cooling System | Built-in 5P Circulating Water Cooler |
| Outlet Temperature | <60°C |
Used for continuous sintering of cathode materials, electrode materials, and advanced battery components.
Suitable for fuel cell material processing, ceramic components, and energy material production.
Applied in electronic ceramics, functional ceramics, and high-performance material sintering.
Used by enterprises, universities, and research institutes for large-scale thermal processing.
High Production Efficiency
Continuous operation with automated feeding and material transportation.
Stable Sintering Performance
Precise temperature control ensures consistent product quality.
Customized Industrial Solutions
GWDLTHERM provides complete furnace design and automated thermal processing solutions.
