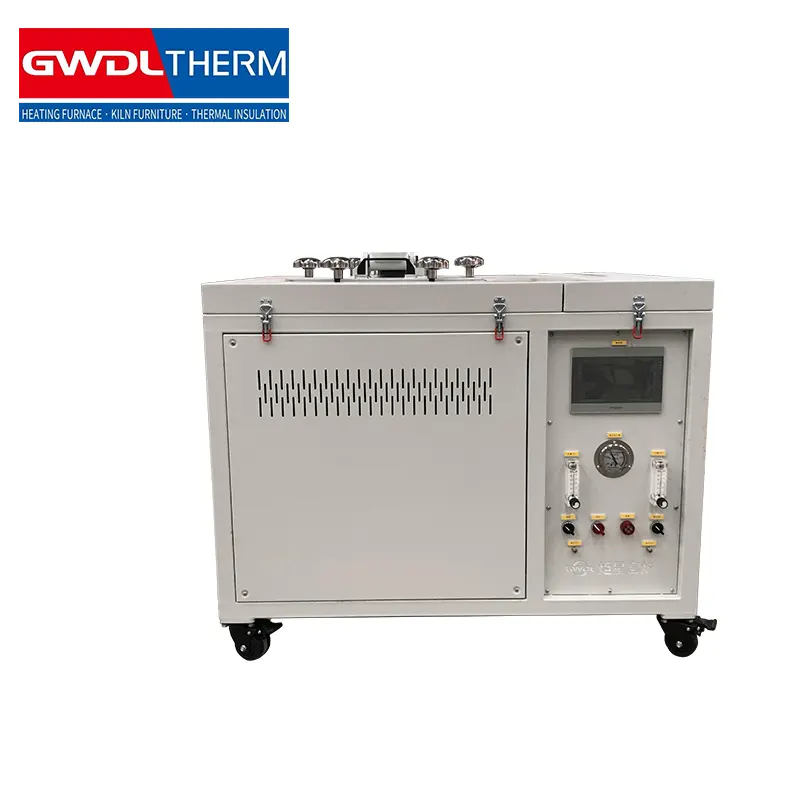

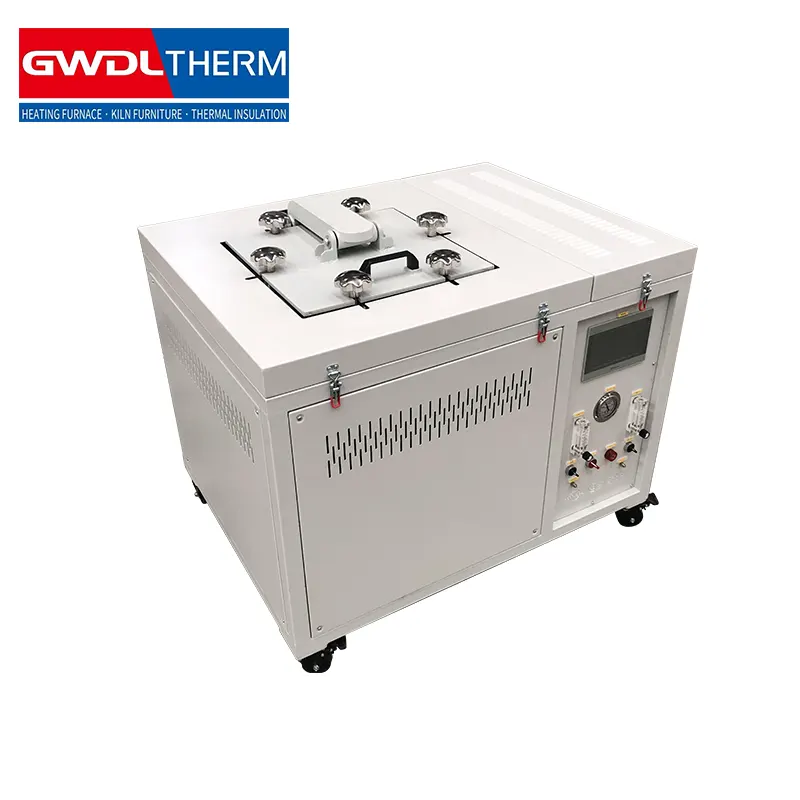

1600°C Vacuum Atmosphere Pit Furnace for High-Temperature Heat Treatment

         temperature

project

1600℃

Voltage AC

380V

Specification

Heating zone Φ200×200mm

Rated operating temperature

1650℃

Long-term operating temperature

1600℃

Temperature control accuracy

±1℃

Temperature uniformity inside the furnace

±3℃ (depending on the size of the heating chamber)

Temperature sensing element and temperature measurement range

Nickel-chromium and nickel-silicon K temperature measurement range: 0-1350℃

Number of program curve segments

Group 1 has 50 segments, Group 2 has 22 segments, and Group 3 has 8 segments.

heating rate

Adjustable from 1℃/h to 20℃/min

Furnace door opening method

Top opening

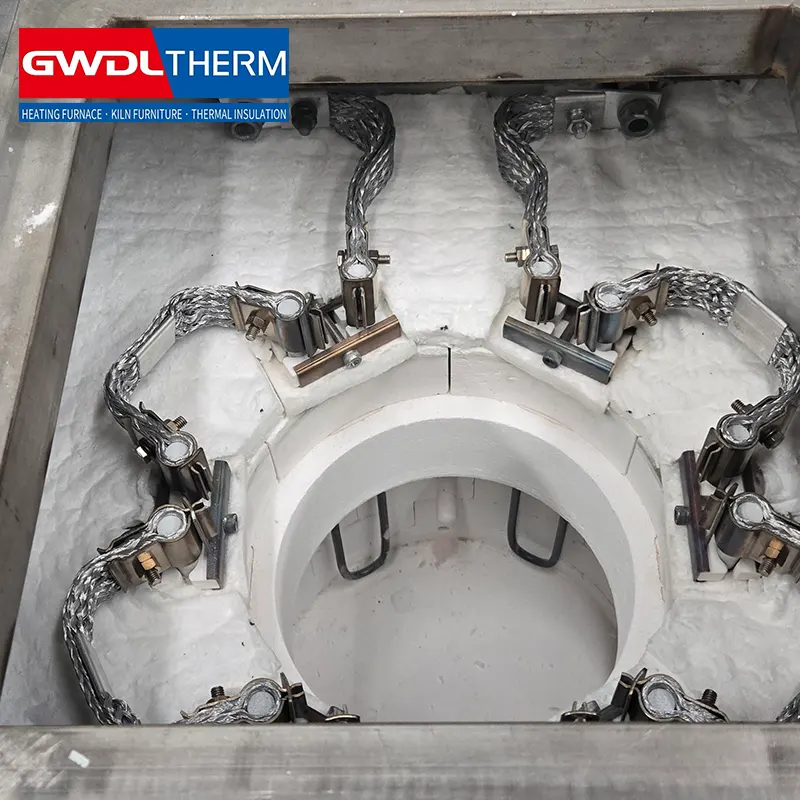

Heating element

A silicon molybdenum rod is used as the heating element.

Heating element distribution

Evenly distributed around the furnace

Protect

The system employs an integrated modular control unit, ensuring accurate control precision. It also features dual-loop control and dual-loop protection, providing protection against overshoot, over-adjustment, under-adjustment, thermocouple breakage, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft start.

control

Employing closed-loop technology and thyristor module trigger control, this system uses a phase-shift trigger control method, allowing for continuous adjustment of output voltage, current, or power. It features constant voltage, constant current, or constant power characteristics. The current loop is the inner loop, and the voltage loop is the outer loop. When a sudden load is applied or the load current exceeds the current limit, the output current of the voltage regulator is limited to the rated current range, ensuring normal operation of the output and the voltage regulator. Simultaneously, the voltage loop also participates in regulation, limiting the output current of the voltage regulator to the rated current range, maintaining constant output current and voltage with sufficient adjustment margin. This protects the heating elements from excessive current and voltage surges, achieving safe, reliable, and precise control.

Display parameters

Temperature, temperature range number, time period, remaining time, output power percentage, voltage, current, etc.

Button

It uses imported buttons with a lifespan of over 100,000 cycles and comes with an LED indicator.

Temperature profile setting

Employing an intelligent temperature controller, it offers multiple adjustment modes including standard PID, AI-based APID, and MPT. It features self-tuning and self-learning capabilities, excellent control characteristics with no overshoot or undershoot, and 10-100 segment programmable control. It can achieve temperature rise and fall control with arbitrary slopes and provides programmable/operable commands such as jump (loop), run, pause, and stop, allowing modification of the program at any time during operation. Utilizing an AI-based adjustment algorithm with curve fitting capabilities, it achieves smooth and even curve control.

Touchscreen control

7-inch true color touchscreen

Furnace body seals

The seals are made of silicone rubber rings (temperature resistant 260-350 degrees Celsius).

 Vacuum value (vacuum gauge)

-0.1MPa

air intake

1

air outlet

1

vacuum pump

Mechanical rotary vane pump

Cooling structure

Double-layer furnace shell, air-cooled + water-cooled

Water cooling

Self-supplied water source

Cooling section

Furnace door, furnace opening

Safety

The system uses an electric contact pressure gauge to detect pressure, drive a solenoid valve, and provides overpressure protection, audible and visual alarms, while simultaneously shutting off the gas supply and releasing pressure within the pipe. This is to prevent dangerous gases from generating excessive positive pressure at high temperatures, or from volatile substances blocking the outlet and causing excessively high gas pressure.

Can open atmosphere

Hydrogen, nitrogen, argon, carbon monoxide, oxygen, etc.

Refractory materials

High-purity alumina fiberboard

Cooling structure

Double-layer furnace shell, air-cooled

Furnace body temperature

≤45 degrees

Computer Interface

RS485 RS232 USB

Graphite crucible

Customer provides

Warranty coverage and period

The electric furnace comes with a one-year free warranty, but the heating element is not covered by the warranty (it will be replaced free of charge if it fails naturally within three months).

Random spare parts

Two heating elements, two sets of rods, one instruction manual, one certificate of conformity, one crucible tongs, one pair of high-temperature gloves, one instruction manual, one acceptance report (factory inspection report), and one sales delivery note.
