Compact rotary furnace for lab-scale material synthesis, powder calcination, and thermal reaction, with precise temperature control and rotating tube design.
Laboratory Rotary Furnace for Uniform Powder Processing
GWDLTHERMO laboratory-scale rotary furnace is designed for uniform heating, mixing, and thermal reaction of powders and granulated materials. Through controlled rotation and multi-temperature zone control, it ensures consistent treatment results with excellent temperature uniformity.
Ideal for R&D applications such as ceramic precursor calcination, battery material synthesis, metal oxide reduction, and binder removal, the furnace supports small-batch continuous processing with adjustable tilt angle, variable-speed rotation, and optional atmosphere sealing.
Its compact structure, high-precision temperature control (±1°C), and modular design make it a reliable tool for universities, research institutes, and pilot-scale material development projects.
GWDL-600QTR three-zone quartz rotary tube furnace with large-diameter design supports uniform heating up to 600℃. Features tilting and rotating functions, independent temperature zones, PID control, and dust-free operation for powders, ceramics, metallurgy, and high-purity materials.

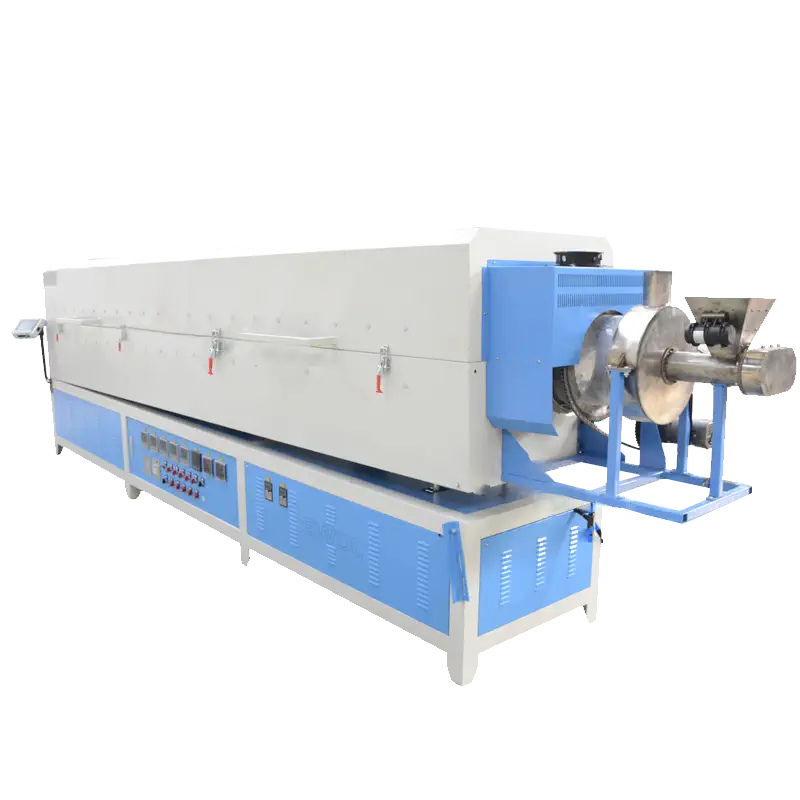

GWDL-1150SSR rotary calcination furnace delivers stable powder sintering up to 1150℃ with SiC heating rods protected by quartz glass tubes. Its dust-free heating design ensures absolute product purity, ideal for ceramics, metallurgy, glass, and high-purity material processing with precise PID control and safe cooling system. Thermocouple K-type (0–1320℃) Heating elements Silicon carbide rods (protected by quartz tube) Heating position Upper & lower furnace tube Temperature accuracy ±1℃ Control zones 3 independent (Left / Center / Right)

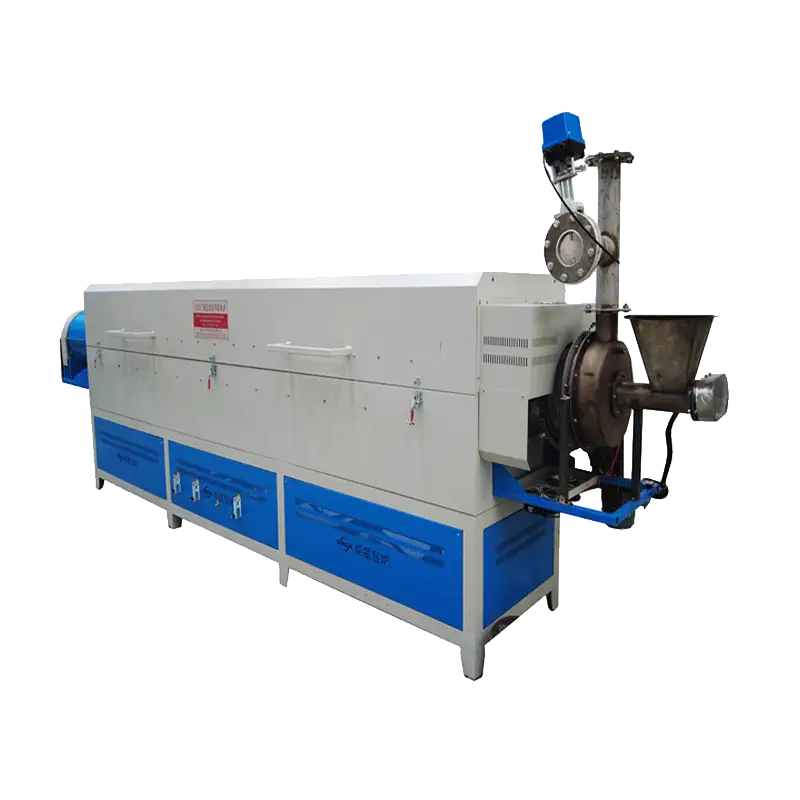

Industrial continuous rotary furnace with 5N purity capability, 1050℃ design temperature, five-zone temperature control, high-purity quartz tube, and integrated dust collection system. Ideal for lithium battery cathodes, ceramics, photovoltaic silicon, and catalyst powders.
High-performance 1400℃ tilting and rotating tube furnace with recrystallized silicon carbide tube, offering uniform heating, advanced PID temperature control, and programmable multi-segment temperature profiles. Ideal for materials processing requiring corrosion resistance and precise temperature management.
Intelligent programmable rotary furnace, featuring 30-segment curve control, a double-layer air-cooled structure (with the outer shell temperature ≤ 45℃), a multi-atmosphere rotary treatment system, and an adjustable tilting angle of up to 15°. Available from stock.
Sealed quartz tube rotary furnace: high-purity quartz glass or corundum 99 ceramic tubes, integrating precise temp control (±1℃), multi-atmosphere treatment, intelligent rotation. Designed for high-end powder heat treatment. Excellent sealing, ideal for research institutes/enterprises in material R&D and production.
