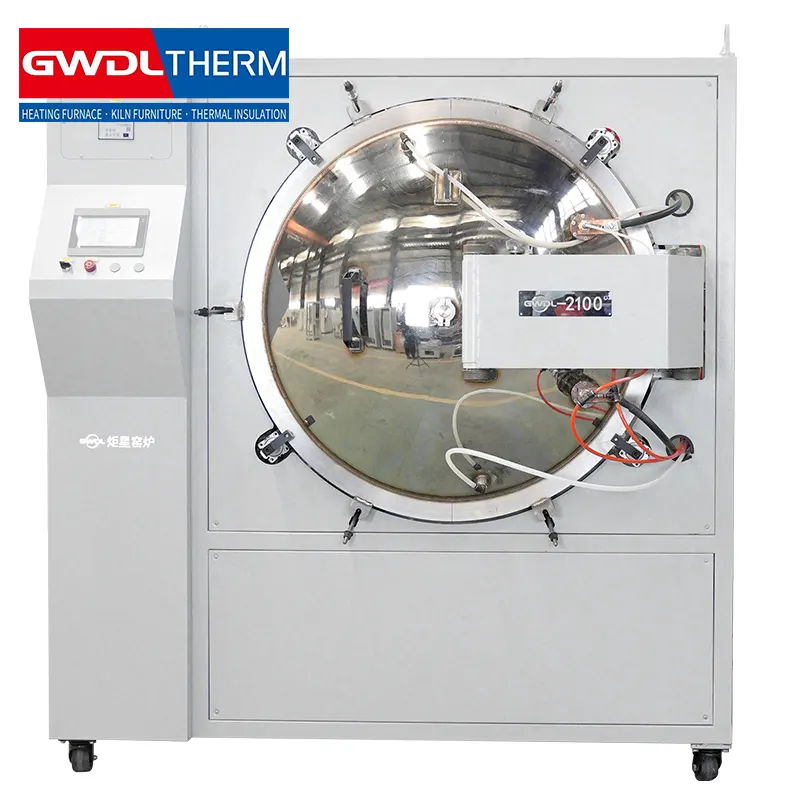

The 2100 VAF vacuum atmosphere furnace is designed for ultra-high temperature sintering under vacuum or controlled gas, delivering reliable performance for advanced materials
temperature project | 2100℃ |
| model | GWDL-2100VAF |
| Common temperature | 2100 degrees |
| High temperature working condition | When the temperature is above 1600 degrees Celsius, the furnace pressure is maintained at 100-1000 Pa by controlling the argon gas flow rate to prevent overheating. The body and the high-temperature reflective screen evaporated! |
| Voltage AC | 380V |
| Design power | 18KW |
| Furnace chamber dimensions (mm) | Depth × Width × Height: 300 × 160 × 160 (Effective thermal field) |
| Temperature control accuracy | ±1℃ (integrated circuit control, no overshoot) |
| The control range is | 50 to 2100 degrees |
| Temperature uniformity inside the furnace | ±2℃ (depending on the size of the heating chamber) |
| Temperature sensing element and temperature measurement range | Thermocouple type C, temperature range -2300 degrees Celsius |
| heating rate | The heating rate is freely adjustable, with an adjustment range of up to 20 degrees Celsius per minute (20 degrees Celsius/min non-linear ). The slowest heating rate is 1 degree per hour (1 degree/h). |
| Heating element | High-purity tungsten metal strips are used (nitrogen gas must not be introduced above 800 degrees Celsius). |
| Heating element installation location | Evenly distributed around the furnace |
Furnace body | The furnace body is machined using CNC machine tools, and undergoes polishing, grinding, pickling, phosphating, powder coating, and high-temperature baking. It has a novel and attractive appearance and possesses properties such as oxidation resistance, acid and alkali resistance, corrosion resistance, high-temperature resistance, and easy cleaning. Advantages of reason, etc. |
| Furnace body structure | The electric furnace body adopts a 304 stainless steel water-cooled double-layer structure, ensuring a good working environment. |

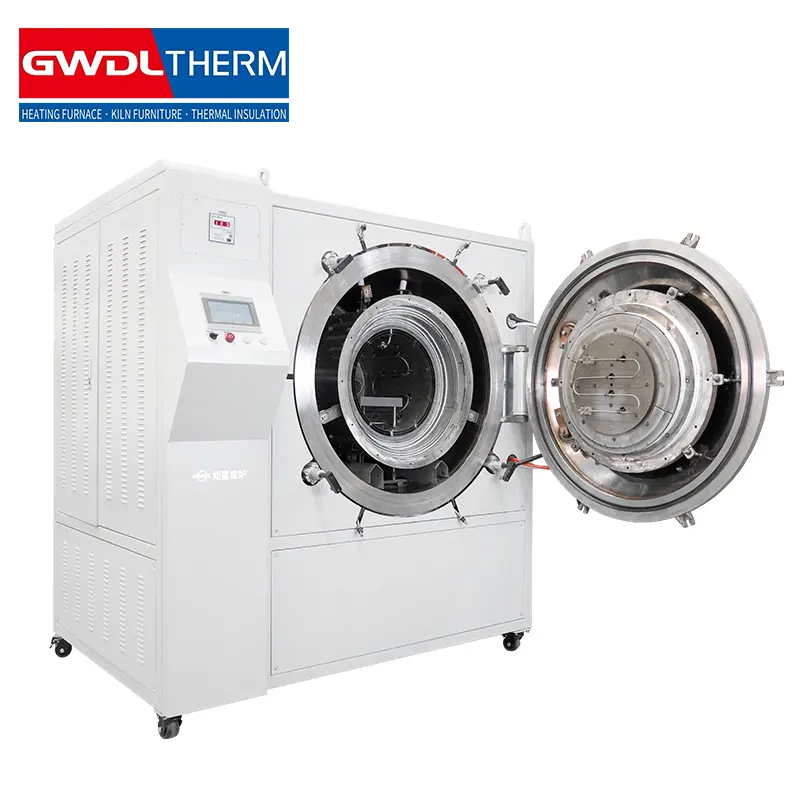

| Furnace door opening method | The furnace door opens from the side. |
