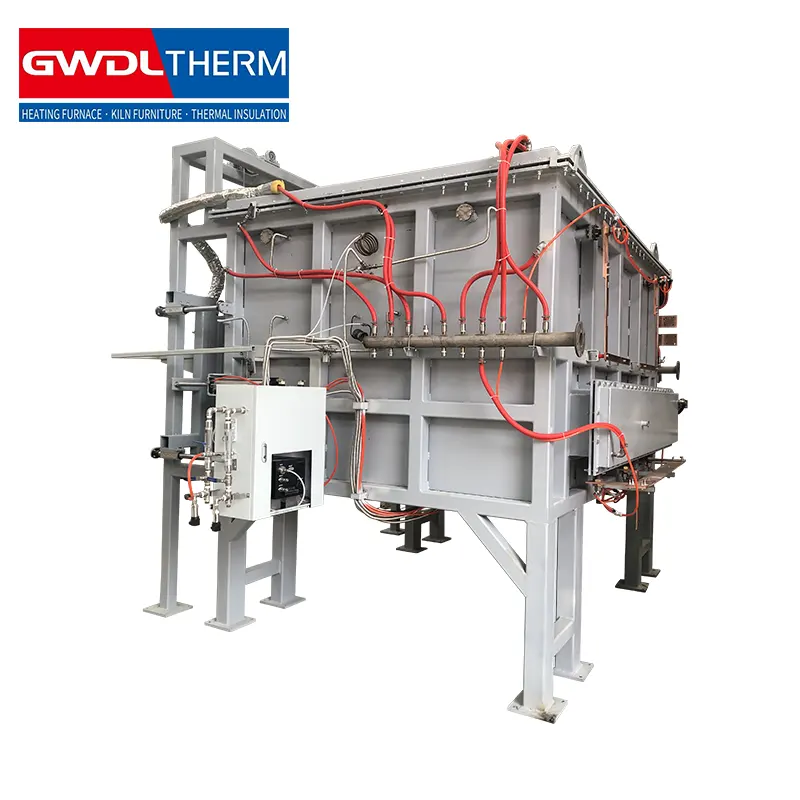

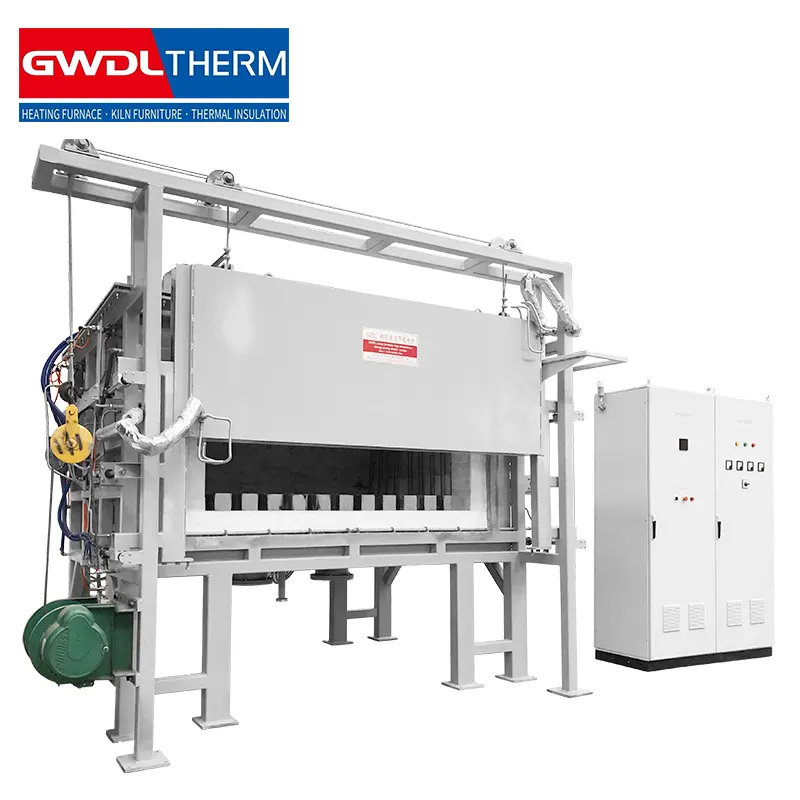

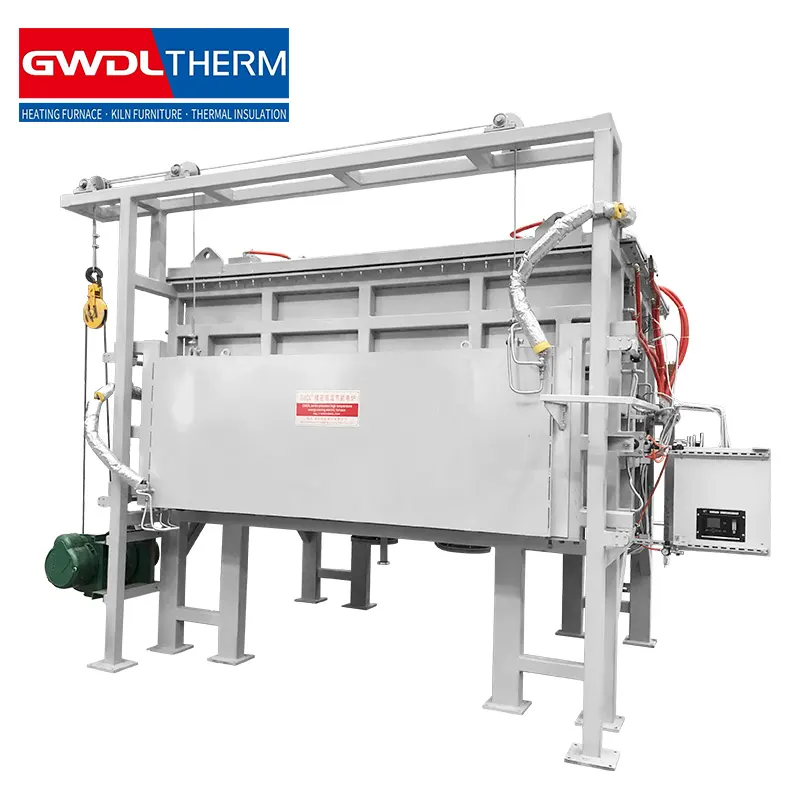

1600°C Hydrogen Electric Furnace Configuration Details

Serial Number

project

name

Specifications and Models

1

Furnace body

Second outer shell

6# steel plate + processing + lifting and positioning + locking + top water-cooled sealing

2

Mechanical parts

Track, furnace body connection, guide

3

auxiliary parts

++

4

control cabinet

KP cabinet, IP54 protection rating

5

Electrical appliances

Reusing old parts

Repurposing old parts from old furnaces (outer shell modification, electrical control system modification; furnace chamber reinstallation, water-cooled electrodes, and adjusted copper and aluminum busbars and terminals, etc.)

6

Temperature control instrument

Yu Dian 2 sets, top + bottom

7

Over-temperature alarm

2 sets of over-temperature alarms

8

Temperature communication conversion

Automatic temperature control using Siemens chips

9

transformer

Three transformers, each 90kW, totaling 270kW.

10

Denso accessories

copper and aluminum power distribution plates, copper terminals

11

thermocouple

Tungsten-rhenium thermocouple

12

Stirring wire

Chongqing

13

Voltmeter

Digital display

14

ammeter

Digital display

15

mutual inductor

0.5s

16

cable

Based on the actual usage during on-site installation

17

Fast melting

300A

18

Communication and contact

300A

19

SCR

450A power regulator

20

PLC

Siemens S7-200

twenty one

Touch screen

10-inch

twenty two

Software programming

artificial

twenty three

heat sink

ventilation window

twenty four

Axial flow fan

D150

25

Differential pressure gauge

Star Instrument

26

Inlet valve and flow meter

D22, includes two flow meters, solenoid valves, etc.

27

exhaust port

Solenoid valve + ignition device

28

Oxygen content sensor

Shanghai

29

phenolic resin board

Denso

30

left and right heating elements

Tungsten rod/Molybdenum rod

31

Lower heating element

Tungsten rod/Molybdenum rod

32

rod

Heating element wiring accessories

33

auxiliary materials

Cabinet interiors, cable trays, cable ducts, and other auxiliary materials, etc.

34

refractory

Lightweight alumina refractory bricks; standard brick purity 99.47%.

42

High-temperature energy-saving furnace

1800 fiber refractory

1800°C Ceramic Fiberboard (KG)

50

Three-layer alumina fiberboard

The weight is 0.8 times that of the inner layer.

51

Alumina insulation cotton

1350 KDFIBER

52

Alumina blanket

1550 KDFIBER

53

Furnace door lifting mechanism

1

54

Lifting

Lifting control

set

55

system

Motor + Gearbox + Frequency Converter + Machinery, etc.
