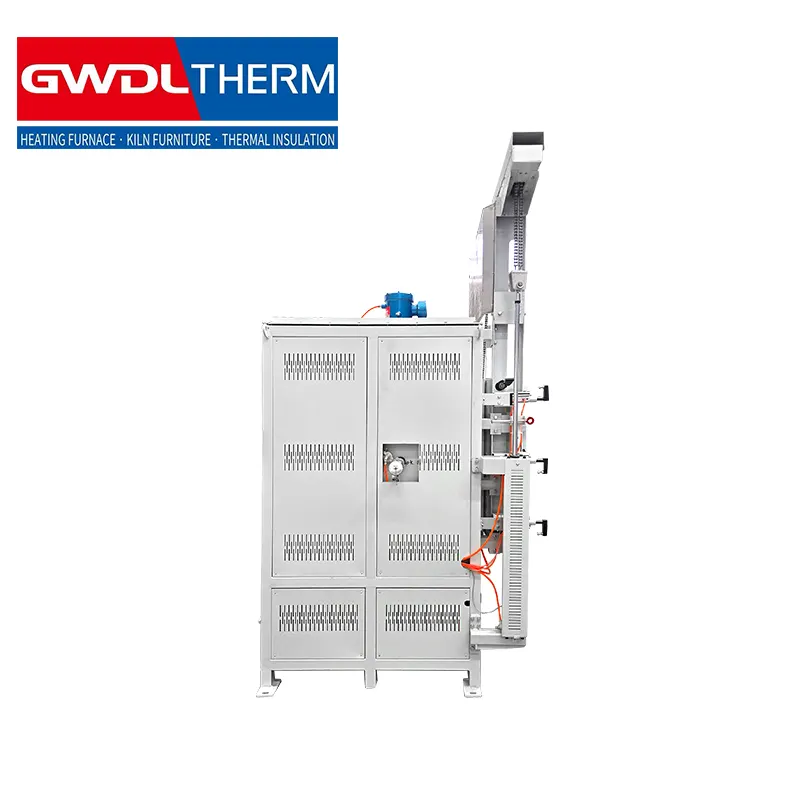

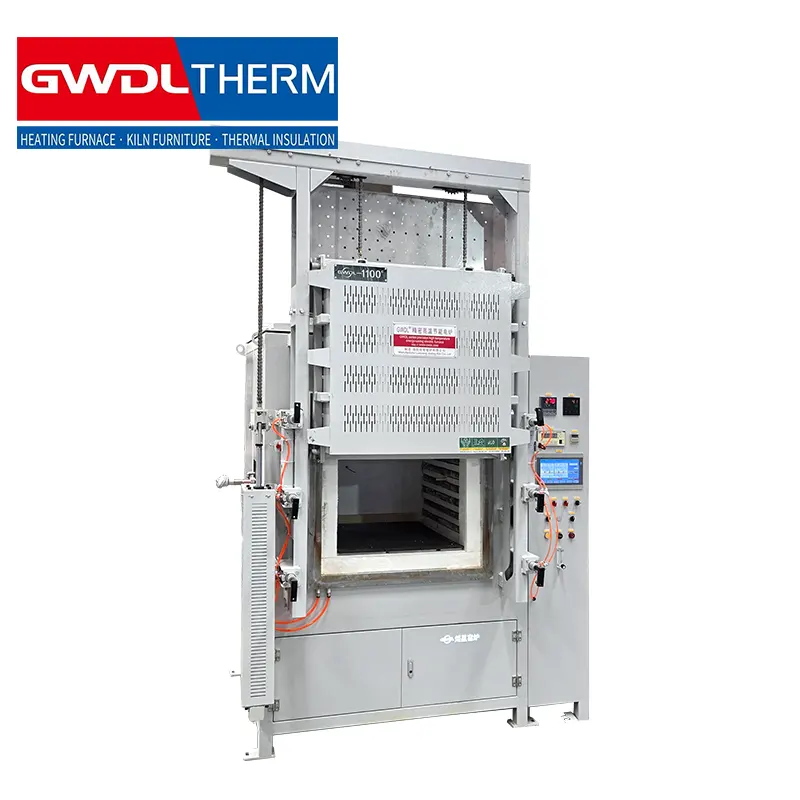

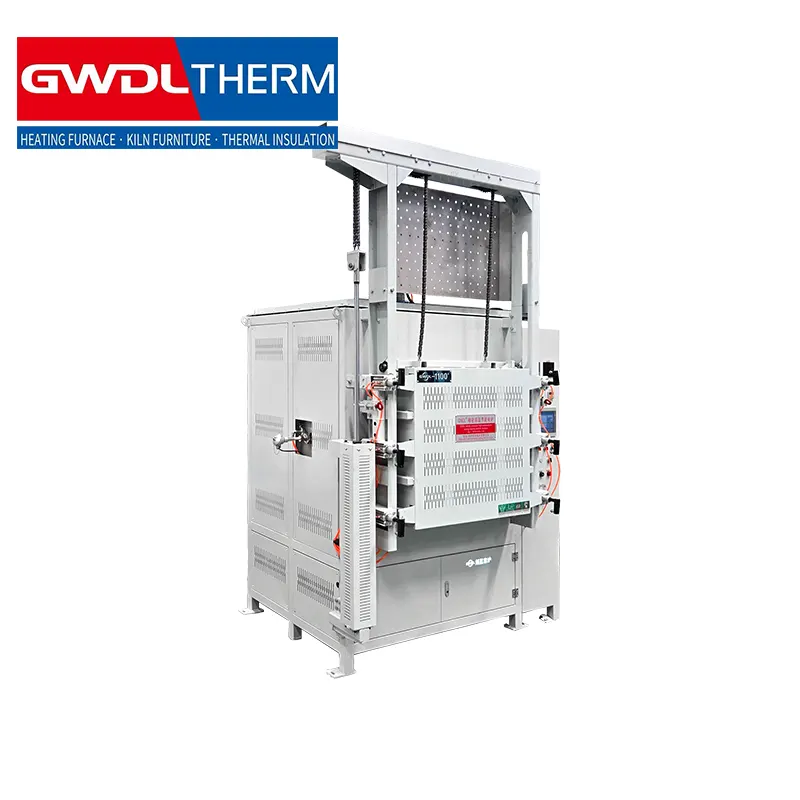

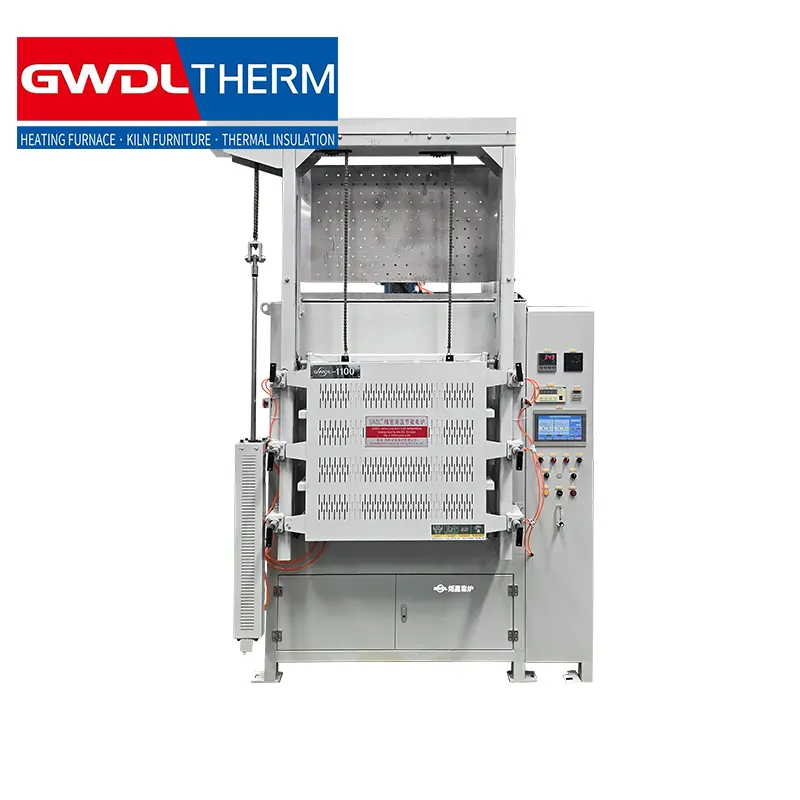

1100°C Top-Opening Box-Type Atmosphere Sealing Furnace for Laboratories

category

parameter

1100 degrees

model

GWL-1100LB

Furnace dimensions (depth-width-height) mm: 800×650×650

380V

power

50KW

80 to 1100 degrees

Thermocouple type K, temperature range 0-1320 degrees Celsius

Two dual-core thermocouples (one on the left and one on the right) + one load thermocouple, for a total of five thermocouples .

Temperature rating K, temperature measurement range 0-1250 degrees Celsius

Evenly distributed and installed on both sides and bottom of the furnace.

It uses imported Kanthal resistance wire , and the embedded installation of the resistance wire makes it easy to replace.

±1 degree (integrated circuit control, no overshoot )

±5 degrees

The function of hot air stirring: Air vanes are installed at the top of the furnace. The rotation of these vanes stirs the temperature inside the furnace.

The uniform distribution of temperature and the stepless speed regulation of the rotation speed through the frequency converter ensure uniform temperature inside the furnace.

310S stainless steel

2P chiller

Pneumatic lifting and locking; opening and closing heights controlled by a switch. The furnace body is completely sealed.

Temperature control system

Equipped with a 10-inch touchscreen for centralized control, the temperature controller adopts high-precision 0.1- level 50-segment temperature control, the touchscreen can store 15 sintering curves, the PLC adopts international first-class (brand Siemens), and the power regulator adopts an integrated type (Sichuan Yingjie) that can control multiple modes such as constant current, constant voltage, and constant power, and can communicate voltage, current, and power.

It adopts an integrated modular control unit, which has accurate control precision, and is designed with dual-loop control and dual-loop protection, and has protection against overshoot, shunt, phase loss, overvoltage, overcurrent, overtemperature, current feedback, and soft start.

It is equipped with a timer function, and an audible and visual alarm will sound when the time is up.

The heating rate is freely adjustable, with an adjustment range of: fastest heating rate 20 degrees per minute, slowest heating rate 10 degrees per hour.

1 degree per hour (1 degree /h)

It uses an imported zirconia probe with a measurement range of 10ppm-21% and includes an alarm for excessive oxygen content.

The vent is adjustable at the top DN30 with a valve.

Eight air inlets are evenly distributed on the lower left and right sides of the furnace, and a single main air inlet equipped with a flow meter is integrated into it.

The furnace bottom plate is made of 310S heat-resistant steel plate, with a bottom height of 920mm.

It employs a three-layer insulation system, consisting of: 1600 type GM30 foam ceramic bricks and 1400 type alumina (polycrystalline) fiber.

The board, type 1260 fiber blanket, has an energy-saving effect of more than 80% compared to old-fashioned electric stoves .

Furnace body

The furnace body is simply sealed and manufactured through processes such as polishing, grinding, pickling, phosphating, powder coating, and high-temperature baking.

The finished product boasts a novel and attractive appearance, and possesses advantages such as oxidation resistance, acid and alkali resistance, corrosion resistance, high temperature resistance, and easy cleaning.

For long-term use without shutting down the furnace, the outer casing temperature should be less than room temperature + 20 degrees Celsius .

One crucible tong, one pair of high-temperature gloves

The electric furnace comes with a one-year free warranty, but the heating element is not covered by the warranty (it will be replaced free of charge if it fails naturally within three months ).

1. To avoid affecting the lifespan of the electric furnace, we recommend that the maximum heating and cooling rates be less than 20°C.

/min (Rapid heating will shorten the lifespan of the heating element ).

2. This box furnace does not use a vacuum sealing structure, so flammable and explosive gases must not be introduced.

3. After a period of use, minor cracks may appear in the furnace chamber of this box furnace. This is normal and will not affect its use. It can be repaired with an alumina coating.

4. It is not recommended to introduce corrosive gases. If you need to introduce highly corrosive gases such as sulfur (S) or sodium (Na ), please inform us in advance so that we can perform special treatment on the furnace.

5. High-temperature solution must not leak onto the furnace bottom. To prevent this, a pad or alumina powder can be used for isolation.

6. The instrument should be placed in a well-ventilated, dry place.

Packing list

One electric furnace, one crucible tong, one pair of high-temperature gloves, one instruction manual, one certificate of conformity, and one acceptance report ( issued) .

One factory inspection report and one sales delivery note.

Shipping Information

1. The electric furnace is packaged in two layers: it is wrapped in sponge paper, then wrapped in plastic film, and finally fixed with an iron frame as a base.

2. Free domestic door-to-door delivery (free delivery within city limits )

3. We will be responsible for any damage that occurs during the transportation of the electric furnace.

4. Logistics methods: transportation by car, rail, ship (foreign trade export), and air (foreign trade export). For nearby locations, our company will arrange dedicated vehicles for transportation (packaging is wooden pallets and cardboard boxes).
