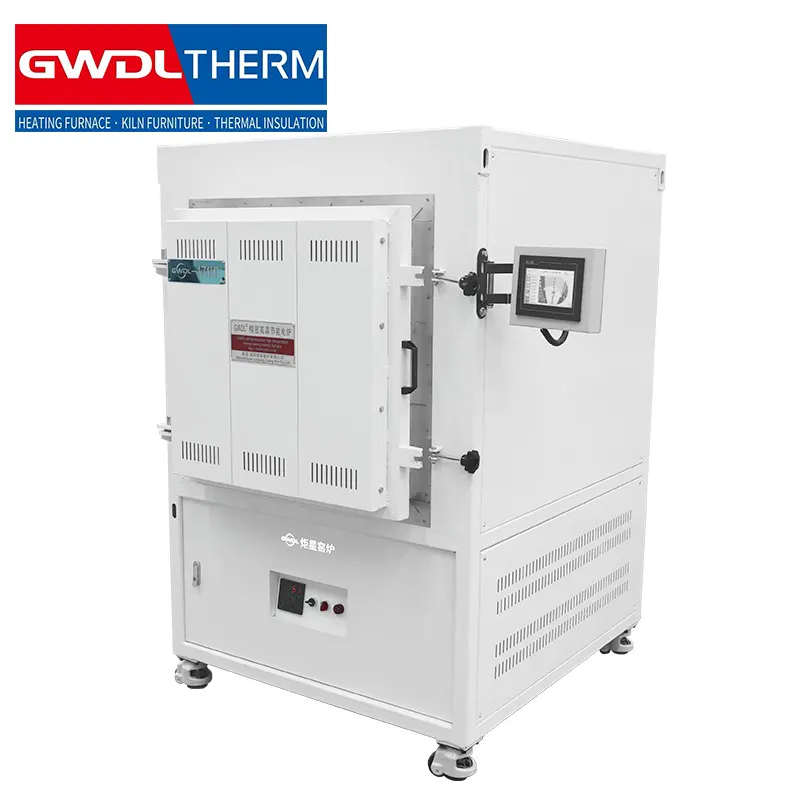

1700°C High-Temperature Box-Type Resistance Muffle Furnace System

describe

The 1700°C high-temperature box-type resistance muffle furnace system delivers precise temperature control, excellent thermal uniformity, and reliable performance for sintering, heat treatment, and advanced material research applications.

Product Features

Furnace body structure and materials

• The furnace features an advanced air-cooled double-layer carbon steel body structure designed to improve thermal efficiency, operational safety, and equipment longevity. Integrated air-guiding baffles create a continuous cooling airflow pathway throughout the furnace shell, ensuring effective heat dissipation during high-temperature operation.
• The circulating cold air efficiently cools critical conductive components connected to the heating elements before being discharged from the furnace body. This design significantly reduces the risk of high-temperature oxidation, helping maintain stable electrical conductivity and extending the service life of key heating system components.
• In addition to enhancing equipment durability, the double-layer cooling structure lowers the external surface temperature of the furnace, creating a safer and more comfortable working environment. The optimized airflow management also contributes to improved system reliability, reduced maintenance requirements, and stable long-term performance in demanding laboratory and industrial high-temperature applications.

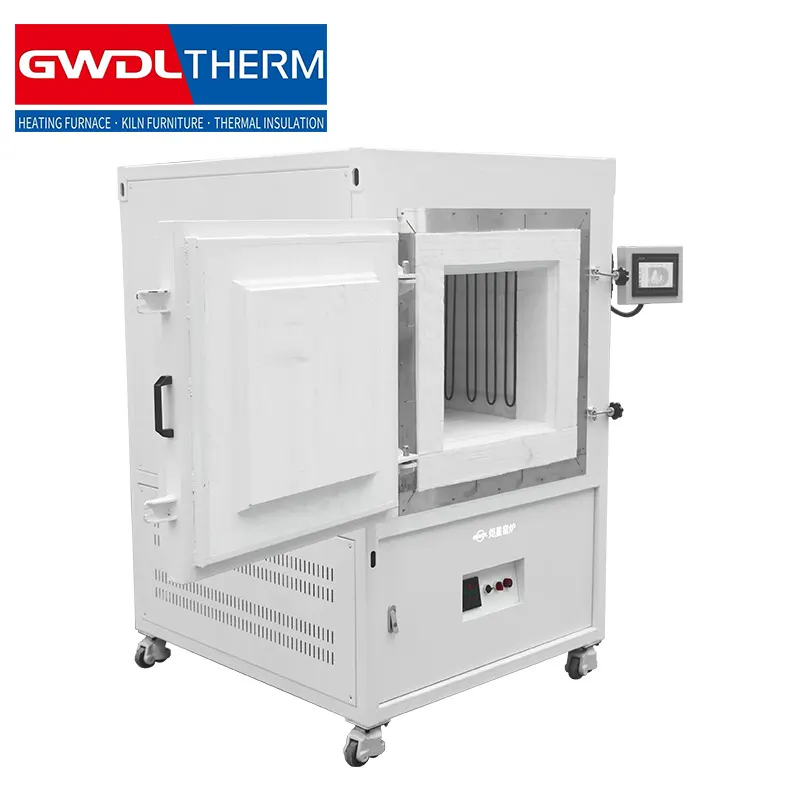

Door opening method

• The furnace is equipped with a user-friendly door mechanism featuring a 180° axial opening and 360° rotation capability, providing maximum accessibility to the chamber. This design allows operators to load and unload materials safely and efficiently while minimizing the risk of contact with hot surfaces during high-temperature operations.
• A side-mounted spring-loaded locking system ensures secure door closure and reliable sealing performance. The spring compensation structure automatically absorbs the thermal expansion and contraction of refractory materials during heating and cooling cycles, maintaining consistent sealing pressure without causing structural stress.
• This innovative door design not only improves operational convenience but also enhances thermal efficiency by reducing heat leakage from the furnace chamber. The flexible locking mechanism helps preserve chamber integrity, extends refractory service life, and ensures stable temperature control throughout the heating process. Combined with its robust construction and intelligent sealing technology, the system delivers improved safety, energy efficiency, and long-term reliability for demanding laboratory and industrial heat treatment applications.

Temperature profile setting

• The furnace is equipped with an intelligent temperature control system designed for high-precision thermal processing. It supports multiple control modes, including standard PID, AI-based APID, and MPT algorithms, allowing users to select the most suitable regulation method for different heating requirements. Built-in self-tuning and self-learning functions automatically optimize control parameters, ensuring stable temperature regulation with minimal deviation.
• The controller features 30-segment programmable temperature profiles, enabling precise control of heating, holding, and cooling stages. Users can freely set temperature rise and fall rates with customized slopes to meet complex process requirements. Advanced operational functions such as jump (loop), run, pause, and stop provide greater flexibility, while program parameters can be modified during operation without interrupting the process.
• By utilizing AI-based curve-fitting technology, the system delivers smooth temperature transitions with virtually no overshoot or undershoot. This ensures excellent temperature stability, improved process repeatability, and enhanced product quality. The intelligent control platform is ideal for laboratory research, material development, sintering, heat treatment, and other high-temperature applications requiring accurate and reliable thermal management.

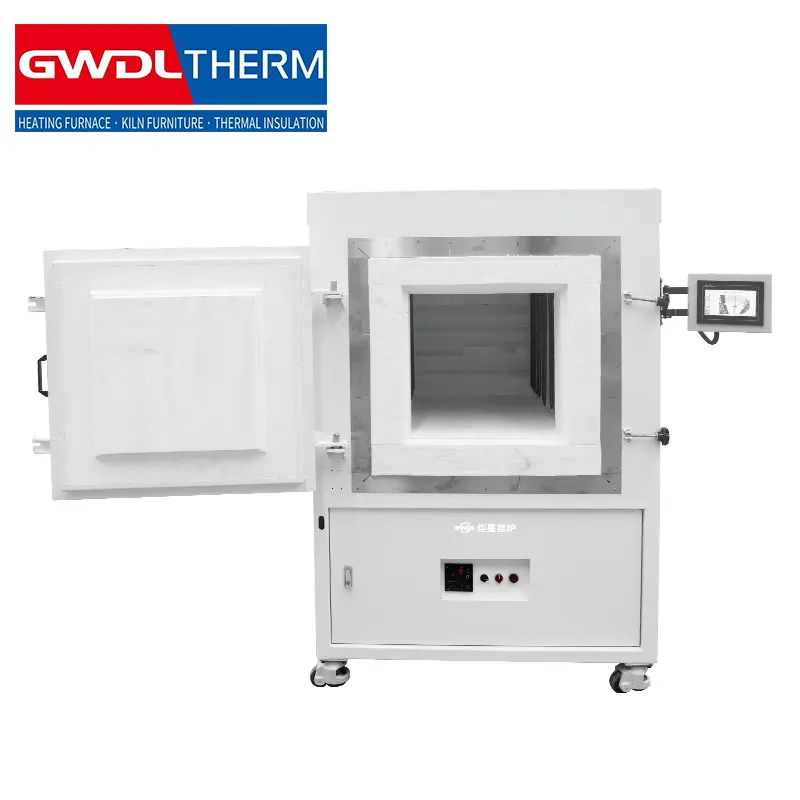

Refractory insulation materials

• The furnace lining is manufactured from vacuum-formed high-purity alumina lightweight material, providing exceptional thermal performance and long-term durability in demanding high-temperature environments. This advanced insulation structure is designed to withstand elevated operating temperatures while maintaining excellent structural stability throughout repeated heating cycles.
• Featuring low heat storage characteristics, the lining enables faster heating and cooling responses, improving process efficiency and reducing energy consumption. Its outstanding thermal shock resistance allows the furnace to tolerate rapid temperature changes without cracking, deformation, or performance degradation, ensuring reliable operation over an extended service life.
• The high-purity alumina composition effectively prevents slag shedding and material contamination, helping maintain a clean furnace chamber and consistent processing conditions. In addition, the lightweight insulation structure significantly reduces heat loss, resulting in superior heat retention and enhanced temperature uniformity throughout the working zone.
• By combining high-temperature resistance, excellent insulation capability, low thermal mass, and exceptional durability, this furnace lining improves operational efficiency, lowers maintenance requirements, and delivers stable performance for laboratory research, material processing, heat treatment, and advanced industrial thermal applications.

Customizable specifications and models

Customizable specifications and models are available to meet diverse process requirements. Chamber size, temperature range, atmosphere system, and control functions can be tailored for laboratory and industrial applications.

Application areas

• The 1700°C high-temperature box-type resistance muffle furnace system is widely used for advanced ceramic sintering, powder metallurgy, crystal growth, rare earth material processing, and high-temperature material research. It is suitable for universities, research institutes, laboratories, and industrial production facilities requiring precise thermal control.
• The furnace is also ideal for heat treatment, annealing, calcination, electrode material preparation, semiconductor research, and new energy material development. Its stable high-temperature performance and accurate temperature regulation make it an excellent solution for demanding scientific and industrial applications.

Why Choose Us

• Precise 1700°C temperature control for consistent results.
• Energy-efficient insulation reduces power consumption and heat loss.
• Custom furnace solutions with professional technical support.

FAQ

Q1: What is the maximum temperature of the furnace?

A: The furnace reaches up to 1700°C, making it suitable for advanced ceramic sintering and high-temperature material processing.

Q2: What industries commonly use this muffle furnace?

A: It is widely used in laboratories, universities, research institutes, metallurgy, ceramics, and new material development.

Q3: Does the furnace support programmable temperature control?

A: Yes, the intelligent controller supports multi-segment programming for precise heating, holding, and cooling processes.

Q4: How does the furnace ensure temperature stability?

A: Advanced insulation materials and intelligent PID control provide excellent temperature uniformity and stable operation.

Q5: Can the furnace be customized for specific applications?

A: Yes, chamber size, temperature range, control systems, and special configurations can be customized to meet process requirements.
