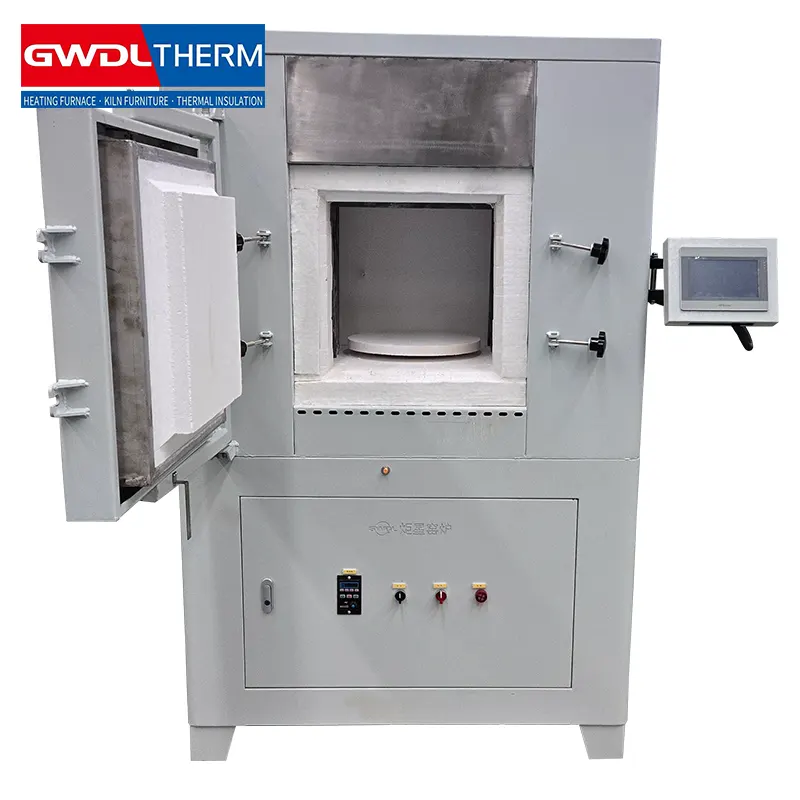

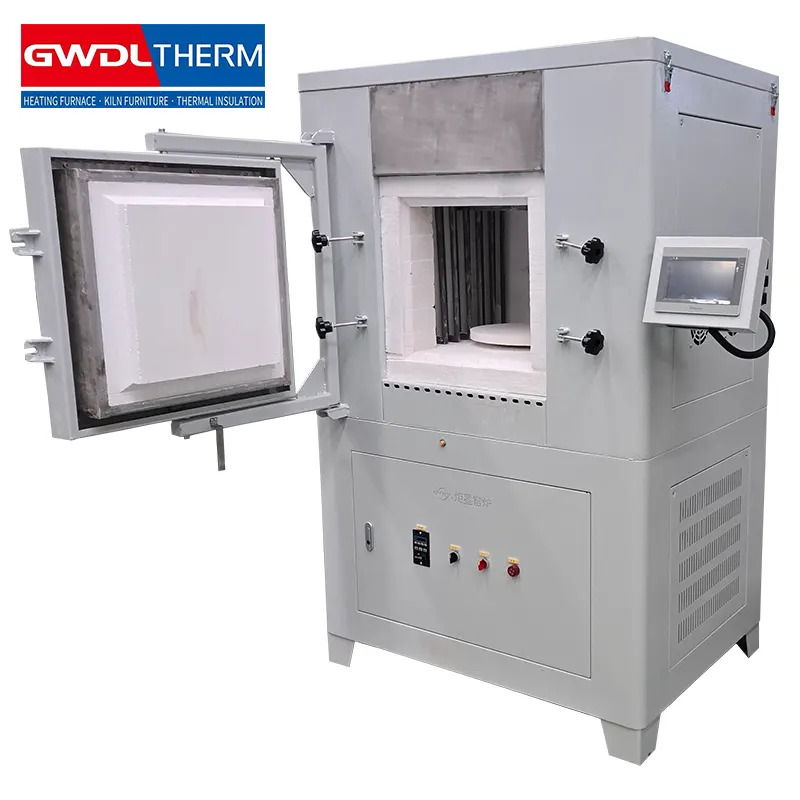

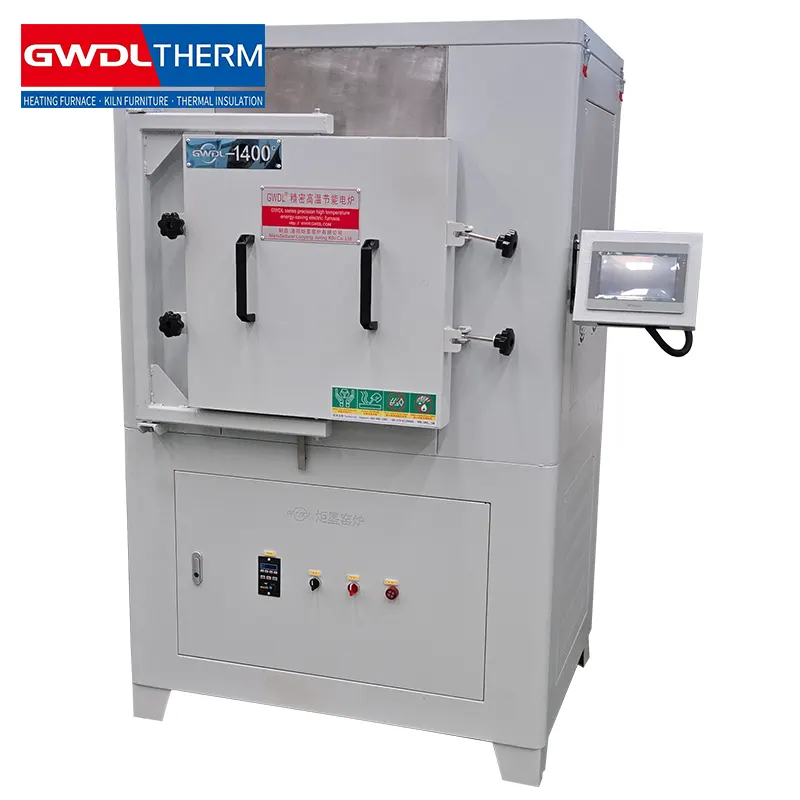

1400°C Box-Type Electric Furnace with Rotating Charging Platform

Furnace size

≥400*400*400 mm

highest temperature

≥1400℃

Temperature control accuracy

Better than or equal to ±1 ℃

Sample platform

Equipped with electric rotation function, sample platform diameter ≥360 mm

Temperature uniformity

Better than or equal to ±3℃ (within the effective furnace volume)

cooling rate

Temperature drop rate adjustable from 0.1 to 5℃/min within the temperature range of 500℃-1200℃.

Temperature controller

The standard configuration includes a digital controller that can be programmed based on heating and cooling rates and time. It features automatic temperature control and time management, and the digital control system can accurately set and display the temperature.

Protection function

It features an automatic heating stop function when the door is opened, an alarm system for abnormal temperature and equipment malfunction, and automatic power-off protection against leakage.

High temperature protection

The machine's outer surface temperature is <50℃ at the highest operating temperature.

Process security system

Passwords can be set to protect process parameters.
