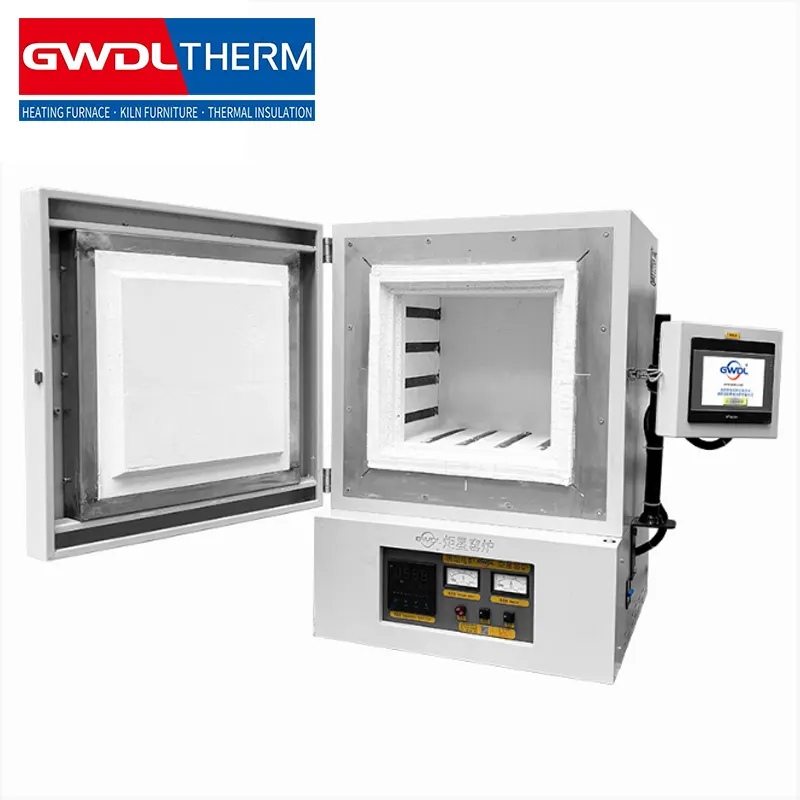

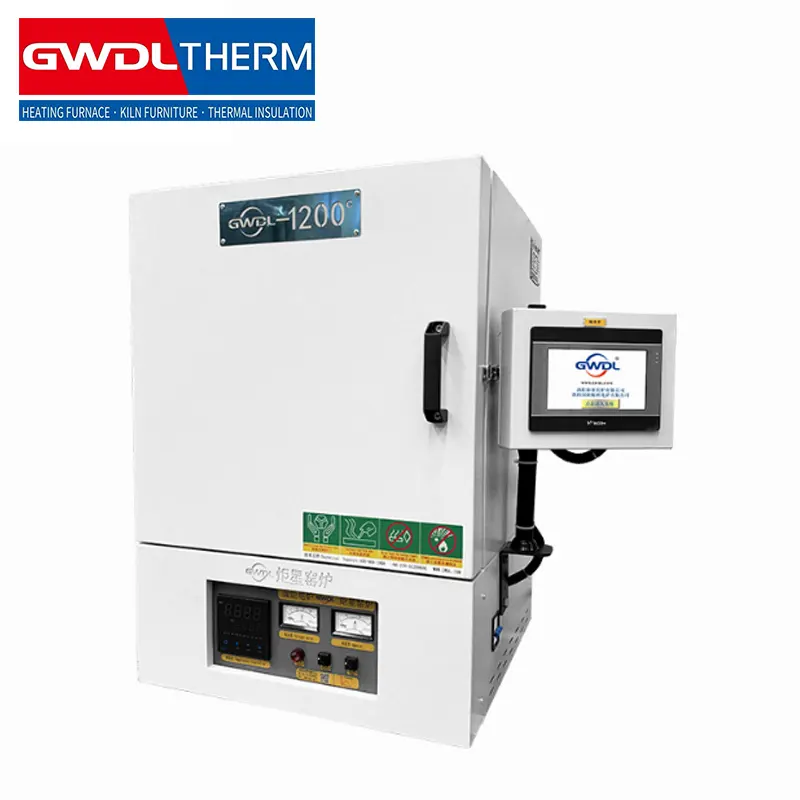

1200°C Mini Box-Type Electric Furnace with touchscreen control offers precise temperature regulation, compact design, and user-friendly operation for laboratory heat treatment and material testing
| temperature | Specifications and Models L | Furnace dimensions (length, width, height) in mm | External dimensions (mm) | Voltage ACV | power kW | weight (kg) |
| 1200 degrees | GWDL-1200XA-A-4.5L | 200×150×150 | L=570, W=400, H=710 | 220V | 2.5 | 70 |
| GWDL-1200XA-A-7.2L | 300×200×120 | L=670, W=480, H=683 | 220 | 3.5 | 85 | |
| GWDL-1200XA-A-12L | 300×200×200 | L=670, W=480, H=763 | 220 | 5 | 90 | |
| GWDL-1200XA-A-16L | 400×250×160 | L=770, W=530, H=723 | 380 | 7 | 110 | |
| GWDL-1200XA-A-27L | 300×300×300 | L=670, W=580, H=863 | 380 | 9 | 125 | |
| GWDL-1200XA-A-30L | 500×300×200 | L=870, W=580, H=763 | 380 | 10 | 130 | |
| GWDL-1200XA-A-45L | 500×300×300 | L=870, W=580, H=864 | 380 | 12 | 140 | |
| 1400 degrees | GWDL-1400XA-A-4.5L | 200×150×150 | L=570, W=400, H=710 | 220V | 4 | 90 |
| GWDL-1400XA-A-7.2L | 300×200×120 | L=580, W=450, H=530 | 220 | 5 | 100 | |
| GWDL-1400XA-A-12L | 300×200×200 | L=580, W=450, H=610 | 220/380 | 8 | 110 | |
| GWDL-1400XA-A-16L | 400×250×160 | L=680, W=500, H=580 | 380 | 10 | 130 | |
| GWDL-1400XA-A-27L | 300×300×300 | L=680, W=500, H=581 | 380 | 12 | 150 | |
| GWDL-1400XA-A-30L | 500×300×200 | L=780, W=550, H=610 | 380 | 15 | 150 | |
| GWDL-1400XA-A-45L | 500×300×300 | L=780, W=550, H=730 | 380 | 18 | 180 | |
| 1600 degrees | GWDL-1600XA-A-4.5L | 200×150×150 | L=570, W=400, H=710 | 220V | 4 | 180 |
| GWDL-1600XA-A-7.2L | 300×200×120 | L=770, W=632, H=905 | 220 | 5 | 200 | |
| GWDL-1600XA-A-12L | 300×200×200 | L=770, W=632, H=985 | 380 | 8 | 220 | |
| GWDL-1600XA-A-16L | 400×250×160 | L=870, W=682, H=945 | 380 | 10 | 240 | |
| GWDL-1600XA-A-27L | 300×300×300 | L=770, W=732, H=1085 | 380 | 12 | 250 | |
| GWDL-1600XA-A-27L | 500×300×200 | L=970, W=732, H=985 | 380 | 15 | 260 | |
| GWDL-1600XA-A-45L | 500×300×300 | L=970, W=732, H=1085 | 380 | 18 | 300 | |
| 1700 degrees | GWDL-1700XA-A-4.5L | 200×150×150 | L=570, W=400, H=710 | 220V | 4 | 180 |
| GWDL-1700XA-A-7.2L | 300×200×120 | L=770, W=632, H=905 | 220 | 5 | 200 | |
| GWDL-1700XA-A-12L | 300×200×200 | L=770, W=632, H=985 | 380 | 8 | 240 | |
| GWDL-1700XA-A-16L | 400×250×160 | L=870, W=682, H=945 | 380 | 10 | 260 | |
| GWDL-1700XA-A-27L | 300×300×300 | L=770, W=732, H=1085 | 380 | 12 | 280 | |
| GWDL-1700XA-A-30L | 500×300×200 | L=970, W=732, H=985 | 380 | 15 | 280 | |
| GWDL-1700XA-A-45L | 500×300×300 | L=970, W=732, H=1085 | 380 | 18 | 320 | |
| 1800 degrees | GWDL-1800XA-A-4.5L | 200×150×150 | L=570, W=400, H=710 | 220V | 4 | 180 |
| GWDL-1800XA-A-7.2L | 300×200×120 | L=770, W=632, H=905 | 220 | 5 | 200 | |
| GWDL-1800XA-A-12L | 300×200×200 | L=770, W=632, H=985 | 380 | 8 | 240 | |
| GWDL-1800XA-A-16L | 400×250×160 | L=870, W=682, H=945 | 380 | 10 | 260 | |
| GWDL-1800XA-A-27L | 300×300×300 | L=770, W=732, H=1085 | 380 | 12 | 280 | |
| GWDL-1800XA-A-30L | 500×300×200 | L=970, W=732, H=985 | 380 | 15 | 2 80 | |
| GWDL-1800XA-A-45L | 500×300×300 | L=970, W=732, H=1085 | 380 | 18 | 320 | |
| 1900 degrees | GWDL-1900XA-A-4.5L | 200×150×150 | L=570, W=400, H=710 | 220V | 4 | 180 |
| GWDL-1900XA-A-7.2L | 300×200×120 | L=770, W=632, H=905 | 220 | 5 | 200 | |
| GWDL-1900XA-A-12L | 300×200×200 | L=770, W=632, H=985 | 380 | 8 | 240 | |
| GWDL-1900XA-A-16L | 400×250×160 | L=870, W=682, H=945 | 380 | 10 | 260 | |
| GWDL-1900XA-A-27L | 300×300×300 | L=770, W=732, H=1085 | 380 | 12 | 280 | |
| GWDL-1900XA-A-30L | 500×300×200 | L=970, W=732, H=985 | 380 | 15 | 280 | |
| GWDL-1900XA-A-45L | 500×300×300 | L=970, W=732, H=1085 | 380 | 18 | 320 | |
| Note: | 1. All models listed above are in stock. Special models with furnace dimensions can be customized according to customer requirements (delivery time 7-10 days)! | |||||
| 2. Dimensions are in millimeters (mm). The dimensions shown are for reference only; the actual dimensions shall prevail. | ||||||
