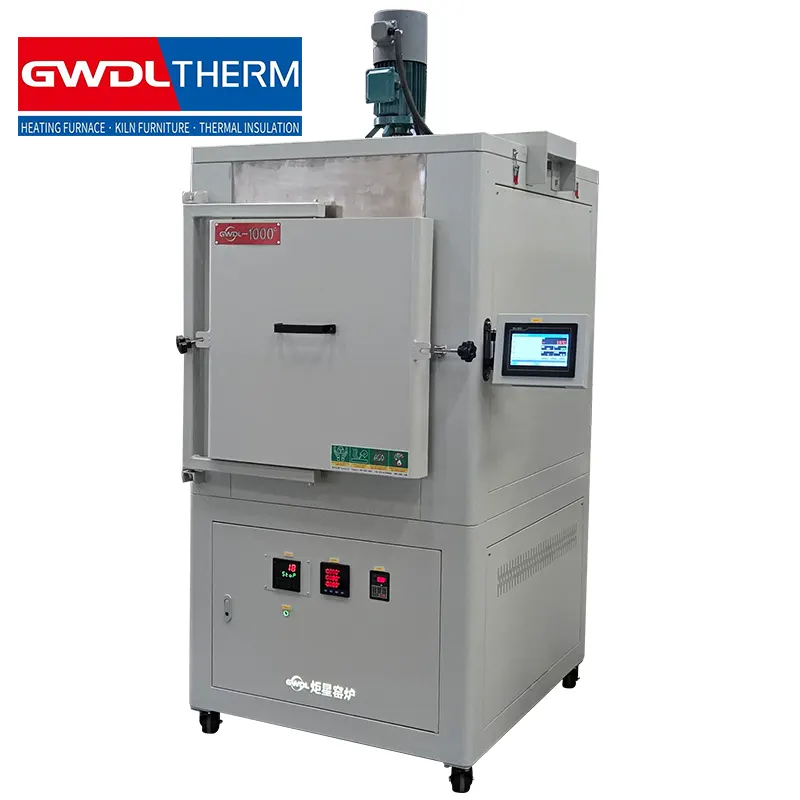

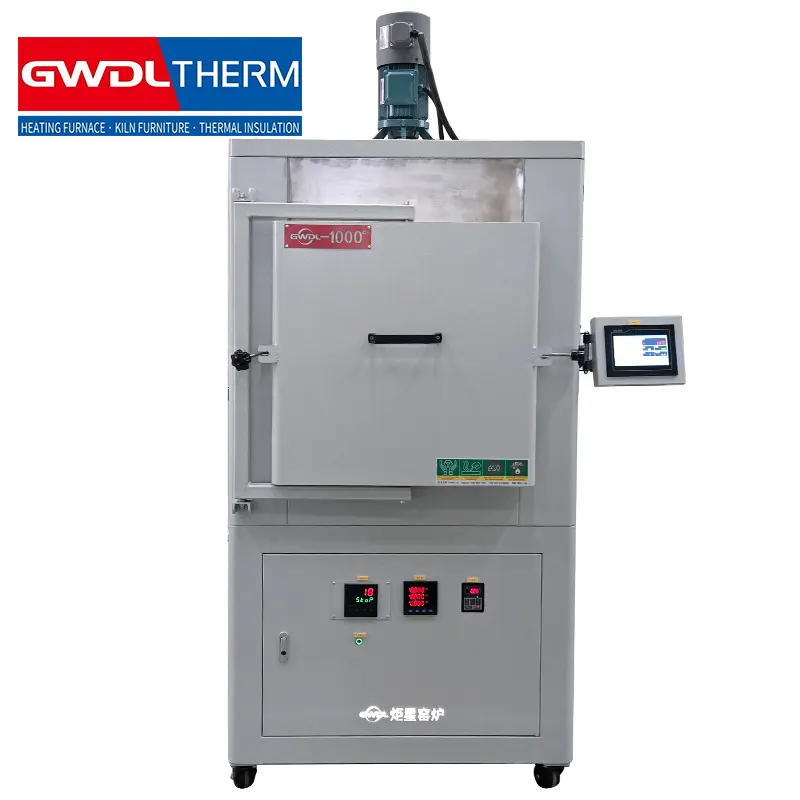

The 1200°C box-type resistance furnace is designed for uniform high-temperature heat treatment, featuring a top-mounted stirring fan to enhance temperature consistency.
| temperature | Specifications and Models L | Furnace dimensions (length, width, height) in mm | External dimensions (mm) | power kW | weight (kg) |
| 1200 degrees | GWDL-1200XL-A-27L | 300×300×300 | L=900, W=800, H=1650 | 9 | 125 |
| GWDL-1200XL-A-30L | 500×300×200 | L=1000, W=800, H=1550 | 10 | 130 | |
| GWDL-1200XL-A-45L | 500×300×300 | L=1000, W=800, H=1650 | 12 | 140 | |
| GWDL-1200XL-A-64L | 400×400×400 | L=1100, W=900, H=1750 | 15 | 240 | |
| GWDL-1200XL-A-96L | 600×400×400 | L=1100, W=900, H=1750 | 18 | 260 | |
| GWDL-1200XL-A-125L | 500×500×500 | L=1300, W=1000, H=1849 | 20 | 300 | |
| GWDL-1200XL-A-200L | 800×500×500 | L=1300, W=1000, H=1850 | twenty four | 350 | |
| GWDL-1200XL-A-216L | 600×600×600 | L=1100, W=1100, H=2000 | 26 | 400 | |
| GWDL-1200XL-A-270L | 900×600×500 | L=1400, W=1100, H=1850 | 36 | 450 | |
| GWDL-1200XL-A-288L | 800×600×600 | L=1300, W=1100, H=2000 | 40 | 480 | |
| GWDL-1200XL-A-340L | 700×700×700 | L=1600, W=1400, H=2100 | 43 | 500 | |
| GWDL-1200XL-A-360L | 1000×600×600 | L=1600, W=1300, H=2000 | 45 | 550 | |
| GWDL-1200XL-A-490L | 1000×700×700 | L=1600, W=1400, H=2100 | 65 | 650 | |
| GWDL-1200XL-A-512L | 800×800×800 | L=1800, W=1500, H=2199 | 70 | 700 | |
| GWDL-1200XL-A-768L | 1200×800×800 | L=1800, W=1500, H=2200 | 95 | 850 | |
| 1400 degrees | GWDL-1400XL-A-27L | 300×300×300 | L=900, W=800, H=1650 | 12 | 125 |
| GWDL-1400XL-A-30L | 500×300×200 | L=1000, W=800, H=1550 | 13 | 130 | |
| GWDL-1400XL-A-45L | 500×300×300 | L=1000, W=800, H=1650 | 15 | 140 | |
| GWDL-1400XL-A-64L | 400×400×400 | L=1100, W=900, H=1750 | 18 | 240 | |
| GWDL-1400XL-A-96L | 600×400×400 | L=1100, W=900, H=1750 | twenty four | 260 | |
| GWDL-1400XL-A-125L | 500×500×500 | L=1300, W=1000, H=1849 | 30 | 300 | |
| GWDL-1400XL-A-200L | 800×500×500 | L=1300, W=1000, H=1850 | 35 | 350 | |
| GWDL-1400XL-A-216L | 600×600×600 | L=1100, W=1100, H=2000 | 36 | 400 | |
| GWDL-1400XL-A-270L | 900×600×500 | L=1400, W=1100, H=1850 | 45 | 450 | |
| GWDL-1400XL-A-288L | 800×600×600 | L=1300, W=1100, H=2000 | 50 | 480 | |
| GWDL-1400XL-A-340L | 700×700×700 | L=1600, W=1400, H=2100 | 55 | 500 | |
| GWDL-1400XL-A-360L | 1000×600×600 | L=1600, W=1300, H=2000 | 60 | 550 | |
| GWDL-1400XL-A-490L | 1000×700×700 | L=1600, W=1400, H=2100 | 75 | 650 | |
| GWDL-1400XL-A-512L | 800×800×800 | L=1800, W=1500, H=2199 | 90 | 700 | |
| GWDL-1400XL-A-768L | 1200×800×800 | L=1800, W=1500, H=2200 | 120 | 850 | |
| 1600 degrees | GWDL-1600XL-A-27L | 300×300×300 | L=900, W=800, H=1650 | 12 | 125 |
| GWDL-1600XL-A-30L | 500×300×200 | L=1000, W=800, H=1550 | 13 | 130 | |
| GWDL-1600XL-A-45L | 500×300×300 | L=1000, W=800, H=1650 | 15 | 140 | |
| GWDL-1600XL-A-64L | 400×400×400 | L=1100, W=900, H=1750 | 18 | 240 | |
| GWDL-1600XL-A-96L | 600×400×400 | L=1100, W=900, H=1750 | twenty four | 260 | |
| GWDL-1600XL-A-125L | 500×500×500 | L=1300, W=1000, H=1849 | 30 | 300 | |
| GWDL-1600XL-A-200L | 800×500×500 | L=1300, W=1000, H=1850 | 35 | 350 | |
| GWDL-1600XL-A-216L | 600×600×600 | L=1100, W=1100, H=2000 | 36 | 400 | |
| GWDL-1600XL-A-270L | 900×600×500 | L=1400, W=1100, H=1850 | 45 | 450 | |
| GWDL-1600XL-A-288L | 800×600×600 | L=1300, W=1100, H=2000 | 50 | 480 | |
| GWDL-1600XL-A-340L | 700×700×700 | L=1600, W=1400, H=2100 | 55 | 500 | |
| GWDL-1600XL-A-360L | 1000×600×600 | L=1600, W=1300, H=2000 | 60 | 550 | |
| GWDL-1600XL-A-490L | 1000×700×700 | L=1600, W=1400, H=2100 | 75 | 650 | |
| GWDL-1600XL-A-512L | 800×800×800 | L=1800, W=1500, H=2199 | 90 | 700 | |
| GWDL-1600XL-A-768L | 1200×800×800 | L=1800, W=1500, H=2200 | 120 | 850 | |
| 1700 degrees | GWDL-1700XL-A-27L | 300×300×300 | L=900, W=800, H=1650 | 15 | 125 |
| GWDL-1700XL-A-30L | 500×300×200 | L=1000, W=800, H=1550 | 15 | 130 | |
| GWDL-1700XL-A-45L | 500×300×300 | L=1000, W=800, H=1650 | 18 | 140 | |
| GWDL-1700XL-A-64L | 400×400×400 | L=1100, W=900, H=1750 | twenty four | 240 | |
| GWDL-1700XL-A-96L | 600×400×400 | L=1100, W=900, H=1750 | 30 | 260 | |
| GWDL-1700XL-A-125L | 500×500×500 | L=1300, W=1000, H=1849 | 36 | 300 | |
| GWDL-1700XL-A-200L | 800×500×500 | L=1300, W=1000, H=1850 | 40 | 350 | |
| GWDL-1700XL-A-216L | 600×600×600 | L=1100, W=1100, H=2000 | 40 | 400 | |
| GWDL-1700XL-A-270L | 900×600×500 | L=1400, W=1100, H=1850 | 55 | 450 | |
| GWDL-1700XL-A-288L | 800×600×600 | L=1300, W=1100, H=2000 | 60 | 480 | |
| GWDL-1700XL-A-340L | 700×700×700 | L=1600, W=1400, H=2100 | 65 | 500 | |
| GWDL-1700XL-A-360L | 1000×600×600 | L=1600, W=1300, H=2000 | 75 | 550 | |
| GWDL-1700XL-A-490L | 1000×700×700 | L=1600, W=1400, H=2100 | 90 | 650 | |
| GWDL-1700XL-A-512L | 800×800×800 | L=1800, W=1500, H=2199 | 120 | 700 | |
| GWDL-1700XL-A-768L | 1200×800×800 | L=1800, W=1500, H=2200 | 150 | 850 | |
| 1800 degrees | GWDL-1800XL-A-27L | 300×300×300 | L=900, W=800, H=1650 | 15 | 125 |
| GWDL-1800XL-A-30L | 500×300×200 | L=1000, W=800, H=1550 | 15 | 130 | |
| GWDL-1800XL-A-45L | 500×300×300 | L=1000, W=800, H=1650 | 18 | 140 | |
| GWDL-1800XL-A-64L | 400×400×400 | L=1100, W=900, H=1750 | twenty four | 240 | |
| GWDL-1800XL-A-96L | 600×400×400 | L=1100, W=900, H=1750 | 30 | 260 | |
| GWDL-1800XL-A-125L | 500×500×500 | L=1300, W=1000, H=1849 | 36 | 300 | |
| GWDL-1800XL-A-200L | 800×500×500 | L=1300, W=1000, H=1850 | 40 | 350 | |
| GWDL-1800XL-A-216L | 600×600×600 | L=1100, W=1100, H=2000 | 40 | 400 | |
| GWDL-1800XL-A-270L | 900×600×500 | L=1400, W=1100, H=1850 | 55 | 450 | |
| GWDL-1800XL-A-288L | 800×600×600 | L=1300, W=1100, H=2000 | 60 | 480 | |
| GWDL-1800XL-A-340L | 700×700×700 | L=1600, W=1400, H=2100 | 65 | 500 | |
| GWDL-1800XL-A-360L | 1000×600×600 | L=1600, W=1300, H=2000 | 75 | 550 | |
| GWDL-1800XL-A-490L | 1000×700×700 | L=1600, W=1400, H=2100 | 90 | 650 | |
| GWDL-1800XL-A-512L | 800×800×800 | L=1800, W=1500, H=2199 | 120 | 700 | |
| GWDL-1800XL-A-768L | 1200×800×800 | L=1800, W=1500, H=2200 | 150 | 850 | |
| 1900 degrees | GWDL-1900XL-A-27L | 300×300×300 | L=900, W=800, H=1650 | 15 | 125 |
| GWDL-1900XL-A-30L | 500×300×200 | L=1000, W=800, H=1550 | 15 | 130 | |
| GWDL-1900XL-A-45L | 500×300×300 | L=1000, W=800, H=1650 | 18 | 140 | |
| GWDL-1900XL-A-64L | 400×400×400 | L=1100, W=900, H=1750 | twenty four | 240 | |
| GWDL-1900XL-A-96L | 600×400×400 | L=1100, W=900, H=1750 | 30 | 260 | |
| GWDL-1900XL-A-125L | 500×500×500 | L=1300, W=1000, H=1849 | 36 | 300 | |
| GWDL-1900XL-A-200L | 800×500×500 | L=1300, W=1000, H=1850 | 40 | 350 | |
| GWDL-1900XL-A-216L | 600×600×600 | L=1100, W=1100, H=2000 | 40 | 400 | |
| GWDL-1900XL-A-270L | 900×600×500 | L=1400, W=1100, H=1850 | 55 | 450 | |
| GWDL-1900XL-A-288L | 800×600×600 | L=1300, W=1100, H=2000 | 60 | 480 | |
| GWDL-1900XL-A-340L | 700×700×700 | L=1600, W=1400, H=2100 | 65 | 500 | |
| GWDL-1900XL-A-360L | 1000×600×600 | L=1600, W=1300, H=2000 | 75 | 550 | |
| GWDL-1900XL-A-490L | 1000×700×700 | L=1600, W=1400, H=2100 | 90 | 650 | |
| GWDL-1900XL-A-512L | 800×800×800 | L=1800, W=1500, H=2199 | 120 | 700 | |
| GWDL-1900XL-A-768L | 1200×800×800 | L=1800, W=1500, H=2200 | 150 | 850 | |
| Note: | 1. All models listed above are in stock. Special models with furnace dimensions can be customized according to customer requirements (delivery time 7-10 days)! | ||||
| 2. Dimensions are in millimeters (mm). The dimensions shown are for reference only; the actual dimensions shall prevail. | |||||
