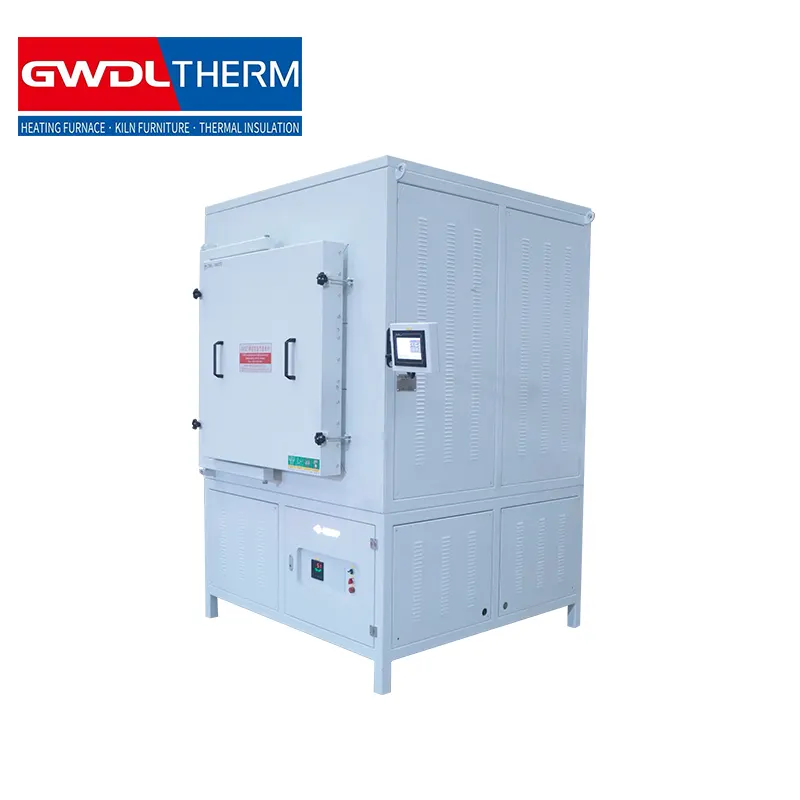

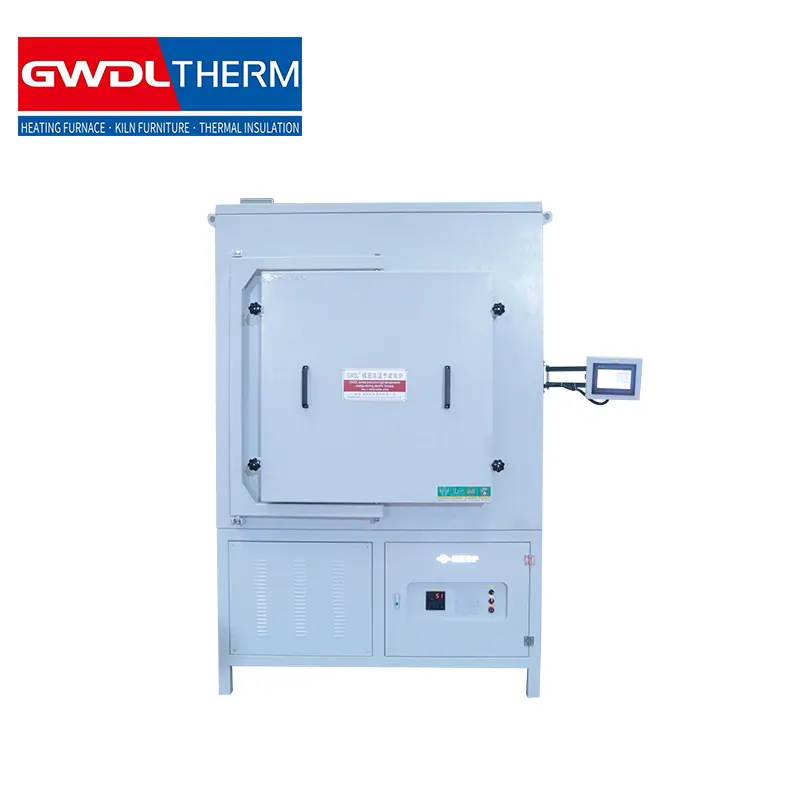

The 1600°C double-door box-type electric furnace is designed for efficient high-temperature heat treatment, offering convenient loading and stable thermal performance.
Product Name: Resistance Furnace / Box Furnace / Muffle Furnace | ||
Model: GWDL-XL | Specifications: 1600 degrees | |
Technical parameters | ||
Maximum operating temperature | 1600 degrees | |
Long-term operating temperature | 1550 degrees | |
Temperature control range | 100-1700 degrees | |
Voltage | 380V 50HZ | |
power | 120KW | |
Furnace dimensions (mm) | Length × Width × Height: 1200 × 800 × 800 | |
Temperature control accuracy | ±1 degree | |
Temperature sensing element | Type B thermocouple | |
Heating element material | silicon molybdenum rod | |
Heating element installation location | Heating on both sides | |
