The GWDL-1000SSR series is a large-scale, high-temperature, energy-efficient rotary electric kiln featuring a split design with separate control system and furnace body. The furnace lining uses vacuum-formed high-purity alumina fiber lightweight boards, while the heating elements are high-temperature silicon carbide rods.
Product Overview:
The GWDL-1000SSR rotary kiln combines high-temperature silicon carbide heating elements with vacuum-formed alumina fiber insulation to deliver efficient, stable heating for industrial applications including ceramics, metallurgy, electronics, and chemicals. The kiln features a split design separating the control system and furnace body for easy maintenance.
Key Features:
Technical Parameters:
| Parameter | Specification |
|---|---|
| Model | GWL-1000SSR-D500-15000 |
| Power Supply | 3-phase, 380V AC |
| Max Operating Temp | 950℃ |
| Continuous Temp | 900℃ |
| Temperature Range | 80℃ to 950℃ |
| Temperature Accuracy | ±1℃ |
| Heating Rate | 1℃/h to 30℃/min adjustable |
| Furnace Tube Size | D500 × 15000mm, wall 10mm |
| Heating Zone Length | 8.5 meters |
| Heating Element | Silicon carbide rods |
| Insulation Layers | Alumina fiber boards & bricks |
| Cooling | Forced air, dual-layer shell |
| Rotation Speed | 1-50 rpm adjustable |
| Tilt Angle | 1-15° adjustable |
| Feeding Method | Stainless steel spiral feeder |
| Exterior Temperature | ≤45℃ |

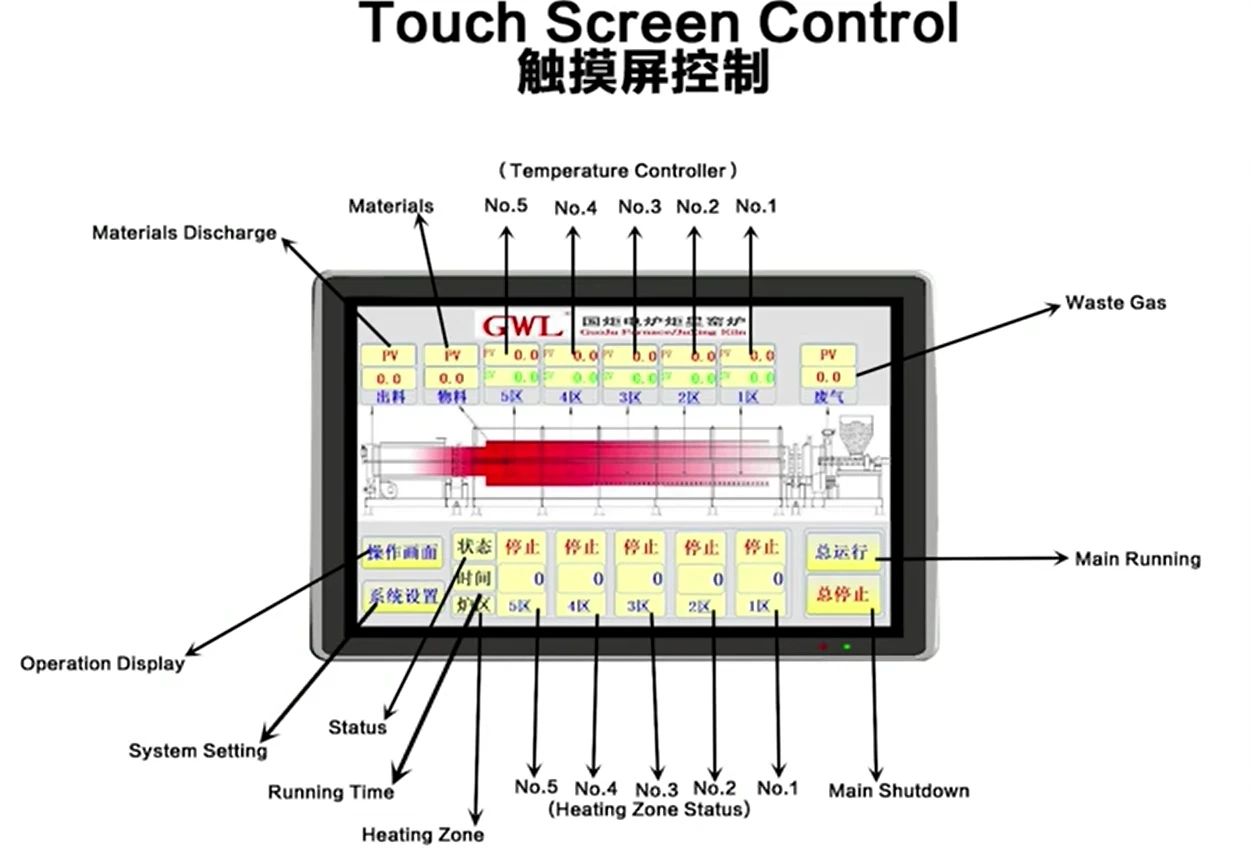

| Control System | PID with programmable segments |
| Safety Features | Over-temp, over-current, phase fail protection |
