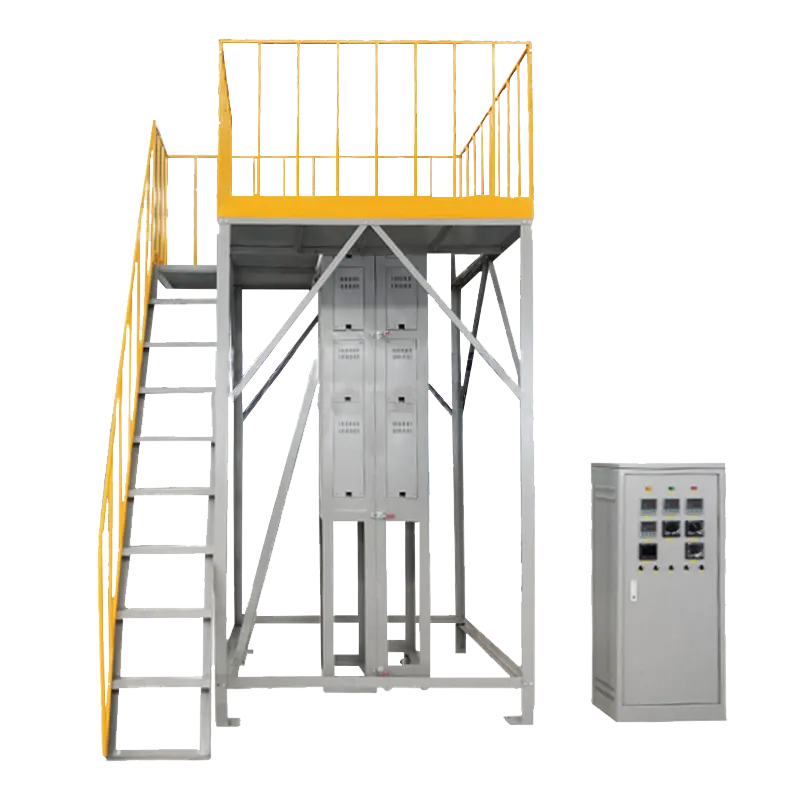

1000℃–1700℃ Large Vertical Split Tube Furnace

Product Description

The GWL-LKQGA series vertical split tube furnace is designed for high-temperature heat treatment, sintering, melting, and material testing in laboratories, universities, and industrial R&D facilities.
It offers a wide working range from 1000℃ to 1700℃, with programmable control, uniform heating, and multi-zone temperature configuration.
The furnace adopts split vertical chamber design, making loading and unloading easier, especially for long samples and batch processing.
Suitable for ceramics, metallurgy, electronics, glass, chemicals, refractories, new materials, and metal/non-metal samples.

Technical Parameters

Item	Specification
Model	GWDL-LKQGA
Long-term Working Temperature	80–1200℃, 1400℃, 1600℃, 1700℃
Maximum Temperature	1250℃, 1450℃, 1650℃, 1750℃
Heating Elements	SiC heating elements (≤1400℃), MoSi₂ heating elements (≤1700℃)
Tube Diameter	30mm / 50mm / 60mm / 80mm / 90mm / 100mm / 110mm / 150mm / 250mm / 300mm / 500mm (customizable)
Heating Zone Length	150mm / 250mm / 300mm / 400mm / 500mm / 600mm / 700mm / 1000mm / 1200mm (customizable)
Temperature Zones	3, 4, 5, 6, 7 zones (independent control available)
Control Accuracy	±1℃
Temperature Uniformity	±1℃ (depending on chamber size)
Heating Rate	1℃/h – 30℃/min adjustable
Working Voltage	380V, 3-phase, customizable
Tube Materials	≤1200℃: Stainless steel, quartz, alumina tubes ≤1700℃: Alumina, SiC, recrystallized SiC, mullite
Refractory Insulation	Multi-layer high-purity alumina fiber, vacuum-formed
Standard Accessories	Heating elements ×2, crucible tongs, gloves, refractory bricks, tube crucible, sealing rings
Atmosphere Options	Vacuum up to -0.1 MPa, multiple gases (O₂, N₂, Ar, H₂, etc.)
Protection	Dual circuit protection: over-temp, over-voltage, over-current, thermocouple & power protection

Product Features

Wide Temperature Range: Covers 1000℃–1700℃ applications for sintering, melting, and material testing.
Vertical Split Design: Easy loading/unloading, ideal for long samples and batch processing.
High Accuracy: ±1℃ control accuracy, ±1℃ uniformity for stable thermal processing.
Programmable Control: Multi-segment programmable PID control, auto heating/cooling, with computer interface.
Flexible Atmosphere: Supports vacuum and multiple gas atmospheres (O₂, N₂, Ar, H₂).
Reliable Safety: Equipped with dual protection systems (temperature, power, thermocouple, current).
Energy Saving: Multi-layer insulation reduces heat loss by over 60% compared with traditional furnaces.
