The 1700°C precision energy-saving bogie furnace is engineered for ultra-high temperature heat treatment, delivering excellent thermal efficiency and stable performance

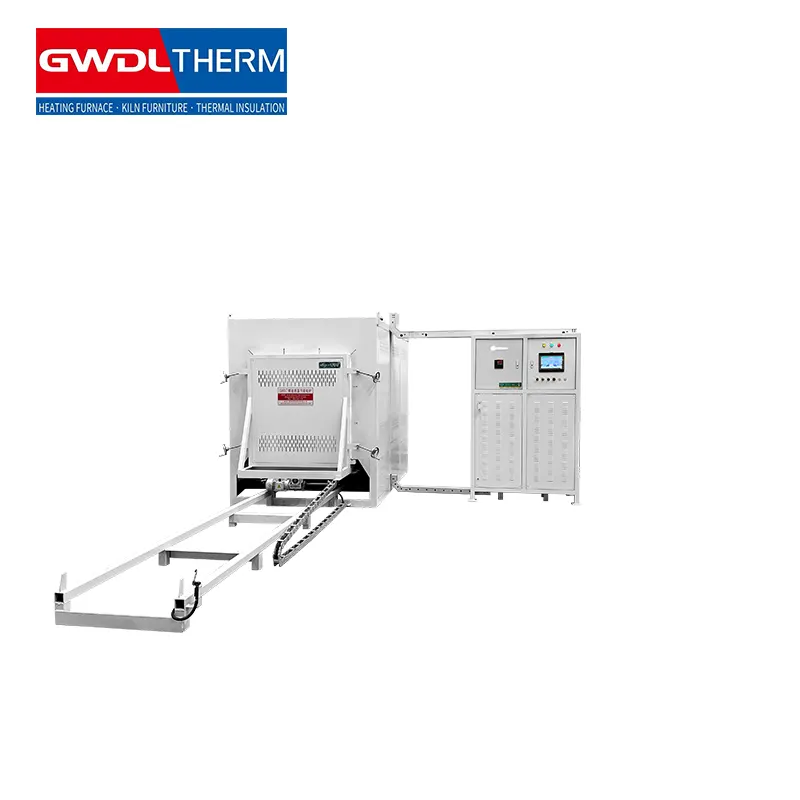

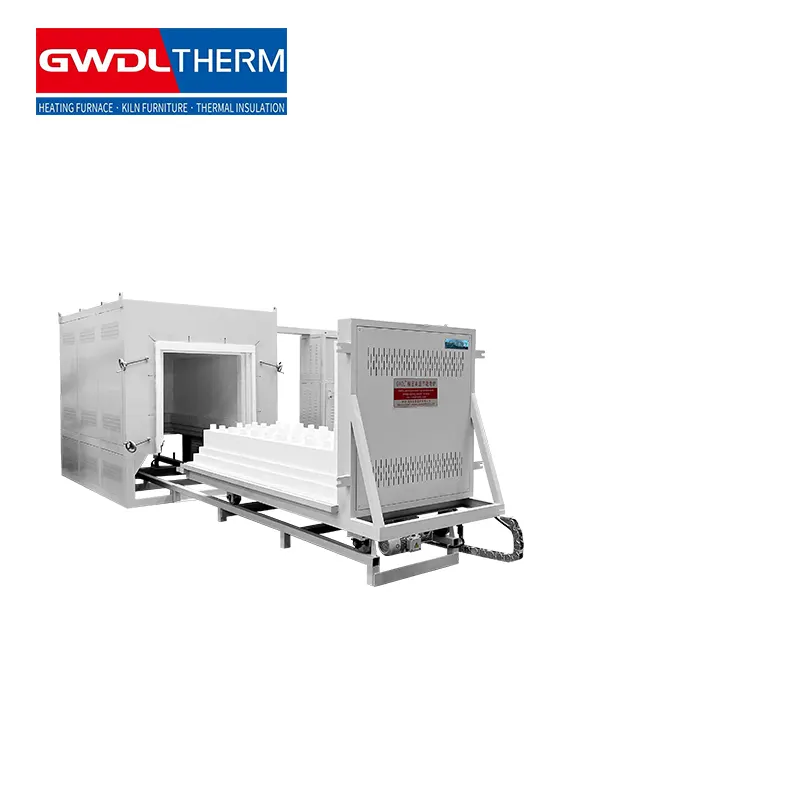

1700°C High-Temperature Precision Bogie Furnace
category parameter | 1700 degrees |
model | GWL-STCY |
Maximum operating temperature | 1750℃ |
Long-term operating temperature | 1700 degrees |
The control range is | 80 to 1700 degrees |
Effective heating zone size | Length × Width × Height: 2000 × 800 × 700 mm |
AC power | 380V |
Design power approximately | 130KW |
Heating element mounting position | Evenly distributed on both sides of the furnace |
Temperature control accuracy | ±1 degree |
Furnace temperature uniformity | ±5 degrees |
heating rate | The heating rate is freely adjustable, with the following range: fastest heating rate 20 degrees per minute (non-linear), slowest heating rate 1 degree per hour (1 degree/h). |
Temperature sensing element | Thermocouple type B, temperature range 0-1820 degrees Celsius |
Dual temperature control | Temperature control on both sides |
Heating element | 1800 type silicon molybdenum rods on both sides of the furnace |
